SELECT A DIAGRAM

01 - Cooktop

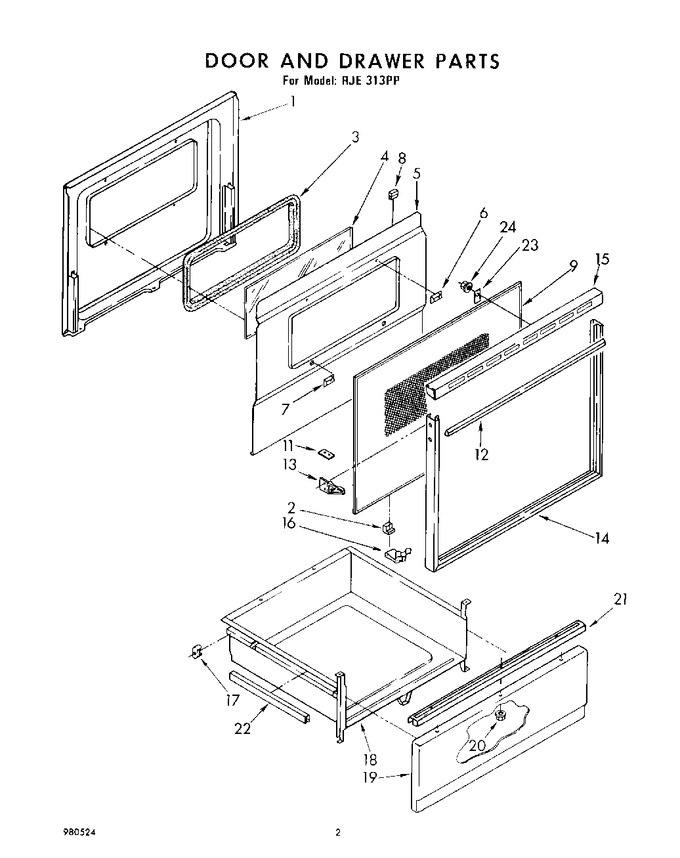

02 - Door And Drawer, Lit/optional


03 - Control Panel


04 - Oven


05 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309029		Screw, 8-15 X 1/2 (2)		Appelez-nous	-
1	338177		Clip (2)		Appelez-nous	-
1	311056		Screw, 10a X 1/2		Appelez-nous	-
1	327862		Liner, Door		Appelez-nous	-
1	254217		Screw, 10a X 3/8 (3)		Appelez-nous	-
2	309152		Cushion, Glas (3)		Appelez-nous	-
3	258711		Seal, Glass		Appelez-nous	-
4	258988		Glass, Inner		Appelez-nous	-
5	307924		Baffle, Insulation		Appelez-nous	-
6	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.08
6	258990		Spacer, Baffle		Appelez-nous	-
7	258990		Spacer, Baffle		Appelez-nous	-
7	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
8	255859		Channel, Rubber		Appelez-nous	-
9	309069		Glass, Outer		Appelez-nous	-
11	310707		Spacer, Door Handle		Appelez-nous	-
12	WP355515		Screw, 8a X 7/8   (Replaces: 355515)				$ 6.90
12	308081		Handle, Oven Door, (includes Illus. 13)		Appelez-nous	-
13	308080		End Cap, Handle				$ 11.10
14	310427		Frame, Door		Appelez-nous	-
15	309055		Fastener, Flat		Appelez-nous	-
15	310428		Top, Door Frame		Appelez-nous	-
16	310706		Clip, Glass (10)		Appelez-nous	-
17	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.08
17	307980		Glide, Rear		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	309923		Panel Drawer (black)		Appelez-nous	-
19	307537		Screw (3)		Appelez-nous	-
20	WP486255		Palnut, 8-32   (Replaces: 308542)				$ 5.54
21	310399		Handle, Drawer		Appelez-nous	-
21	WP912618		Screw, 8d X 3/8   (Replaces: 308541)				$ 6.98
22	309329		Protector, Drawer		Appelez-nous	-
23	310705		Clip (2)		Appelez-nous	-
24	980524		List, Parts		Appelez-nous	-
24	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
24	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
24	978883		Almond		Appelez-nous	-
24	799351		Thinner (1 Gal.)		Appelez-nous	-
24	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
24	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
24	261582		Grease		Appelez-nous	-
24	308494		Installation Instructions		Appelez-nous	-
24	310595		Guide, Use & Care		Appelez-nous	-
24	308500		Book, Cooking Guide		Appelez-nous	-
24	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
24	WP90296		Fastener, Pushnut (2)   (Replaces: 308593)				$ 7.07
24	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
24	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
24	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
24	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
24	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
24	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
24	242829		14 Ga. 150`c (wire, Red)		Appelez-nous	-
24	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
24	242831		Wire (14 Ga. 200 C Red)				$ 342.23
24	242826		14 Ga. 200`c (wire, White)		Appelez-nous	-
24	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
24	242832		14 Ga. 150`c (wire, Yellow)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
