01 - Cooktop
02 - Door And Drawer, Lit/optional
03 - Control Panel
04 - Oven
05 - Section
SELECT A DIAGRAM
New Model Search:

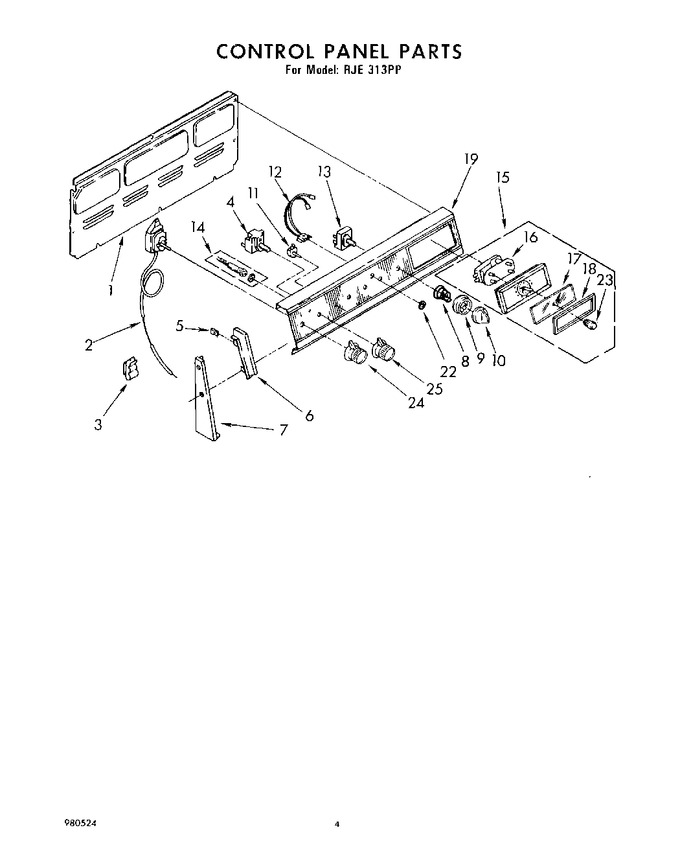

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 1 | 308157 | Cover, Rear |
|
- | |||||
| 2 | 308789 | Thermostat, Oven (alternate) |
|
- | |||||
| 2 | 308483 | Thermostat, Oven (alternate) |
|
- | |||||
| 2 | 487384 | Thermostat, Oven (screw, 6-32 X 1/2) |
|
- | |||||
| 3 | 309211 | Clip, Tube |
|
- | |||||
| 4 | 310348 | Switch, Selector |
|
- | |||||
| 4 | 155023 | Screw, 8-32 X 1/4 (2) |
|
Immediately | $ 7.91 | ||||
| 5 | 98084 | Clip, End Cap |
|
- | |||||
| 6 | 308146 | End Cap, L.h. |
|
- | |||||
| 6 | 308144 | End Cap, R.h. |
|
- | |||||
| 7 | 308858 | End Trim (l.h.) |
|
- | |||||
| 7 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 7 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 7 | 308854 | End Trim (r.h.) |
|
- | |||||
| 8 | 307828 | Spring, Bezel (4) |
|
- | |||||
| 9 | 307456 | Bezel, Control Knob (4) |
|
$ 31.10 | |||||
| 10 | WP307458 | Knob, Control (4) (Replaces: 307458) |
|
$ 17.20 | |||||
| 11 | 241266 | Nut |
|
- | |||||
| 11 | 255335 | Switch, Pushbutton |
|
- | |||||
| 12 | 310327 | Light, Indicator (surface Unit) (includes Illus. 22) |
|
- | |||||
| 13 | WP3149401 | Switch Infinite (alternate) (Replaces: 308452) |
|
$ 134.65 | |||||
| 13 | 5500-287 | Switch Infinite (alternate) (Replaces: 308453) |
|
Immediately | $ 47.15 | ||||
| 13 | 155023 | Switch Infinite (screw, 8-32 X 1/4 (8)) |
|
Immediately | $ 7.91 | ||||
| 13 | 308476 | Switch Infinite (alternate Use W/8`` Surface Unit) |
|
- | |||||
| 14 | 328682 | Light, Indicator (oven) (alternate) |
|
- | |||||
| 14 | 328683 | Light, Indicator (oven) (alternate) |
|
- | |||||
| 15 | 308147 | Clock, Complete (includes 16, 17, 18 & 23) |
|
- | |||||
| 16 | 308442 | Motor, Timer |
|
- | |||||
| 17 | 308441 | Glass, Clock |
|
- | |||||
| 18 | 258851 | Bezel, Knob |
|
$ 32.72 | |||||
| 19 | W11693756 | Screw, 8-18 X 5/8 (2) (Replaces: 357670) |
|
Immediately | $ 12.65 | ||||
| 19 | 307831 | Screw, 8a X 5/8 (4) |
|
- | |||||
| 19 | WP488627 | Screw, 8a X 1/2 (Replaces: 338156) |
|
$ 6.81 | |||||
| 19 | 310684 | Control Panel |
|
- | |||||
| 22 | 309221 | Lens, Red |
|
- | |||||
| 23 | 308440 | Knob, Timer |
|
- | |||||
| 24 | 328709 | Knob, Thermostat |
|
- | |||||
| 25 | 328707 | Knob, Selector |
|
- |
