SELECT A DIAGRAM

01 - Cook Top

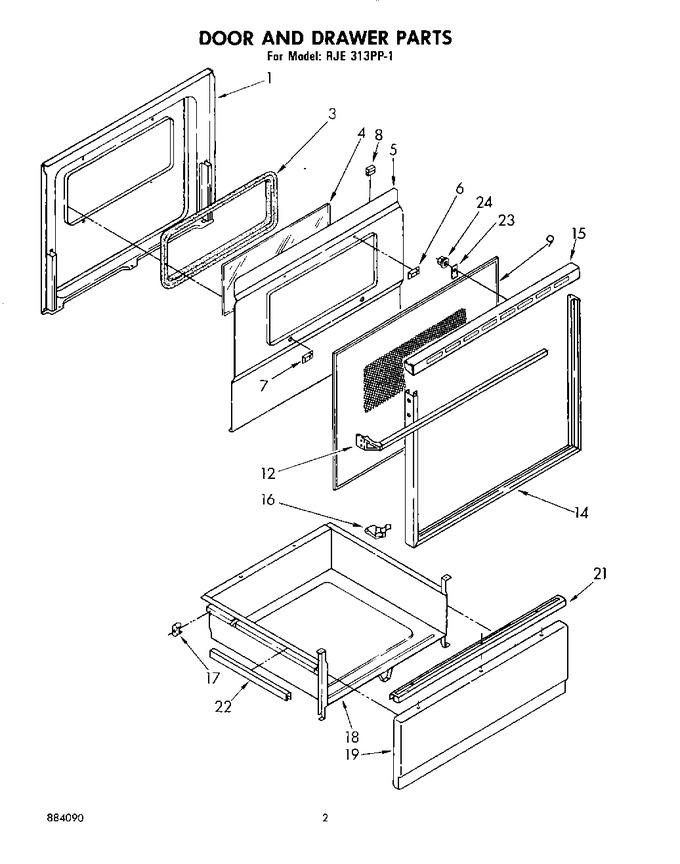

02 - Door And Drawer, Lit/optional


03 - Control Panel


04 - Oven


05 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311506		Clip (2)		Appelez-nous	-
1	329687		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (5)		Appelez-nous	-
1	311056		Screw, 10a X 1/2		Appelez-nous	-
3	258711		Seal, Glass		Appelez-nous	-
4	258988		Glass, Inner		Appelez-nous	-
5	307924		Baffle, Insulation		Appelez-nous	-
6	307748		Screw, 10a X 1/2		Appelez-nous	-
6	258990		Spacer, Baffle		Appelez-nous	-
7	258990		Spacer, Baffle		Appelez-nous	-
7	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
8	312783		Channel, Rubber		Appelez-nous	-
9	309069		Glass, Outer		Appelez-nous	-
12	WP355515		Screw, 8a X 7/8   (Replaces: 355515)				$ 6.90
12	312722		Handle, Oven Door				$ 118.10
14	310427		Frame, Door		Appelez-nous	-
15	310428		Top, Door Frame		Appelez-nous	-
15	WP90296		Fastener, Flat   (Replaces: 90296)				$ 7.07
16	310706		Clip, Glass (10)		Appelez-nous	-
17	307980		Glide, Rear		Appelez-nous	-
17	307748		Screw, 10a X 1/2		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	309923		Panel Drawer (black)		Appelez-nous	-
19	WP488787		Screw, 8-18 X 1/2 (3)   (Replaces: 312566)				$ 9.52
21	313337		Handle, Drawer		Appelez-nous	-
21	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
22	309329		Protector, Drawer		Appelez-nous	-
23	310705		Clip (2)		Appelez-nous	-
24	884090		List, Parts		Appelez-nous	-
24	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
24	799351		Thinner (1 Gal.)		Appelez-nous	-
24	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
24	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
24	261582		Grease		Appelez-nous	-
24	312718		Instructions, Installation		Appelez-nous	-
24	310595		Guide, Use & Care		Appelez-nous	-
24	308500		Book, Cooking Guide		Appelez-nous	-
24	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
24	WP90296		Fastener, Pushnut (2)   (Replaces: 308593)				$ 7.07
24	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
24	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
24	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
24	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
24	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
24	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
24	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
24	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
24	242831		Wire (14 Ga. 200 C Red)				$ 342.23
24	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
24	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
24	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
24	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	285368		Xplatinum (uncut)		Appelez-nous	-
