SELECT A DIAGRAM

01 - Cook Top


02 - Door And Drawer, Lit/optional


03 - Control Panel


04 - Oven


05 - Oven

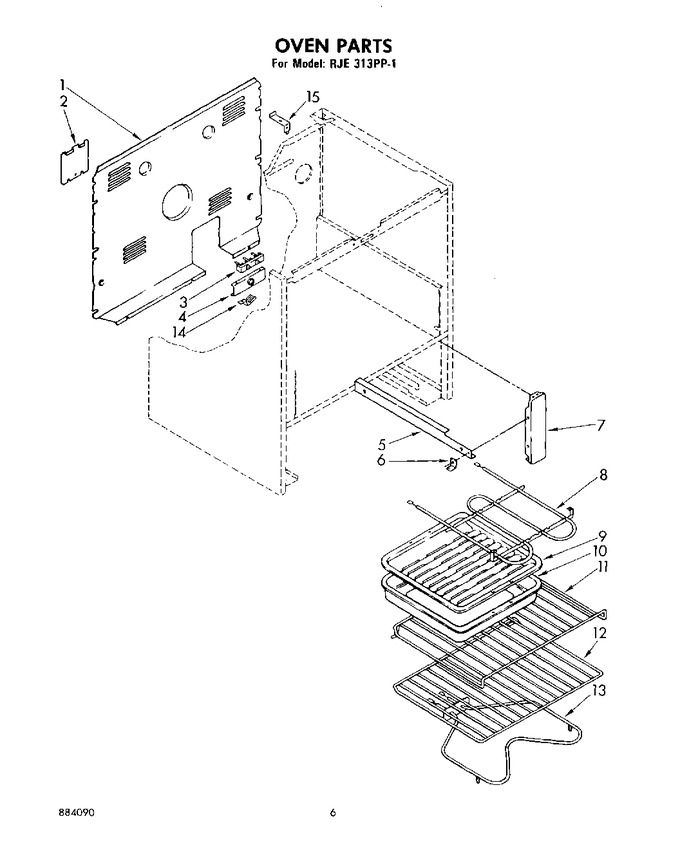

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 7.07
1	307971		Cover, Rear		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
2	307972		Cover, Access		Appelez-nous	-
3	WP112432		Nut (6)   (Replaces: 112432)				$ 7.16
3	98884		Screw, 10-16 X 1 (2)		Appelez-nous	-
3	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
4	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
4	307970		Bracket, Service		Appelez-nous	-
5	307982		Rail, R.h. (includes Illus. 6)		Appelez-nous	-
5	307983		Rail, L.h. (includes Illus. 6)		Appelez-nous	-
6	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
6	307979		Glide, Front (2)		Appelez-nous	-
7	307981		Bracket, Mounting		Appelez-nous	-
8	246127		Unit, Broil (screw, 10-32 X 5/8 (2))		Appelez-nous	-
8	WP660579		Unit, Broil (alternate)   (Replaces: 311714)				$ 140.80
8	WP660579		Unit, Broil (alternate)   (Replaces: 311713)				$ 140.80
9	4396923		Rack, Broiler   (Replaces: 258171)			Immediately	$ 52.04
10	4396923		Pan, Broiler   (Replaces: 310976)			Immediately	$ 52.04
11	308172		Rack, Oven (offset)		Appelez-nous	-
12	308173		Rack, Oven		Appelez-nous	-
13	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
13	WP308180		Unit, Bake   (Replaces: 308180)				$ 96.92
14	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
14	308498		Ground Strap		Appelez-nous	-
15	WP681414		Screw, 10-16 X 1/2 (2) (ground)   (Replaces: 343641)			Immediately	$ 7.07
15	309102		Bracket, Stand-off (2)		Appelez-nous	-
15	16515		Clip				$ 17.60

    View Diagram in Separate Window       Print Part List
