SELECT A DIAGRAM

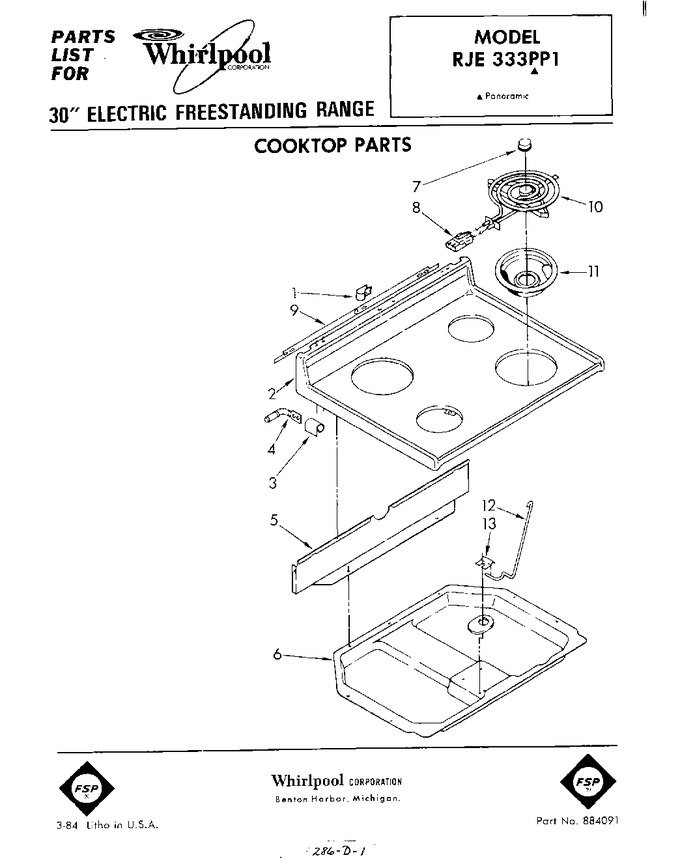

01 - Cooktop


02 - Door And Drawer, Lit/optional


03 - Control Panel


04 - Oven


05 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
1	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
2	309922		Cooktop (chrome)		Appelez-nous	-
3	307965		Bracket, Cooktop		Appelez-nous	-
3	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
4	307966		Hinge Pin, Cooktop		Appelez-nous	-
4	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
5	307973		Shield, Wiring		Appelez-nous	-
5	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
6	307929		Burner Box		Appelez-nous	-
6	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
7	309195		Medallion (4)		Appelez-nous	-
8	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 14.48
8	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
9	309232		Barrier Strip		Appelez-nous	-
10	WP660532		Unit, Surface (6`` L.f. & R.r. (alternate))   (Replaces: 309191)			Immediately	$ 36.90
10	WP660533		Unit, Surface (8`` R.f. & L.r. (alternate) (includes Illus. 7))   (Replaces: 309216)			Immediately	$ 39.47
10	WP660533		Unit, Surface (8`` R.f. & L.r. (alternate))   (Replaces: 309185)			Immediately	$ 39.47
10	WP660532		Unit, Surface (6`` L.f. & R.r. (alternate))   (Replaces: 309249)			Immediately	$ 36.90
11	W10196405RW		Pan (8`` (2))   (Replaces: 308540)			Immediately	$ 18.70
11	WPW10196406		Pan (6`` (2))   (Replaces: 308539)			Immediately	$ 12.05
12	307968		Rod, Cooktop		Appelez-nous	-
13	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
13	307967		Retainer, Cooktop		Appelez-nous	-
