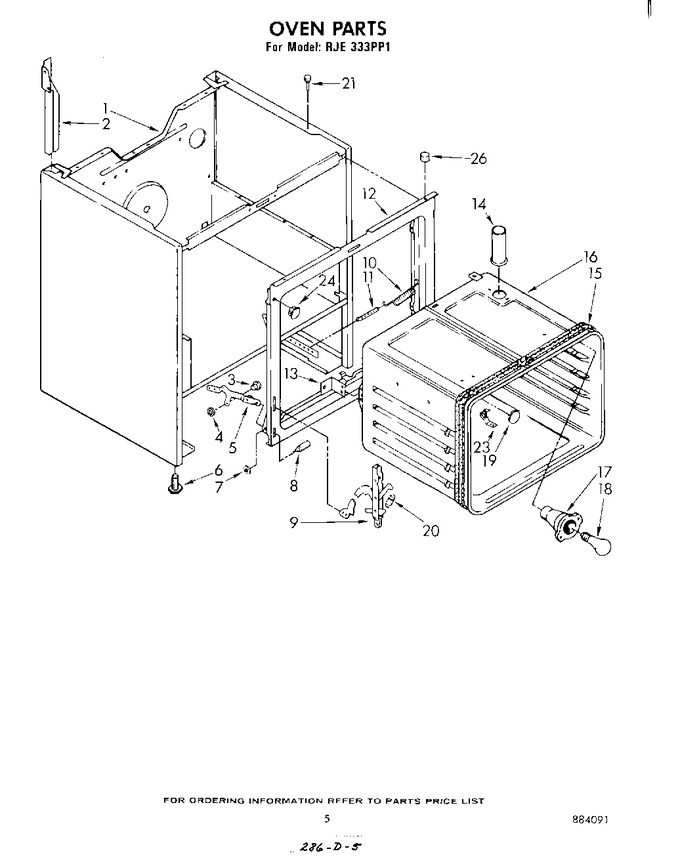

04 - Oven


05 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330092		Main Chassis (platinum)		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
2	308132		Support, Channel (l.h.)		Appelez-nous	-
2	308131		Support, Channel (r.h.)		Appelez-nous	-
3	WP307986		Hinge Pin   (Replaces: 307986)				$ 11.78
4	307594		Ring, Retainer		Appelez-nous	-
5	WP681414		Screw, 10-32 (4)   (Replaces: 343631)			Immediately	$ 7.07
5	327891		Hinge (l.h.)		Appelez-nous	-
5	327890		Hinge (r.h.)		Appelez-nous	-
6	WPW10058460		Leg Leveling (4)   (Replaces: 312701)			Immediately	$ 7.07
7	308306		Pushnut		Appelez-nous	-
8	307985		Pin, Hinge				$ 29.54
9	329712		Channel Arm		Appelez-nous	-
10	308127		Spring, Oven Door				$ 11.75
11	WP308125		Anchor, Spring   (Replaces: 308125)				$ 10.94
12	WP681414		Screw, 10-16 X 1/2 (15)   (Replaces: 343641)			Immediately	$ 7.07
12	327886		Frame, Front		Appelez-nous	-
13	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
13	311220		Bracket, Oven Mounting (2)		Appelez-nous	-
14	307960		Vent, Oven		Appelez-nous	-
14	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
15	309107		Seal, Oven				$ 63.50
16	311056		Screw, 10a X 1/2		Appelez-nous	-
16	329001		Oven		Appelez-nous	-
17	308043		Socket, Lamp (screw, 10-12 X 5/8 (2))		Appelez-nous	-
17	307856		Socket, Lamp (alternate)		Appelez-nous	-
17	310208		Socket, Lamp (alternate)			Immediately	$ 36.34
18	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
19	257314		Plug Button		Appelez-nous	-
20	308207		Spring, Door Stop		Appelez-nous	-
21	238614		Bumper (2)				$ 72.68
23	98005642		Clip, Therm Bulb (2)   (Replaces: 258139)			Immediately	$ 74.64
24	308535		Plug Button		Appelez-nous	-
26	311909		Locator, Cooktop (2)		Appelez-nous	-
26	310210		Screw, 8-32 X 5/16 (2)		Appelez-nous	-
