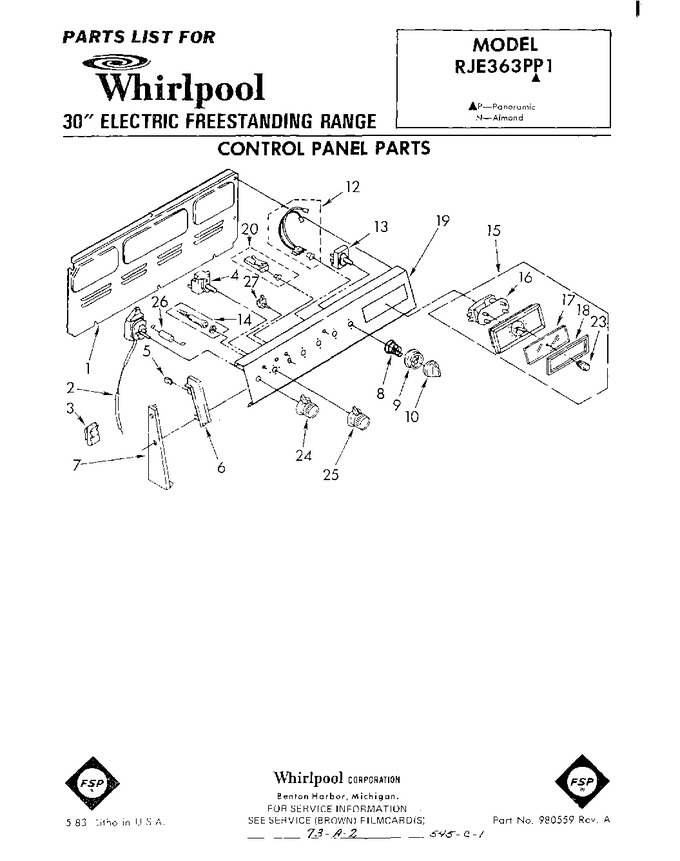

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.07
1	308157		Cover, Rear		Appelez-nous	-
2	310016		Thermostat, Oven		Appelez-nous	-
2	487384		Screw, 6-32 X 1/2		Appelez-nous	-
3	309211		Clip, Tube		Appelez-nous	-
4	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 6.61
4	310009		Switch, Selector		Appelez-nous	-
5	98084		Clip, End Cap		Appelez-nous	-
6	308144		End Cap, R.h.		Appelez-nous	-
6	308146		End Cap, L.h.		Appelez-nous	-
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
7	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
7	308858		End Trim (l.h.)		Appelez-nous	-
7	308854		End Trim (r.h.)		Appelez-nous	-
8	307828		Spring, Bezel (4)		Appelez-nous	-
9	307456		Bezel, Control Knob (4)				$ 31.10
10	WP307458		Knob, Control (4)   (Replaces: 307458)				$ 17.20
12	310327		Light, Indicator (surface Unit) (includes Lens)		Appelez-nous	-
13	155023		Switch Infinite (screw, 8-32 X 1/4 (8))			Immediately	$ 7.91
13	5500-287		Switch, Infinite (use W/8`` Surface Unit)   (Replaces: 308453)			Immediately	$ 47.15
13	WP3149401		Switch, Infinite (use W/6`` Surface Unit)   (Replaces: 308452)				$ 134.65
14	328683		Light, Indicator (oven) (alternate (includes Lens))		Appelez-nous	-
14	328682		Light, Indicator (oven) (alternate)		Appelez-nous	-
15	3L530		Clock, Complete (includes 16, 17, 18 & 23)   (Replaces: 310415)				$ 11.90
16	308443		Motor, Timer		Appelez-nous	-
17	258850		Glass, Clock		Appelez-nous	-
18	258851		Bezel, Knob				$ 32.72
19	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 357670)			Immediately	$ 12.65
19	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 6.81
19	311272		Control Panel		Appelez-nous	-
19	307831		Screw, 8a X 5/8 (4)		Appelez-nous	-
20	310962		Light, Indicator (includes Lens)		Appelez-nous	-
23	308440		Knob, Timer		Appelez-nous	-
24	328709		Knob, Thermostat		Appelez-nous	-
25	328707		Knob, Selector		Appelez-nous	-
26	328891		Resistor & Terminal		Appelez-nous	-
27	255335		Switch, Pushbutton		Appelez-nous	-
