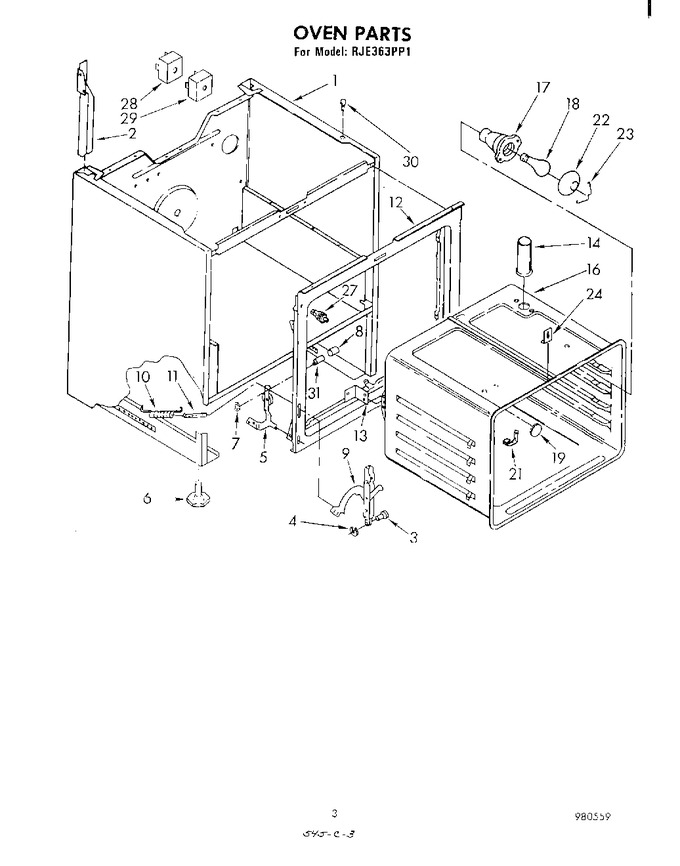

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 327875 | Main Chassis (almond) |
|
- | |||||
| 2 | 308132 | Support, Channel (l.h.) |
|
- | |||||
| 2 | 308131 | Support, Channel (r.h.) |
|
- | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 3 | WP307986 | Hinge Pin (Replaces: 307986) |
|
$ 11.78 | |||||
| 4 | 307594 | Ring, Retainer |
|
- | |||||
| 5 | WP681414 | Screw, 10-32 (4) (Replaces: 343631) |
|
Immediately | $ 7.07 | ||||
| 5 | 327890 | Hinge (r.h.) |
|
- | |||||
| 5 | 327891 | Hinge (l.h.) |
|
- | |||||
| 6 | WP233550 | Foot, Dryer (4) (Replaces: 233550) |
|
$ 7.16 | |||||
| 7 | 308306 | Pushnut (2) |
|
- | |||||
| 8 | 307985 | Pin, Hinge (2) |
|
$ 29.54 | |||||
| 9 | 327892 | Channel, Arm (2) |
|
- | |||||
| 10 | WP308126 | Spring, Oven Door (Replaces: 308126) |
|
$ 38.15 | |||||
| 11 | WP308125 | Anchor, Spring (Replaces: 308125) |
|
$ 10.94 | |||||
| 12 | WP681414 | Screw, 10-16 X 1/2 (15) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 12 | 327886 | Frame, Front |
|
- | |||||
| 13 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 13 | 311220 | Bracket, Oven (mounting) |
|
- | |||||
| 13 | W10841059 | Screw, 10-16 X 3/4 (2) (Replaces: 98445) |
|
- | |||||
| 14 | WP308685 | Screw, 10a X 1/2 (2) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 14 | 307961 | Vent, Oven |
|
- | |||||
| 16 | 311056 | Screw, 10a X 1/2 |
|
- | |||||
| 16 | 329002 | Oven |
|
- | |||||
| 17 | 307856 | Socket, Lamp (alternate) |
|
- | |||||
| 17 | 310208 | Socket, Lamp (alternate) |
|
Immediately | $ 36.34 | ||||
| 17 | 308043 | Socket, Lamp (screw, 10-12 X 5/8) |
|
- | |||||
| 18 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 19 | 257314 | Plug Button |
|
- | |||||
| 21 | 98005642 | Clip, Therm Bulb (2) (Replaces: 258139) |
|
Immediately | $ 74.64 | ||||
| 22 | 308039 | Cover, Light |
|
- | |||||
| 23 | 308038 | Retainer, Light |
|
- | |||||
| 24 | 307964 | Clip, Oven |
|
- | |||||
| 27 | 310345 | Switch, Door |
|
$ 94.86 | |||||
| 28 | 310643 | Switch, Broil |
|
- | |||||
| 29 | 310644 | Switch, Bake |
|
- | |||||
| 30 | 238614 | Bumper (2) |
|
$ 72.68 | |||||
| 31 | 309111 | Snubber, Door (2) |
|
- |
