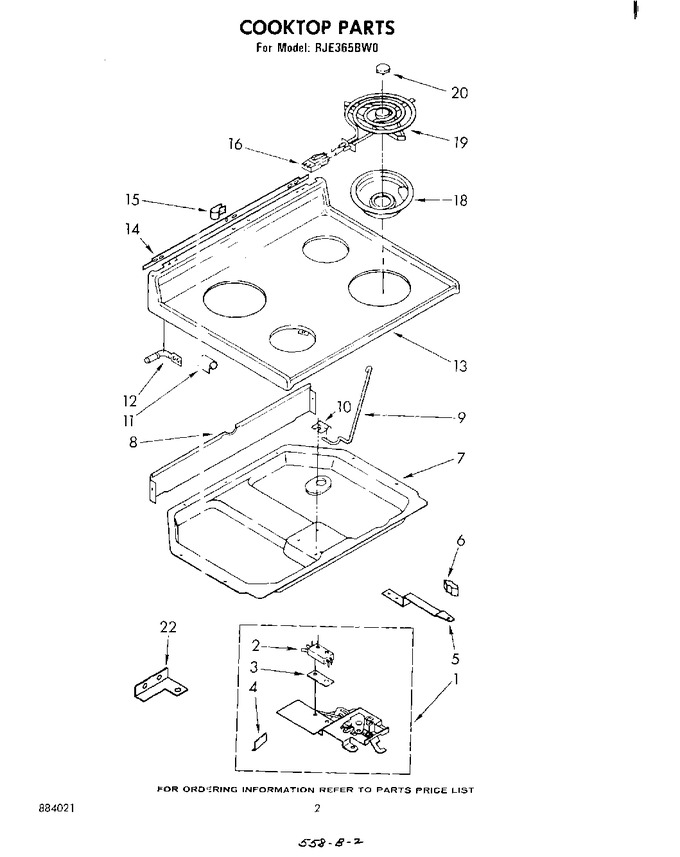

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
1	328585		Latch Assembly (pyro)		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Latch Terminal		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
5	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 6.81
5	311056		Screw (2)		Appelez-nous	-
5	307976		Handle, Latch		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
6	307977		Knob, Latch		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (6)   (Replaces: 309112)				$ 7.04
7	307929		Burner Box		Appelez-nous	-
8	307973		Shield, Wiring		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
9	WP681414		Screw, 10-32 Hex (ground) (3)   (Replaces: 343631)			Immediately	$ 7.07
9	307968		Rod, Cooktop		Appelez-nous	-
10	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
10	307967		Retainer, Cooktop		Appelez-nous	-
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
12	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
12	307966		Pin, Cooktop (2)		Appelez-nous	-
13	307864		Cooktop (coffee)		Appelez-nous	-
13	307866		Cooktop (white)		Appelez-nous	-
13	313166		Cooktop (platinum)		Appelez-nous	-
13	313165		Cooktop (toast)		Appelez-nous	-
13	307871		Cooktop (almond)		Appelez-nous	-
13	307863		Cooktop (golden Harvest)		Appelez-nous	-
13	307865		Cooktop (new Avocado)		Appelez-nous	-
14	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
14	309232		Barrier Strip		Appelez-nous	-
15	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 6.98
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
16	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 14.48
16	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
18	WPW10196406		Reflector Pan (6`` (2))   (Replaces: 308539)			Immediately	$ 12.05
18	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 308540)			Immediately	$ 18.70
19	WP660532		Unit, Surface (6`` L.f. & R.r. (alternate) (2))   (Replaces: 309334)			Immediately	$ 36.90
19	WP660533		Unit, Surface (8`` R.f. & L.r. (alternate) (2) (includes Illus. 19))   (Replaces: 309340)			Immediately	$ 39.47
19	WP660533		Unit, Surface (8`` R.f. & L.r. (alternate) (2))   (Replaces: 309214)			Immediately	$ 39.47
19	WP660532		Unit, Surface (6`` L.f. & R.r. (alternate) (2))   (Replaces: 309250)			Immediately	$ 36.90
20	309195		Medallion (4)		Appelez-nous	-
22	307748		Screw, 10a X 1/2		Appelez-nous	-
22	312320		Shield, Insulation		Appelez-nous	-
