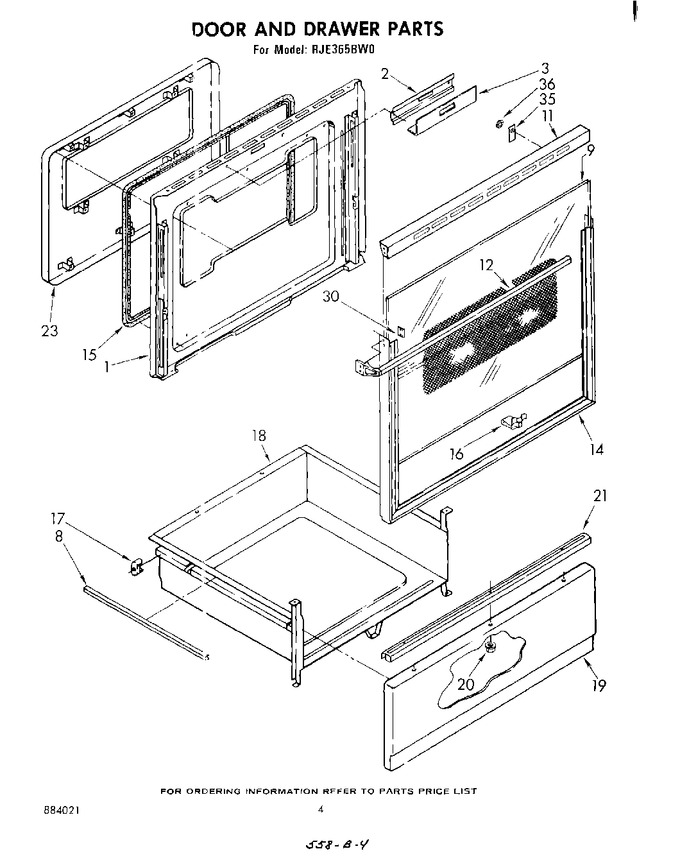

SELECT A DIAGRAM

01 - Control Panel


02 - Cook Top


03 - Door And Drawer


04 - Oven , Literature And Optional


05 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329694		Liner, Door		Appelez-nous	-
1	338177		``j`` Clip (2)		Appelez-nous	-
1	WP308685		Screw, 10a X 1/2 (9)   (Replaces: 253549)			Immediately	$ 7.08
2	311056		Screw, 10a X 1/2 (2)		Appelez-nous	-
2	311054		Screw (2)		Appelez-nous	-
2	308033		Channel, Latch		Appelez-nous	-
3	310056		Shield, Insulation		Appelez-nous	-
8	309329		Protector, Drawer (2)		Appelez-nous	-
9	00573829		Glass, Outer   (Replaces: 310655)			Immediately	$ 27.48
11	307748		Screw, 10a X 1/2 (2) (black)		Appelez-nous	-
11	310784		Frame, Door Top		Appelez-nous	-
12	307748		Screw, (4)		Appelez-nous	-
12	312722		Handle, Oven Door				$ 118.10
14	310427		Frame, Door		Appelez-nous	-
15	311904		Seal, Fiberglass		Appelez-nous	-
16	310706		Clip, Glass (8)		Appelez-nous	-
17	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
17	307980		Glide, Rear (2)		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	313171		Panel, Drawer (toast)		Appelez-nous	-
19	307537		Panel, Drawer (screw (3))		Appelez-nous	-
19	309923		Panel Drawer (black)		Appelez-nous	-
19	307937		Panel, Drawer (coffee)		Appelez-nous	-
19	307938		Panel, Drawer (golden Harvest)		Appelez-nous	-
19	307939		Panel, Drawer (almond)		Appelez-nous	-
19	313172		Panel, Drawer (platinum)		Appelez-nous	-
19	307935		Panel Drawer (white)		Appelez-nous	-
19	307936		Panel, Drawer (new Avocado)		Appelez-nous	-
20	WP486255		Palnut, 8-32   (Replaces: 308542)				$ 5.54
21	307956		Handle, Drawer		Appelez-nous	-
21	WP912618		Screw, 8d X 3/8 (3)   (Replaces: 312578)				$ 6.98
23	328546		Panel, Inner		Appelez-nous	-
30	311506		Clip (2)		Appelez-nous	-
35	310705		Clip (2)		Appelez-nous	-
36	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
