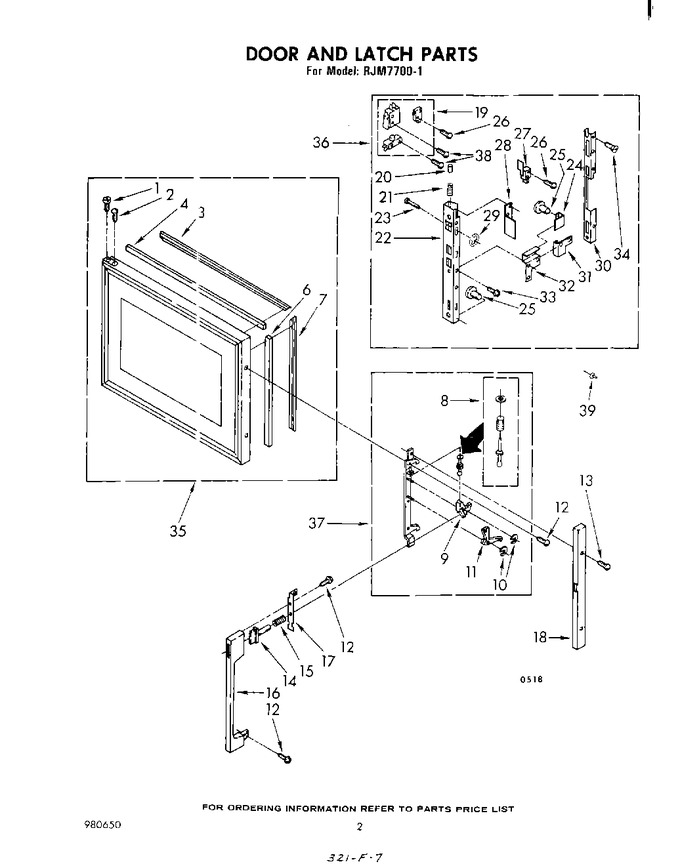

02 - Door And Latch


03 - Cabinet, Hinge, And Stirrer , Literature


04 - Magnetron And Air Flow


05 - Control Panel


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10068250		Screw, 8-32 X 5/16 (2)   (Replaces: 311776)				$ 3.66
2	WPW10068250		Screw, 8-32 X 19/64 (6)   (Replaces: 311777)				$ 3.66
3	311340		Retainer, Top & Bottom Seals (2)		Appelez-nous	-
4	311342		Seal, Top & Bottom (2) (alternate)		Appelez-nous	-
4	311634		Seal, Top & Bottom (2) (alternate)		Appelez-nous	-
6	311343		Seal Sides (2) (alternate)		Appelez-nous	-
6	311635		Seal Sides (2) (alternate)		Appelez-nous	-
7	311341		Retain, Side Seal (2)		Appelez-nous	-
8	832797		Plunger, Latch		Appelez-nous	-
9	310119		Cam, Latch		Appelez-nous	-
10	WPY014874		Ring, ``e`` (2)   (Replaces: 310386)				$ 6.98
11	310120		Lever, Latch Cam		Appelez-nous	-
12	WP489128		Xscrew, 8-32 X 7/16   (Replaces: 310209)				$ 9.79
13	310210		Screw, 8-32 X 9/32		Appelez-nous	-
14	310112		Button, Door Handle		Appelez-nous	-
15	310197		Spring, Door Handle		Appelez-nous	-
16	310110		Handle, Door		Appelez-nous	-
17	310111		Bracket, Door Handle		Appelez-nous	-
18	310125		End Cap, Door		Appelez-nous	-
19	832811		Switch Kit, Door (kit Contains Primary, Monitor & Secondary Switches. All Three (3) Switches Must Be		Appelez-nous	-
20	310124		Damper, Spring		Appelez-nous	-
21	310199		Spring, Interlock		Appelez-nous	-
23	307603		Pin, Roller (3)		Appelez-nous	-
24	310330		Barrier, Visibility		Appelez-nous	-
25	310951		Rivet, Accordian (5)		Appelez-nous	-
26	310211		Screw, 4-40 X 1 (2)		Appelez-nous	-
27	310149		Switch, Light		Appelez-nous	-
28	310154		Insulator, Light & Monitor Switch		Appelez-nous	-
29	307605		Ring, Retaining (3)		Appelez-nous	-
31	307611		Insulator, Primary Switch		Appelez-nous	-
32	310148		Bracket, Primary Switch		Appelez-nous	-
33	310629		Screw, 6-32 X 3/8 (2)		Appelez-nous	-
34	309080		Screw, 8-32 X 3/8 (2) (ground Wire)		Appelez-nous	-
35	329430		Door, Complete		Appelez-nous	-
36	328655		Interlock Assembly		Appelez-nous	-
37	328740		Latch, Door		Appelez-nous	-
38	98106		Screw, Switch Mounting (4)		Appelez-nous	-
39	311928		Rivet, Pop (3)				$ 5.33
