SELECT A DIAGRAM

02 - Door And Latch

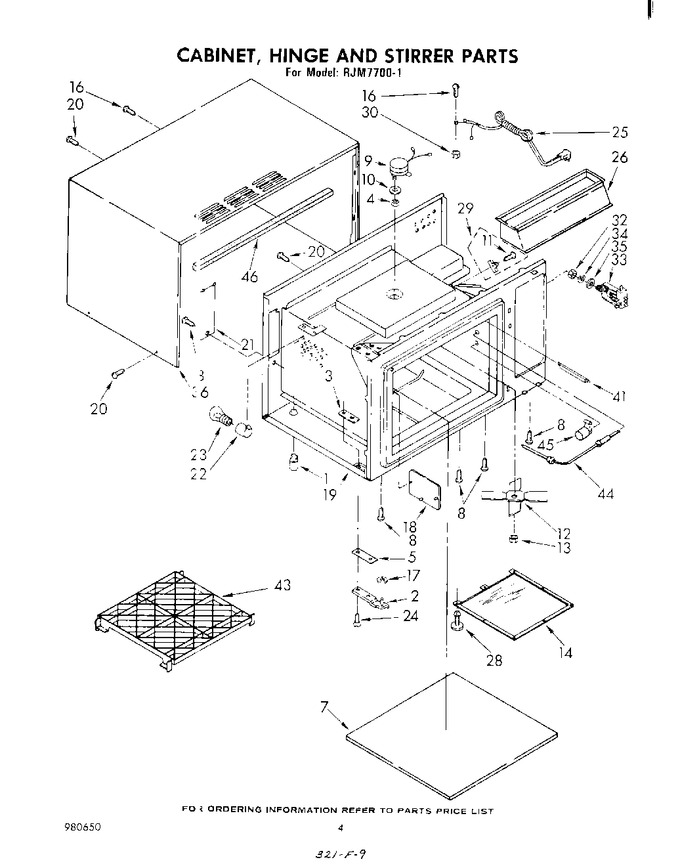

03 - Cabinet, Hinge, And Stirrer , Literature


04 - Magnetron And Air Flow


05 - Control Panel


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307540		Foot, Mounting		Appelez-nous	-
2	329070		Hinge Door (top)		Appelez-nous	-
2	329071		Hinge Door (bottom)		Appelez-nous	-
3	311371		Plate, Hinge (2) (top & Bottom)		Appelez-nous	-
4	309768		Nut		Appelez-nous	-
5	311991		Hinge, Shim Locking (2)		Appelez-nous	-
7	311058		Base, Ceramic (alternate (install W/ Silastic No.482338))		Appelez-nous	-
7	309145		Base, Ceramic (alternate)		Appelez-nous	-
8	254217		Screw, 10a X 3/8		Appelez-nous	-
9	311515		Motor, Stirrer (alternate)		Appelez-nous	-
9	310950		Motor, Stirrer (alternate)		Appelez-nous	-
10	311245		Washer, Internal Lock		Appelez-nous	-
11	246131		Screw, 6a X 3/8		Appelez-nous	-
12	309976		Stirrer 4-blade		Appelez-nous	-
13	307555		Nut, Hex (1/4-20)		Appelez-nous	-
14	309441		Cover, Stirrer		Appelez-nous	-
16	258857		Screw, 10-32 X 1/2		Appelez-nous	-
17	307539		Washer, Flat (2)		Appelez-nous	-
18	307516		Cover, Light		Appelez-nous	-
20	307748		Screw, 10a X 1/2		Appelez-nous	-
21	307512		Cover, Lamp		Appelez-nous	-
22	307519		Socket, Snap-in		Appelez-nous	-
23	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
24	311912		Screw, 10 X 32 (4) (oval Head)		Appelez-nous	-
25	311543		Cord, Power (alternate)		Appelez-nous	-
25	310900		Cord, Power (alternate)		Appelez-nous	-
26	309444		Baffle, Air Exhaust		Appelez-nous	-
28	310423		Fastener, Stirrer Cover (8)		Appelez-nous	-
29	309279		Fuse, Thermal		Appelez-nous	-
30	309487		Nut, Hex (10-32)		Appelez-nous	-
32	311137		Nut, Probe Flange		Appelez-nous	-
33	309654		Jack, Probe		Appelez-nous	-
34	311245		Washer, Internal Lock		Appelez-nous	-
35	309769		Washer Probe		Appelez-nous	-
36	307510		Wrapper, Cabinet		Appelez-nous	-
41	309437		Cover, Rivet		Appelez-nous	-
43	311318		Rack, Oven		Appelez-nous	-
44	312174		Probe & Plug, Temperature (alternate)		Appelez-nous	-
44	311439		Probe & Plug, Temperature (alternate)		Appelez-nous	-
45	311286		Support, Shelf (4)		Appelez-nous	-
46	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
46	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
46	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
46	242831		Wire (14 Ga. 200 C Red)				$ 342.23
46	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
46	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
46	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
46	308292		Seal, Foam (3/8 X 1/2 X 10``)		Appelez-nous	-
46	308294		Seal, Foam (1/8 X 1/4 X 20``)		Appelez-nous	-
46	308295		Seal, Foam (1/8 X 1/2 X 15-1/4``)		Appelez-nous	-
46	311596		Tech Sheet (service Information)		Appelez-nous	-
46	310848		Cookbook (microwave)		Appelez-nous	-
46	307843		Instructions, Installation		Appelez-nous	-
46	311489		Guide, Use & Care		Appelez-nous	-
46	310929		Guide, Oven Rack Cooking		Appelez-nous	-
46	980650		List, Repair Parts		Appelez-nous	-
46	WP261869		Paint, Touch-up Citrine White (1/2 Oz.)   (Replaces: 261869)				$ 23.85
46	261900		Paint, Spray (citrine White (6 Oz.))				$ 51.34
46	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
46	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
46	832765		30`` Trim Kit (rck703)		Appelez-nous	-
46	261940		27`` Trim Kit (rck707)		Appelez-nous	-
46	832763		Wall Mount Kit (rck710)		Appelez-nous	-
46	832790		Grill & Trim Kit (rck711)		Appelez-nous	-
46	832769		Bookcase (rck713)		Appelez-nous	-
46	328022		Browning Tray		Appelez-nous	-
46	832810		Cabinet, Cookbook Storage (rck901)		Appelez-nous	-
46	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
46	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
46	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
46	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
46	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
46	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
