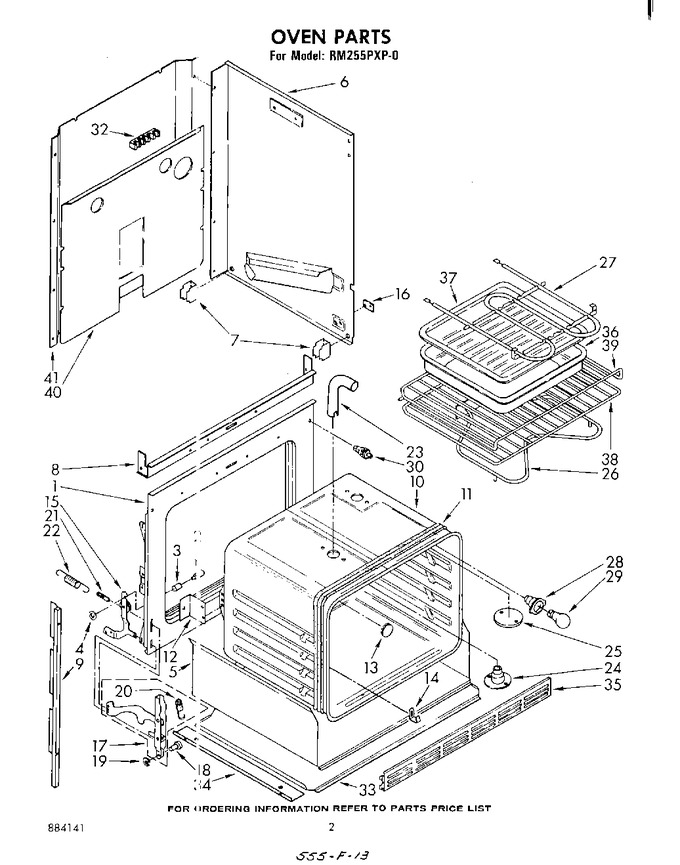

02 - Oven


03 - Cabinet And Airflow


04 - Magnetron And Air Flow


05 - Cabinet And Stirrer


06 - Door And Latch


07 - Control Panel


08 - Oven Door


09 - Wiring Harness


10 - Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328747		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	310770		Insulation Tray		Appelez-nous	-
6	311009		Side Wrapper (left Side)		Appelez-nous	-
6	311006		Side Wrapper (right Side)		Appelez-nous	-
6	WP308685		Side Wrapper (screw, 10a X 1/2 (14))   (Replaces: 253549)			Immediately	$ 7.08
7	311774		Support, Side Wrapper (4)		Appelez-nous	-
7	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
8	310693		Baffle, Top Insulation		Appelez-nous	-
8	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
9	WP308685		Screw, 10a X 1/2 (8)   (Replaces: 253549)			Immediately	$ 7.08
9	310689		Side Trim R.s.		Appelez-nous	-
9	310685		Side Trim L.s.		Appelez-nous	-
10	311056		Screw (3)		Appelez-nous	-
10	328757		Oven, 30`` Continuous Clean		Appelez-nous	-
11	309107		Heat Seal				$ 63.50
12	246127		Screw, 10-32 X 5/8 (6)		Appelez-nous	-
12	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
13	257314		Plug Button		Appelez-nous	-
14	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
15	328801		Hinge Ear, R.h.		Appelez-nous	-
15	328802		Hinge Ear, L.h.		Appelez-nous	-
16	310659		Plate, Side Panel (2)		Appelez-nous	-
16	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
17	329713		Channel Arm (2)		Appelez-nous	-
18	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
19	307594		Retainer Ring (2)		Appelez-nous	-
20	311092		Spring, Door Stop (2)		Appelez-nous	-
21	WP308125		Anchor, Spring (2)   (Replaces: 311897)				$ 10.94
22	308127		Spring, Oven Door (2)				$ 11.75
23	312697		Tube, Vent		Appelez-nous	-
24	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
24	310840		Eliminator, Smoke		Appelez-nous	-
24	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
25	310662		Plate, Cover		Appelez-nous	-
25	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
26	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
26	WP308180		Unit, Bake (240v)   (Replaces: 308180)				$ 96.92
26	WP312309		Unit, Bake (208v)   (Replaces: 312309)				$ 157.54
27	WP660579		Unit, Broil (240v) (alt.)   (Replaces: 311713)				$ 140.80
27	246127		Screw, 10-32 X 5/8		Appelez-nous	-
27	WP660579		Unit, Broil (240v) (alt.)   (Replaces: 311714)				$ 140.80
27	WP660579		Unit, Broil (240v)   (Replaces: 660579)				$ 140.80
28	310208		Socket, Oven Light (alt.)			Immediately	$ 36.34
28	307856		Socket, Oven Light (alt.)		Appelez-nous	-
28	660556		Socket, Oven Light		Appelez-nous	-
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
30	310345		Switch, Door				$ 94.86
32	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
32	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
32	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
33	310458		Cover, Bottom		Appelez-nous	-
34	311592		Angle, Support (2)		Appelez-nous	-
34	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
35	309029		Screw, Black 8-15 X 1/2 (3)		Appelez-nous	-
35	310668		Grill, Bottom				$ 556.11
36	4396923		Broil Pan   (Replaces: 310976)			Immediately	$ 52.04
37	4396923		Grid, Broil Pan   (Replaces: 258171)			Immediately	$ 52.04
38	308173		Rack, Oven (straight)		Appelez-nous	-
39	308172		Rack, Oven (offset)		Appelez-nous	-
40	WP308685		Screw, 10a X 1/2 (6)   (Replaces: 253549)			Immediately	$ 7.08
40	310459		Panel, Back		Appelez-nous	-
41	WP308685		Screw, 10a X 1/2 (12)   (Replaces: 253549)			Immediately	$ 7.08
41	311012		Cover, Rear		Appelez-nous	-
	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
	312308		Unit, Broil (208v)		Appelez-nous	-
