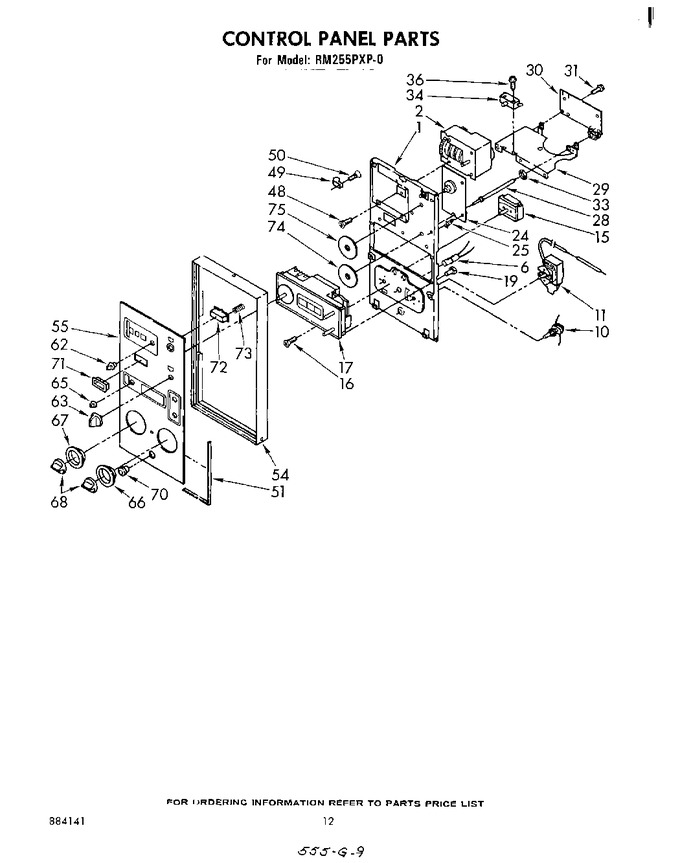

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312248		Screw, 8-32 X 1/2		Appelez-nous	-
1	313139		Bracket, Control Mounting		Appelez-nous	-
2	254217		Screw, 10a X 3/8		Appelez-nous	-
2	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
2	313015		Timer, Digital		Appelez-nous	-
6	313494		Light, Indicator (3)		Appelez-nous	-
10	311441		Switch, Push		Appelez-nous	-
10	311245		Washer		Appelez-nous	-
11	310863		Thermostat (alt.)		Appelez-nous	-
11	660582		Thermostat		Appelez-nous	-
11	311497		Thermostat (alt.)		Appelez-nous	-
15	310866		Switch, Selector		Appelez-nous	-
16	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
17	313520		Timer, Digtial		Appelez-nous	-
19	309645		Nut, Extension (4)		Appelez-nous	-
24	61501		P.c. Board (temp Control)				$ 59.99
25	313087		Support (4)		Appelez-nous	-
28	313345		Shaft, Potentiometer		Appelez-nous	-
29	313344		Bracket, P.c. Board		Appelez-nous	-
30	329907		Board, Power Control		Appelez-nous	-
31	309080		Screw (2)		Appelez-nous	-
33	307640		Palnut		Appelez-nous	-
34	310162		Switch, Push Start		Appelez-nous	-
36	98106		Screw		Appelez-nous	-
48	254225		Screw, 8bt X 1/4 (3)		Appelez-nous	-
49	WP308605		Strain Relief   (Replaces: 308604)				$ 10.08
50	312713		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
51	308300		Seal, Foam (2)		Appelez-nous	-
54	313404		Frame, Control Panel		Appelez-nous	-
54	309170		Screw, 8-18 X 7/8		Appelez-nous	-
55	313402		Panel, Control		Appelez-nous	-
62	313047		Knob, Digital		Appelez-nous	-
63	313439		Knob, Assembly (2)		Appelez-nous	-
65	313311		Spring (3)		Appelez-nous	-
65	330206		Knob, Timer (3)		Appelez-nous	-
66	311071		Escutcheon, Thermostat		Appelez-nous	-
66	254225		Screw, 8bt X 1/4		Appelez-nous	-
67	WP311069		Escutcheon, Selector (4 Pos.)   (Replaces: 311069)				$ 50.22
67	254225		Screw, 8bt X 1/4		Appelez-nous	-
68	WP3150371		Knob, Control (2)   (Replaces: 310834)				$ 19.40
70	313030		Bezel Switch		Appelez-nous	-
71	313081		Bezel, Start		Appelez-nous	-
72	313080		Button, Start		Appelez-nous	-
73	310201		Spring (2)		Appelez-nous	-
74	313410		Skirt, Dial		Appelez-nous	-
75	313412		Skirt, Dial		Appelez-nous	-
	311491		Screw (2)		Appelez-nous	-
