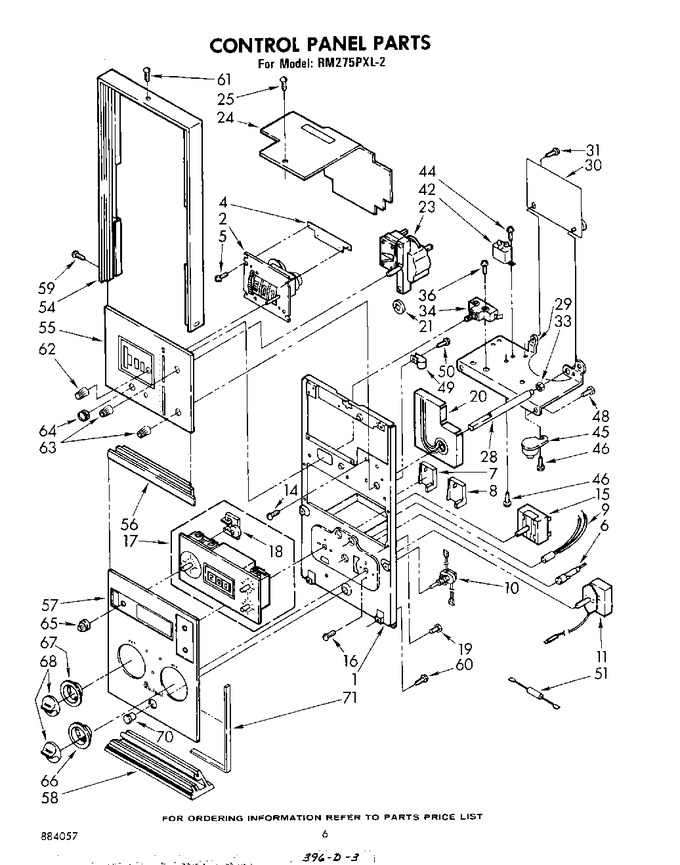

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329771		Bracket, Control Mounting		Appelez-nous	-
2	310127		Timer, Digital		Appelez-nous	-
4	254217		Screw, 10a X 3/8 (4)		Appelez-nous	-
4	311224		Plate, Timer Mounting (2)		Appelez-nous	-
5	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
6	311547		Light, Indicator (125v)		Appelez-nous	-
7	310643		Switch, Broil Percentage		Appelez-nous	-
8	311585		Switch, Bake Percentable		Appelez-nous	-
9	311550		Light, Indicator (250v) (3)		Appelez-nous	-
10	311441		Push Switch		Appelez-nous	-
11	310020		Thermostat (lower Oven)		Appelez-nous	-
14	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
15	310006		Switch, Selector		Appelez-nous	-
16	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
17	310325		Timer, Digital (includes Illus. 18)		Appelez-nous	-
18	308594		Motor, Timer		Appelez-nous	-
19	309645		Nut, Extension		Appelez-nous	-
20	312755		Indicator, Information Control		Appelez-nous	-
21	309983		Clip, Push-on (3)		Appelez-nous	-
23	309548		Indicator, Temperature		Appelez-nous	-
23	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
24	328431		Shield Assembly		Appelez-nous	-
25	WP486754		Screw, 6-32 X 1/4   (Replaces: 246119)				$ 6.75
28	310279		Shaft, Potentiometer		Appelez-nous	-
29	309484		Bracket, P.c. Board		Appelez-nous	-
30	329907		P/c Board & Potentiometer		Appelez-nous	-
31	309080		Screw (2)		Appelez-nous	-
33	307640		Palnut		Appelez-nous	-
34	832949		Switch (include Illus. 64)		Appelez-nous	-
36	98106		Screw		Appelez-nous	-
42	311507		Relay, Power		Appelez-nous	-
44	WP90767		Screw, 6 X 3/8b (2)   (Replaces: 90767)			Immediately	$ 7.04
45	310351		Buzzer, End-of-cycle		Appelez-nous	-
46	309258		Screw, 6 X 3/8b		Appelez-nous	-
48	254225		Screw, 8bt X 1/4 (3)		Appelez-nous	-
49	WP308605		Strain Relief (1)   (Replaces: 308604)				$ 10.08
49	WP308605		Strain Relief (1)   (Replaces: 308605)				$ 10.08
50	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
51	328923		Resistor & Terminal		Appelez-nous	-
54	312602		Frame, Control Panel		Appelez-nous	-
55	312788		Panel, Control (upper)		Appelez-nous	-
56	312743		Splice Panel		Appelez-nous	-
57	312420		Control Panel, Glass		Appelez-nous	-
58	312603		Bottom Cap, Control Panel		Appelez-nous	-
59	348689		Screw (2)				$ 66.92
60	WP486754		Screw, 6-32 X 1/4 (6)   (Replaces: 246119)				$ 6.75
61	312248		Screw, 8-32 X 1/2		Appelez-nous	-
62	307615		Knob, Digital		Appelez-nous	-
63	329423		Knob, Assembly (2)		Appelez-nous	-
63	WP688805		Cup, Spring   (Replaces: 688805)			Immediately	$ 7.03
64	832949		Switch, Push-to-start Switch, Push-to-start		Appelez-nous	-
65	312808		Knob, Timer (3)				$ 13.92
66	311073		Escutcheon, Thermostat		Appelez-nous	-
66	254225		Screw,		Appelez-nous	-
67	254225		Screw,		Appelez-nous	-
67	WP311068		Escutcheon, Selector (5 Pos.)   (Replaces: 311068)				$ 49.73
68	WP3150371		Knob, Control (2)   (Replaces: 310834)				$ 19.40
70	308784		Bezel, Switch		Appelez-nous	-
71	308297		Seal Foam (2)		Appelez-nous	-
