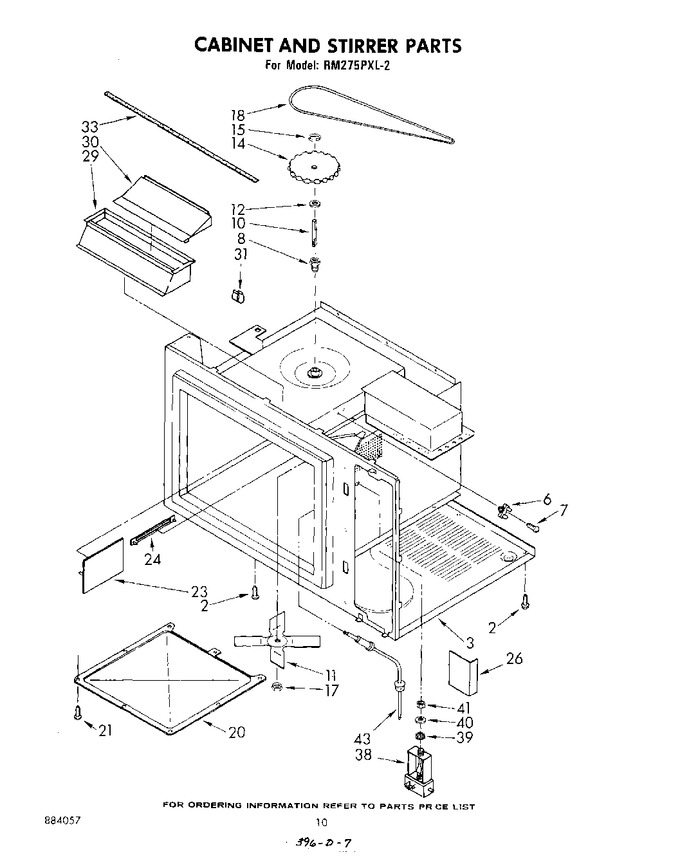

06 - Cabinet And Stirrer


07 - Door And Latch


08 - Cabinet And Hinge


09 - Oven Door


10 - Wiring Harness , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP308685		Screw, 10a X 1/2 Truss Head Phillips (6)   (Replaces: 253549)			Immediately	$ 7.08
6	309279		Thermal Fuse (includes Illus. 7)		Appelez-nous	-
7	312713		Screw, 8-32 X 3/8		Appelez-nous	-
8	312023		Bushing, Stirrer		Appelez-nous	-
10	312026		Shaft, Stirrer		Appelez-nous	-
11	309976		Stirrer Blade		Appelez-nous	-
12	312025		Washer, Nylon		Appelez-nous	-
14	311923		Pulley, Stirrer Blade		Appelez-nous	-
15	311999		``e`` Ring		Appelez-nous	-
17	WP487939		Nut, Standard Hex 1/4-20   (Replaces: 311721)				$ 6.95
18	311958		Belt, Drive		Appelez-nous	-
20	309441		Cover, Stirrer		Appelez-nous	-
21	310423		Fastener (8)		Appelez-nous	-
23	307516		Cover		Appelez-nous	-
24	309437		Cover, Rivet		Appelez-nous	-
26	312577		Shield, Exhaust		Appelez-nous	-
29	309444		Baffle, Air Exhaust		Appelez-nous	-
30	311702		Air Deflector		Appelez-nous	-
31	311149		Clip, Air Cover (3)		Appelez-nous	-
33	309813		Seal, Foam		Appelez-nous	-
38	309637		Jack, Probe		Appelez-nous	-
39	312796		Washer, Internal Lock		Appelez-nous	-
40	309769		Washer Probe		Appelez-nous	-
41	309768		Nut		Appelez-nous	-
43	311438		Probe, Temperature		Appelez-nous	-
