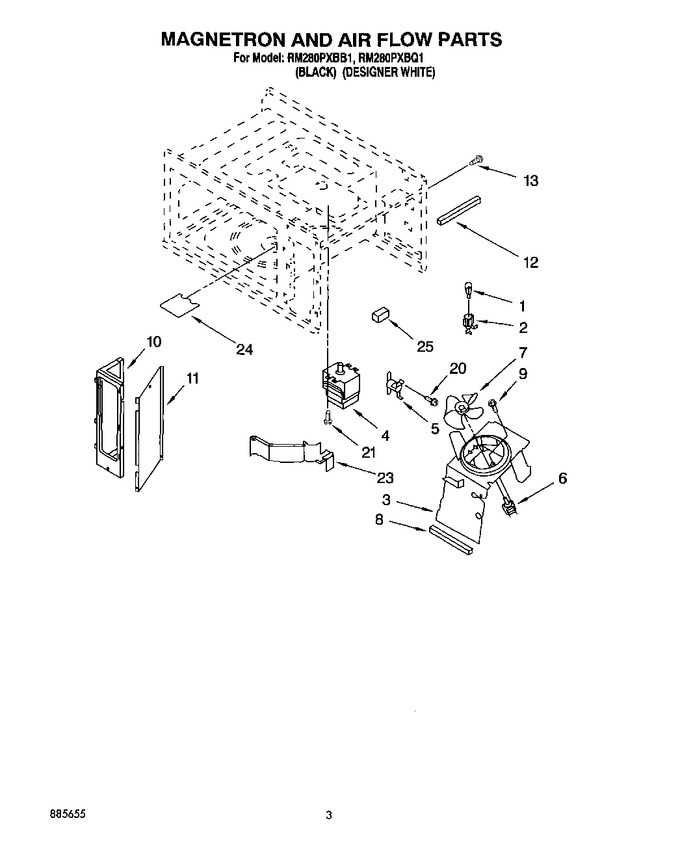

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPA3073101 | Lamp, Oven (Replaces: 4174873) |
|
Immediately | $ 10.90 | ||||
| 2 | 4313607 | Socket, Lamp |
|
- | |||||
| 3 | 4313686 | Duct, Fan |
|
- | |||||
| 4 | 4313675 | Magnetron |
|
- | |||||
| 5 | 4365500 | Screw |
|
- | |||||
| 5 | 4313613 | Thermostat, Magnetron |
|
- | |||||
| 6 | 4313672 | Motor, Fan |
|
- | |||||
| 7 | 4174669 | Blade, Fan |
|
- | |||||
| 8 | 4174824 | Cushion, Fan Duct |
|
- | |||||
| 9 | 4313701 | Screw |
|
- | |||||
| 10 | 4313041 | Faceplate |
|
- | |||||
| 11 | 4313077 | Cover |
|
- | |||||
| 12 | 4313645 | Cushion |
|
- | |||||
| 13 | 4313663 | Screw |
|
- | |||||
| 20 | 4174826 | Screw |
|
- | |||||
| 21 | 4365500 | Screw |
|
- | |||||
| 23 | 4365553 | Duct, Magnetron |
|
- | |||||
| 24 | 4313687 | Cover, Wave Guide |
|
- | |||||
| 25 | 4313643 | Shield, Magnetron |
|
- |
