Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP488729 Screw, 8-18 X 12/ (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

1 311592 Angle, Support (2) Appelez-nous -
2 WP307986 Pin, Hinge (2)   (Replaces: 307986) Special Order $ 11.78

3 307594 Ring, Retainer (2) Appelez-nous -
4 3185664 Channel Arm (2) Special Order $ 54.97

5 3185945 Cover, Bottom Appelez-nous -
6 3185944 Insulation Tray Appelez-nous -
7 WP681414 Screw, 10-16 X 1/2 (6)   (Replaces: 343641) In-Stock Immediately $ 7.07

7 310713 Bracket, Oven Mounting (2) Appelez-nous -
8 3187906 Side Trim (white Model, R.h.) Appelez-nous -
8 3187905 Side Trim (black Model, R.h.) Appelez-nous -
8 3187912 Side Trim (white Model, Lh) Appelez-nous -
8 3187911 Side Trim (black Model, L.h.) Appelez-nous -
9 308306 Pushnut (2) Appelez-nous -
10 309111 Snubber, Door (2) Appelez-nous -
11 307985 Pin, Hinge Ear (2) Special Order $ 29.54

12 WP308126 Spring, Oven Door (2)   (Replaces: 308126) Special Order $ 38.15

13 WP308125 Anchor, Spring (2)   (Replaces: 308125) Special Order $ 10.94

14 3185662 Hinge, Ear (right Side) Appelez-nous -
14 3185663 Hinge, Ear (left Side) Appelez-nous -
15 3176705 Frame, Front Appelez-nous -
16 WP488729 Screw, 8-18 X 12/ (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

16 3183796 Baffle, Top Insulation Appelez-nous -
18 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

18 3183801 Latch Assembly Appelez-nous -
19 WP488729 Screw, 8-18 X 1/2 (12)   (Replaces: 3148107) In-Stock Immediately $ 7.01

19 3185960 Cover, Rear Appelez-nous -
20 WP488729 Screw, 8-18 X 1/2 (6)   (Replaces: 3148107) In-Stock Immediately $ 7.01

20 3182052 Panel, Back Appelez-nous -
21 309245 Insulator, Switch Appelez-nous -
22 98106 Screw, 6-32 X 7/8 (2) Appelez-nous -
22 3178671 Safety Switch Appelez-nous -
23 309258 Screw, 6 X 3/8 (2) Appelez-nous -
23 313035 Terminal, Shield Appelez-nous -
24 WP488729 Screw, 8-18 X 12/ (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

24 311774 Support, Side Wrapper (4) Appelez-nous -
25 310825 Latch, Handle Appelez-nous -
25 308422 Screw, 10-24 X 1/2 (2) Appelez-nous -
26 3184039 Knob, Latch Handle Appelez-nous -
26 3183294 Screw, 8 X 1/4 Appelez-nous -
27 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

27 WP112432 Nut, (3)   (Replaces: 112432) Special Order $ 7.16

27 3147001 Screw Appelez-nous -
27 308043 Screw (2) Appelez-nous -
28 WP488729 Screw 8-18 X 1/2 (14)   (Replaces: 3148107) In-Stock Immediately $ 7.01

28 3185954 Side Wrapper R.h. Appelez-nous -
28 3185957 Side Wrapper L.h. Appelez-nous -
29 WP660579 Unit, Broil   (Replaces: 660579) Special Order $ 140.80

29 WP660579 Unit, Broil (alt.)   (Replaces: 311713) Special Order $ 140.80

29 WP660579 Unit, Broil (alt.)   (Replaces: 311714) Special Order $ 140.80

30 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 52.04

31 3185640 Rack, Oven Offset Appelez-nous -
32 3185641 Rack, Oven Special Order $ 67.33

33 WP308180 (alt.)   (Replaces: 313827) Special Order $ 96.92

33 WP308180 Unit, Bake (240v) (alt.)   (Replaces: 308180) Special Order $ 96.92

33 WP308180 Unit, Bake   (Replaces: 661170) Special Order $ 96.92

34 4396923 Grill, Broiler Pan   (Replaces: 3147563) In-Stock Immediately $ 52.04

35 WP308544 Screw, 10-24 X 1/2 (4)   (Replaces: 308544) In-Stock Immediately $ 6.98

35 310659 Plate, Side Panel (2) Appelez-nous -
36 3183005 Coverplate Appelez-nous -
36 3150532 Screw Appelez-nous -
36 WP488729 Screw   (Replaces: 313638) In-Stock Immediately $ 7.01

37 312697 Tube, Vent Appelez-nous -
38 310345 Switch, Door Special Order $ 94.86

39 311056 Screw, 10a X .50 (3) Appelez-nous -
39 3182032 Oven, Body Appelez-nous -
40 W11594027 Oven Light Assy.   (Replaces: 3150505) In-Stock Immediately $ 78.31

41 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 16.80

42 WP3184533 Gasket, Light   (Replaces: 3184533) In-Stock Immediately $ 7.73

43 3184208 Plate, Cover Appelez-nous -
44 310668 Grill, Bottom (black) Special Order $ 556.11

44 3149359 Grill, Bottom (white) Appelez-nous -
44 309029 Grill, Bottom (screw, Black) Appelez-nous -
44 WP488627 Grill, Bottom (screw, Chrome)   (Replaces: 338156) Special Order $ 6.81

45 310839 Eliminator, Smoke Appelez-nous -
45 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 313638) In-Stock Immediately $ 7.01

46 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 313638) In-Stock Immediately $ 7.01

46 310662 Plate, Cover Appelez-nous -
47 310433 Insulation, Oven Wrapper Appelez-nous -
49 3149328 Insulation, Top Appelez-nous -
51 310435 Insulation, Oven Back Appelez-nous -
52 3185197 Seal, Door Appelez-nous -
52 WP313808 Screw (2)   (Replaces: 313808) Special Order $ 6.84

55 3149271 Screw Appelez-nous -
55 3149142 Shield, Air Appelez-nous -
55 309080 Screw Appelez-nous -
56 3182814 Plug, Button Appelez-nous -
57 3185086 Plug Button Appelez-nous -
58 3148440 Sensor, Heat Appelez-nous -
58 3179117 Screw Appelez-nous -
59 3149653 Thermostat Special Order $ 134.40

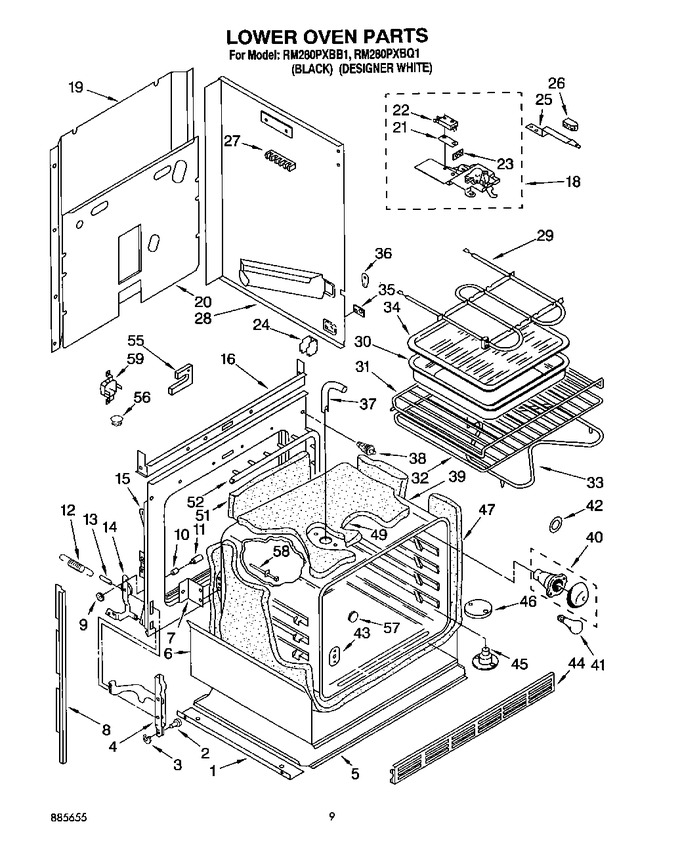

    View Diagram in Separate Window     Print Icon   Print Part List
