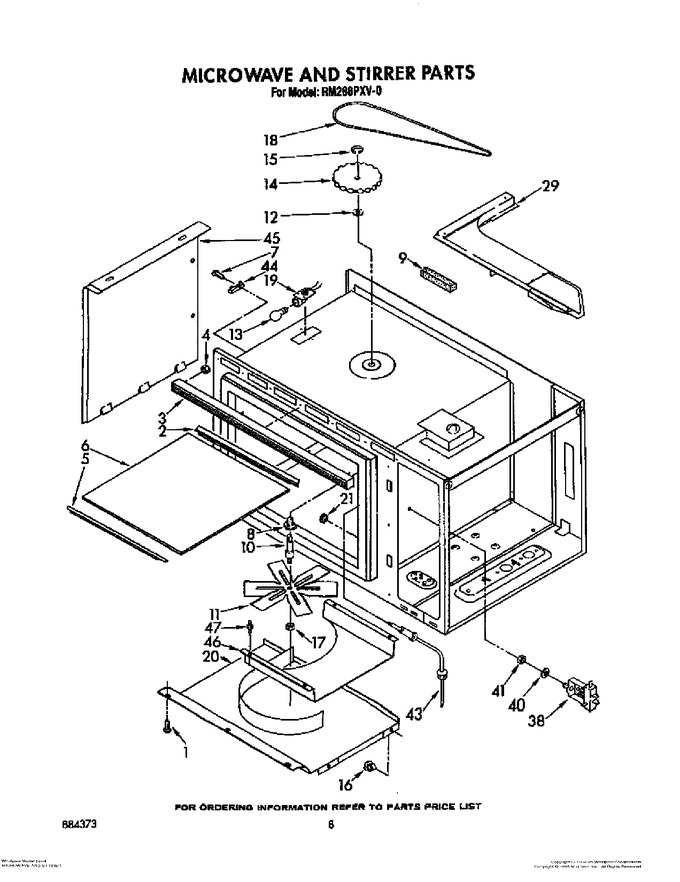

06 - Microwave And Stirrer


07 - Microwave Door


08 - Microwave Cabinet


09 - Wiring Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488729		Screw, 8-18 X 1/2 (6)   (Replaces: 3148107)			Immediately	$ 7.01
2	313615		Trim, Shelf (rear)		Appelez-nous	-
3	3148435		Deflector, Air		Appelez-nous	-
4	3147378		Nut (3)		Appelez-nous	-
5	313614		Trim, Shelf (front)		Appelez-nous	-
6	313639		Shelf, Glass (also Order No. 307576 Silastic)		Appelez-nous	-
7	312713		Screw, 8-32 X 3/8		Appelez-nous	-
8	312023		Bushing, Stirrer		Appelez-nous	-
9	3147599		Seal, Foam		Appelez-nous	-
10	312026		Shaft, Stirrer		Appelez-nous	-
11	313595		Stirrer Blade		Appelez-nous	-
12	312025		Washer, Nylon		Appelez-nous	-
13	WP3395618		Bulb, Oven   (Replaces: 313969)			Immediately	$ 71.33
14	311923		Pulley, Stirrer Blade		Appelez-nous	-
15	311999		``e`` Ring		Appelez-nous	-
16	313740		Fastner (4)		Appelez-nous	-
17	WP487939		Nut, Standard Hex 1/4-20   (Replaces: 311721)				$ 6.95
18	WP313646		Belt, Drive   (Replaces: 313646)				$ 76.05
19	330514		Socket, Light		Appelez-nous	-
20	313816		Screw, 8-32 X 1/2		Appelez-nous	-
20	313563		Stirrer Cover		Appelez-nous	-
21	312215		Plug, Hole (4)		Appelez-nous	-
29	3147002		Baffle, Air		Appelez-nous	-
38	3147071		Jack, Probe		Appelez-nous	-
40	313105		Washer Probe		Appelez-nous	-
41	313104		Nut		Appelez-nous	-
43	313527		Probe, Temperature		Appelez-nous	-
44	313855		Fuse, Thermal		Appelez-nous	-
45	3147004		Cover, Side		Appelez-nous	-
45	313816		Screw, 8-32 X 1/2 (4)		Appelez-nous	-
46	313735		Plate, Tuning		Appelez-nous	-
47	313739		Support (4)		Appelez-nous	-
