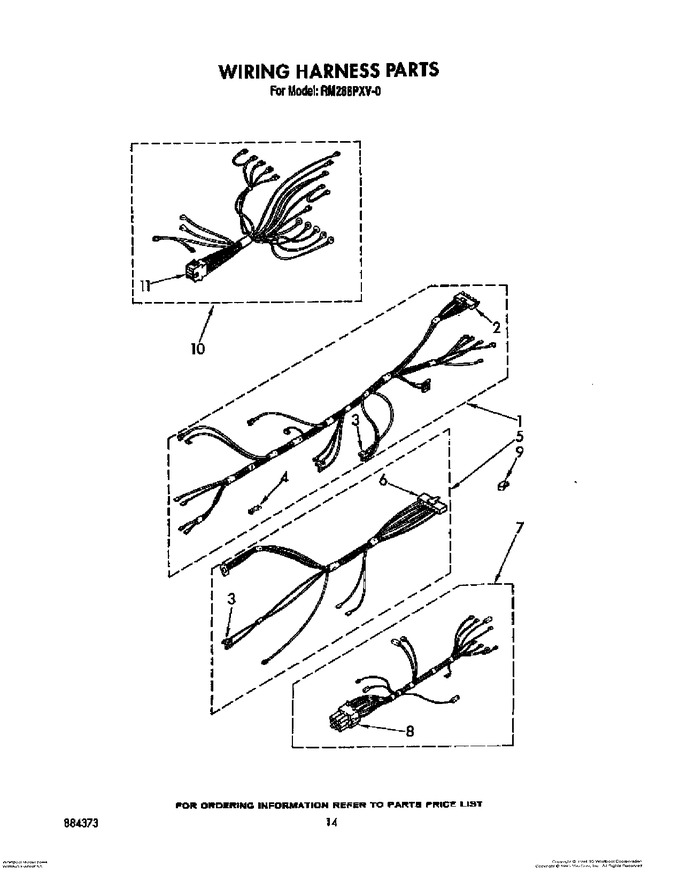

09 - Wiring Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3147938		Wiring Harness (main)		Appelez-nous	-
1	246135		Screw, 8d X 5/16		Appelez-nous	-
2	311575		Connector, Housing		Appelez-nous	-
3	310241		Housing		Appelez-nous	-
4	WP248562		Terminal   (Replaces: 248562)				$ 6.95
5	3147560		Harness, Wiring (control)		Appelez-nous	-
6	308565		Connector, Housing		Appelez-nous	-
7	3147916		Harness, Wiring Select./thermostat		Appelez-nous	-
8	309406		Block, Disconnect (male)		Appelez-nous	-
9	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
10	3147587		Harness, Wiring (oven)		Appelez-nous	-
11	832985		Rack, Cooking (bi-level)		Appelez-nous	-
11	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
11	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
11	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
11	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
11	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
11	261582		Grease		Appelez-nous	-
11	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
11	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
11	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 44.41
11	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
11	261881		Rotisserie Kit (rck 79)		Appelez-nous	-
11	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
11	309409		Disconnect, Female Block		Appelez-nous	-
11	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
11	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
11	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
11	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
11	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
11	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
11	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
11	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
11	242831		Wire (14 Ga. 200 C Red)				$ 342.23
11	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
11	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
11	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
11	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
11	WP261869		Citrine White (microwave)   (Replaces: 261869)				$ 23.85
11	254323		Touch-up, Oven		Appelez-nous	-
11	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
11	350942		Primer (white)   (Replaces: 206922)				$ 80.69
11	206925		Leveler, Enamel		Appelez-nous	-
11	261890		Harvest Gold		Appelez-nous	-
11	285006		Enamel, Black   (Replaces: 799339)			Immediately	$ 51.34
11	350930		White   (Replaces: 799343)			Immediately	$ 34.39
11	261900		Citrine White (5 Oz.)				$ 51.34
11	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
11	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
11	261891		Harvest Gold		Appelez-nous	-
11	978883		Almond		Appelez-nous	-
11	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
	LIT312899		Use & Care Guide (microwave)		Appelez-nous	-
	LIT312901		Use & Care Guide		Appelez-nous	-
	LIT3147287		Installation Instructions		Appelez-nous	-
	LIT3149026		Tech Sheet		Appelez-nous	-
	LIT884373		List, Repair Parts		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT311895		Cookbook (microwave)		Appelez-nous	-
