02 - Control Panel And Latch


03 - Door


04 - Lower Oven


05 - Microwave Mounting


06 - Magnetron And Air Flow


07 - Cabinet And Stirrer


08 - Control Panel


09 - Door And Latch


10 - Wiring Harness , Literature And Optional


11 - Cabinet

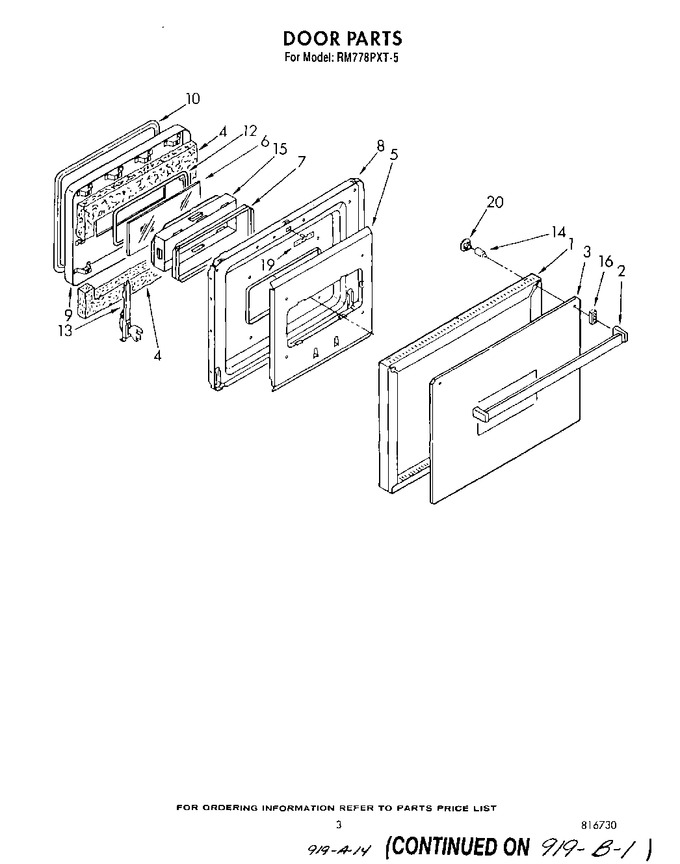

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	816506		Frame, Oven Door		Appelez-nous	-
1	WP90767		Screw, No.10 X 3/8 (5)   (Replaces: 816511)			Immediately	$ 7.04
2	816438		Handle, Oven Door		Appelez-nous	-
2	816359		Screw, 10-24 X 2 (2)		Appelez-nous	-
3	816356		Glass, Outer		Appelez-nous	-
4	816441		Insulation, Oven Door		Appelez-nous	-
5	816508		Panel, Airwash		Appelez-nous	-
6	816513		Glass, Inner		Appelez-nous	-
7	816512		Spacer, Glass		Appelez-nous	-
8	816507		Liner, Oven Door		Appelez-nous	-
8	816270		Screw, 10-24 X 5/8		Appelez-nous	-
9	816362		Screw, 10-24 X 2 3/4 (4)		Appelez-nous	-
9	816510		Baffle, Weldment		Appelez-nous	-
10	816446		Seal, Oven Door		Appelez-nous	-
12	816363		Seal, Window		Appelez-nous	-
13	816270		Screw, 10-24 X 5/8 (4)		Appelez-nous	-
13	816385		Hinge Assy. (2)		Appelez-nous	-
14	816720		Spacer, Door Handle (2)		Appelez-nous	-
15	816509		Collar, Glass		Appelez-nous	-
16	816440		Spacer, Handle		Appelez-nous	-
19	877507		Strike		Appelez-nous	-
19	816270		Screw, 10-24 X 5/8 (2)		Appelez-nous	-
20	816505		Button, Door Spacer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
