Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP488729 Screw, 8-18 X .50 (4)   (Replaces: 313638) In-Stock Immediately $ 7.01

1 3147004 Cover, Side Appelez-nous -
3 313735 Plate, Tuning Appelez-nous -
4 313739 Support (4) Appelez-nous -
5 3149314 Grill, Air Appelez-nous -
6 313855 Thermal Fuse (includes Illus. 7) Appelez-nous -
7 312713 Screw, 8-32 X 3/8 Pan Head Phillips Appelez-nous -
8 312023 Bushing, Stirrer Appelez-nous -
9 3147378 Nut (4) Appelez-nous -
10 312026 Shaft, Stirrer Appelez-nous -
11 313595 Stirrer Blade Appelez-nous -
12 312025 Washer, Nylon Appelez-nous -
14 311923 Pulley, Stirrer Blade Appelez-nous -
15 311999 ``e`` Ring Appelez-nous -
17 WP487939 Nut, Standard Hex 1/4-20   (Replaces: 311721) Special Order $ 6.95

18 WP313646 Belt, Drive   (Replaces: 313646) Special Order $ 76.05

20 313563 Stirrer Cover Appelez-nous -
21 313740 Fastener (4) Appelez-nous -
22 313816 Screw, 8-32 X 1/2 (3) Appelez-nous -
38 3148557 Probe Jack Appelez-nous -
39 313105 Washer, Internal Lock Appelez-nous -
41 313104 Nut Appelez-nous -
43 816400 Probe, Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

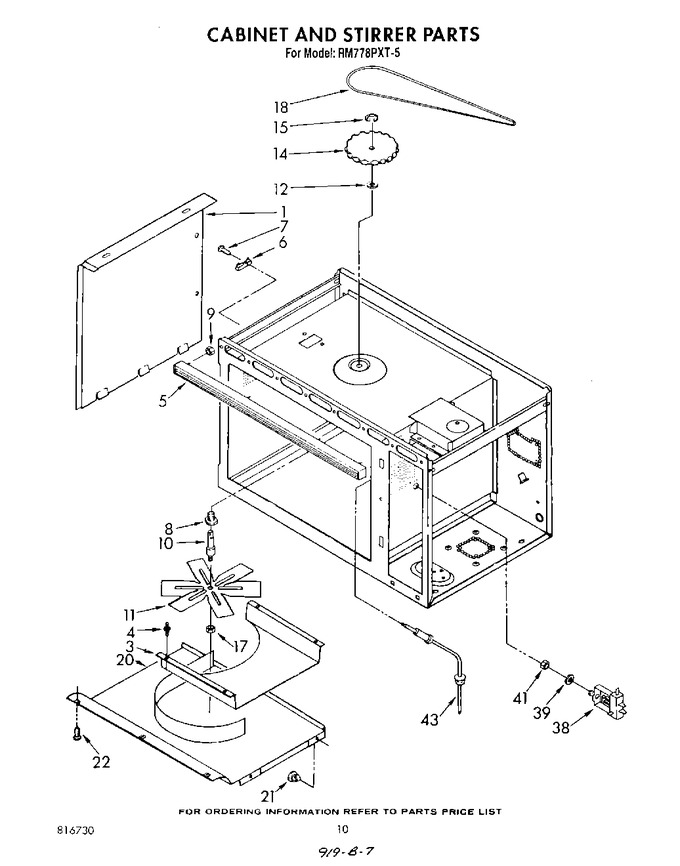

Diagram for RM778PXT5
