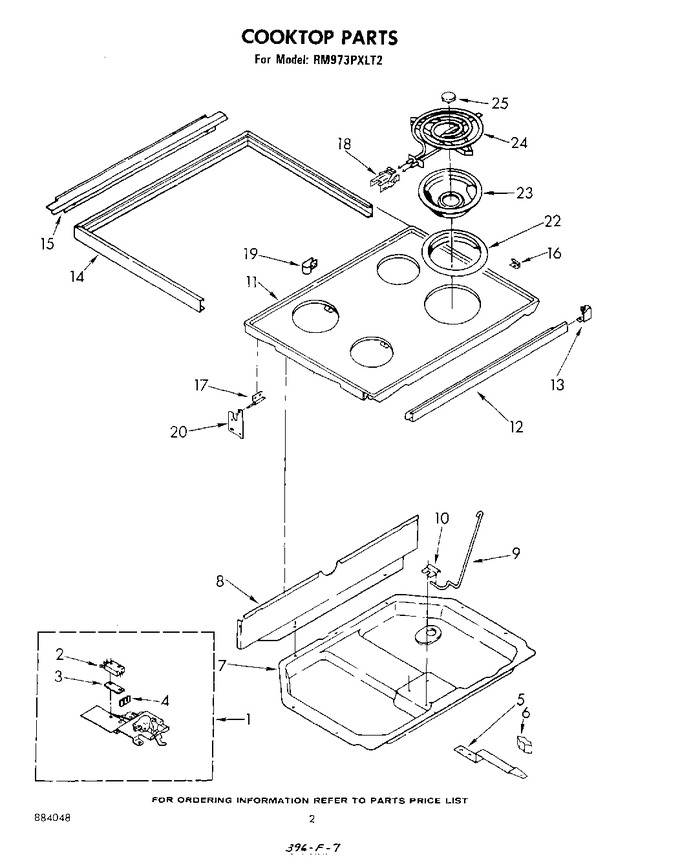

02 - Cook Top


03 - Oven


04 - Door And Drawer


05 - Oven (continued)


06 - Upper Chassis And Component


07 - Control Panel


08 - Magnetron And Air Flow


09 - Cabinet And Stirrer


10 - Door And Latch


11 - Wiring Harness , Literature And Optional


12 - Cabinet And Hinge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
1	328585		Latch Assembly (pyro)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	310100		Terminal		Appelez-nous	-
5	311056		Screw (2)		Appelez-nous	-
5	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 6.81
5	308413		Handle, Latch		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
6	307977		Knob, Latch		Appelez-nous	-
7	308827		Burner Box		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (6)   (Replaces: 309112)				$ 7.04
8	308968		Shield, Wiring		Appelez-nous	-
9	WP681414		Screw, 10-32 Hex (ground) (3)   (Replaces: 343631)			Immediately	$ 7.07
9	307968		Rod, Cooktop		Appelez-nous	-
10	307967		Retainer, Cooktop		Appelez-nous	-
10	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
11	338177		Clip (2)		Appelez-nous	-
11	311678		Cooktop, Chrome		Appelez-nous	-
12	311911		Trim, Cooktop Front		Appelez-nous	-
13	309051		Screw, 8a X 3/8 (2)		Appelez-nous	-
13	98084		Clip (4)		Appelez-nous	-
13	308445		End Cap Trim R.h.		Appelez-nous	-
13	308444		End Cap Trim L.h.		Appelez-nous	-
14	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
14	W11693756		Screw, 8a X 5/8 (4)   (Replaces: 258665)			Immediately	$ 12.65
14	308619		Trim, Cooktop Side & Rear		Appelez-nous	-
15	308981		Trim, Rear		Appelez-nous	-
16	WP308685		Screw, 10a X 1/2 (6)   (Replaces: 253549)			Immediately	$ 7.08
16	308621		Bracket, Cooktop (6)		Appelez-nous	-
17	328238		Hinge, Leaf Cooktop L.h.		Appelez-nous	-
17	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
17	328239		Hinge, Leaf Cooktop R.h.		Appelez-nous	-
18	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
18	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 14.48
19	488946		Strain Relief   (Replaces: 308606)				$ 18.41
19	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
19	WP681414		Screw, 10-32 X 1/2 (2)   (Replaces: 690989)			Immediately	$ 7.07
19	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
19	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
20	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
20	308993		Hinge (2)		Appelez-nous	-
22	W10854470		Adapter Ring 6`` (2)   (Replaces: 306785)				$ 81.37
22	W10858781		Adapter Ring 8`` (2)   (Replaces: 306786)				$ 85.64
23	W10291024		Reflector Pan (8`` (2))   (Replaces: 306790)			Immediately	$ 49.90
23	W10291024		Reflector Pan 6`` (2)   (Replaces: 306789)			Immediately	$ 49.90
24	WP660533		Unit, Surface (8`` (2) (includes Illus. 25))   (Replaces: 312560)			Immediately	$ 39.47
24	WPY04100165		Unit, Surface (6`` (2))   (Replaces: 312557)			Immediately	$ 50.62
25	256904		Medallion		Appelez-nous	-
