Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 307981 Bracket, Mounting (2) Appelez-nous -
2 307982 Rail R.h. (includes Illus. 3) Appelez-nous -
2 307983 Rail L.h. (includes Illus. 3) Appelez-nous -
2 307748 Screw, 10a X 1/2 (2) Appelez-nous -
3 307979 Glide, Front (2) Appelez-nous -
4 WP308180 Unit, Bake   (Replaces: 308180) Special Order $ 96.92

4 246127 Screw, 10-32 X 5/8 (2) Appelez-nous -
5 WP660579 Unit, Broil (alt.)   (Replaces: 311714) Special Order $ 140.80

5 WP660579 Unit, Broil (alt.)   (Replaces: 311713) Special Order $ 140.80

5 WP660579 Unit, Broil   (Replaces: 660579) Special Order $ 140.80

6 98884 Screw, 10-16 X 3/4 (2) Appelez-nous -
6 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

6 WP112432 Nut (6)   (Replaces: 112432) Special Order $ 7.16

7 313660 Clip Appelez-nous -
7 308498 Ground Strap Appelez-nous -
7 WP681414 Screw 10-32 X 1/2   (Replaces: 690989) In-Stock Immediately $ 7.07

8 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

8 307970 Bracket, Service Appelez-nous -
10 307971 Cover, Rear Appelez-nous -
10 WP681414 Screw, 10-16 X 1/2 (7)   (Replaces: 343641) In-Stock Immediately $ 7.07

11 307972 Cover, Service Appelez-nous -
11 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

12 4396923 Pan, Broiler   (Replaces: 310976) In-Stock Immediately $ 52.04

13 4396923 Rack, Broiler   (Replaces: 258171) In-Stock Immediately $ 52.04

14 308173 Rack, Oven (straight) Appelez-nous -
15 308172 Rack, Oven (offset) Appelez-nous -
16 307748 Screw, 10ab X 1/2 (2) Appelez-nous -
16 311982 Coverplate (2) Appelez-nous -
246127 Screw, 10-32 X 5/8 (2) Appelez-nous -

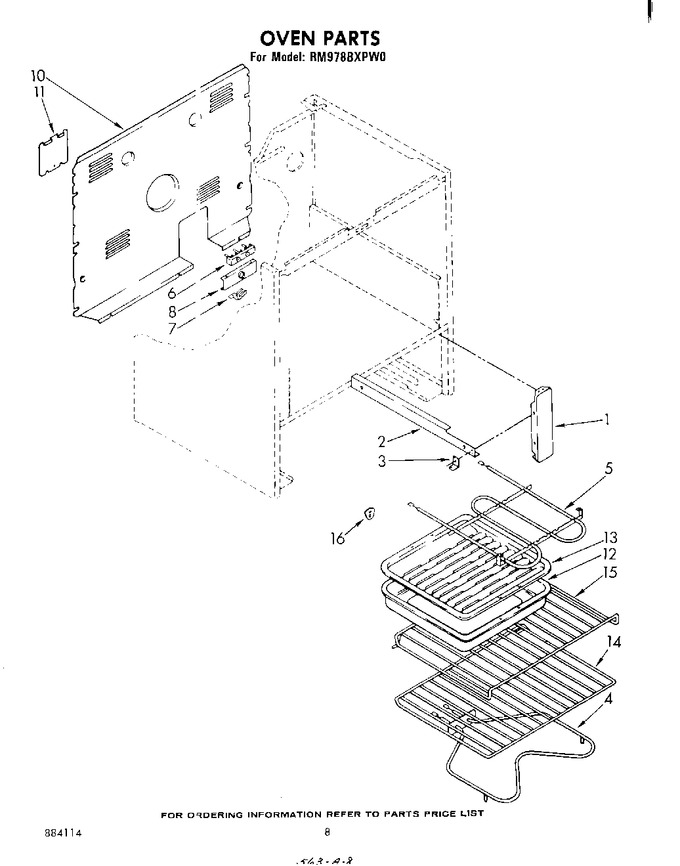

    View Diagram in Separate Window     Print Icon   Print Part List
