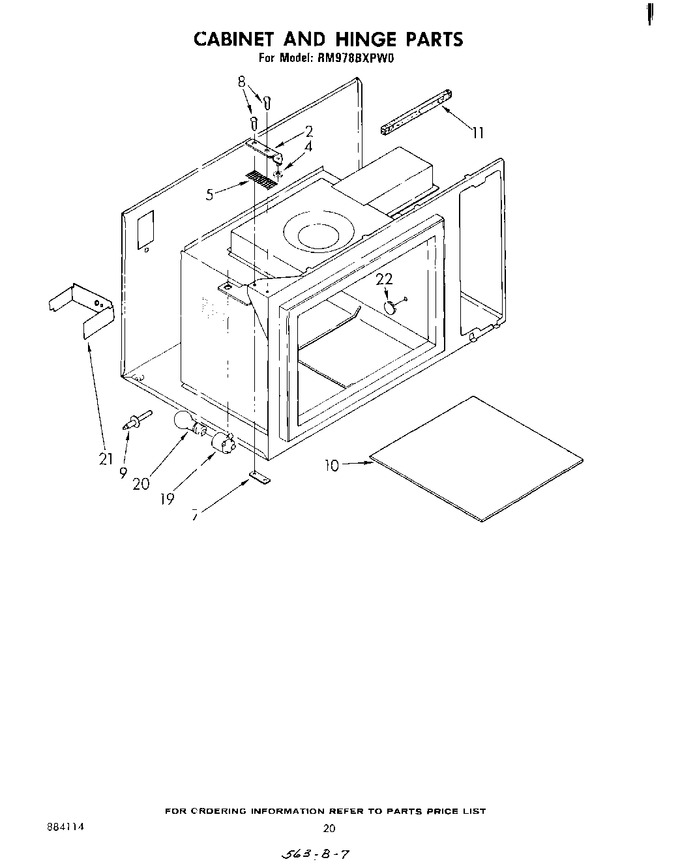

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	330015		Hinge Assembly (bottom)		Appelez-nous	-
2	330016		Hinge Assembly (top)		Appelez-nous	-
4	312147		Washer, Flat		Appelez-nous	-
5	312744		Hinge, Shim Locking (2)		Appelez-nous	-
7	312741		Plate, Nut (2)		Appelez-nous	-
8	312742		Screw, 12-24 X 3/4 (4)		Appelez-nous	-
9	313456		Rivet (3)		Appelez-nous	-
10	312579		Shelf, Microwave (alt.) (install W/silastic No. 482338)		Appelez-nous	-
10	660561		Shelf, Microwave		Appelez-nous	-
10	311058		Shelf, Microwave (alt.)		Appelez-nous	-
11	313501		Seal, Faom		Appelez-nous	-
19	307519		Socket, Snap-in		Appelez-nous	-
20	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
21	312713		Screw, 8-32 X 3/8		Appelez-nous	-
21	309554		Shield, Lamp		Appelez-nous	-
22	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
22	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
22	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
22	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
22	WP261869		Citrine White (microwave)   (Replaces: 261869)				$ 23.85
22	254323		Touch-up, Oven		Appelez-nous	-
22	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
22	350942		Primer (white)   (Replaces: 206922)				$ 80.69
22	206925		Leveler, Enamel		Appelez-nous	-
22	261890		Harvest Gold		Appelez-nous	-
22	285365		Toast		Appelez-nous	-
22	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
22	285006		Enamel, Black   (Replaces: 799339)			Immediately	$ 51.34
22	350930		White   (Replaces: 799343)			Immediately	$ 34.39
22	261900		Citrine White (5 Oz.)				$ 51.34
22	799340		Black (uncut)		Appelez-nous	-
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
22	261891		Harvest Gold (uncut)		Appelez-nous	-
22	978883		Almond (uncut)		Appelez-nous	-
22	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
22	285368		Platinum (uncut)		Appelez-nous	-
22	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
22	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
22	261582		Grease		Appelez-nous	-
22	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
22	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
22	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 44.41
22	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
22	242985		Rotisserie Kit		Appelez-nous	-
22	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
22	307677		Browning Tray (micro)		Appelez-nous	-
22	310878		Rack, Meat (micro)		Appelez-nous	-
22	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
22	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
22	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
22	312214		Hole Plug (4)		Appelez-nous	-
22	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
22	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
22	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
22	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
22	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
22	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
22	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
22	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
22	242831		Wire (14 Ga. 200 C Red)				$ 342.23
22	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
22	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	LIT313480		Installation Instructions		Appelez-nous	-
	LIT884114		List, Repair Parts		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT311895		Cookbook (microwave)		Appelez-nous	-
	LIT312880		Guide, Use & Care (microwave)		Appelez-nous	-
	LIT312877		Use & Care Guide		Appelez-nous	-
	LIT313355		Tech Sheet		Appelez-nous	-
