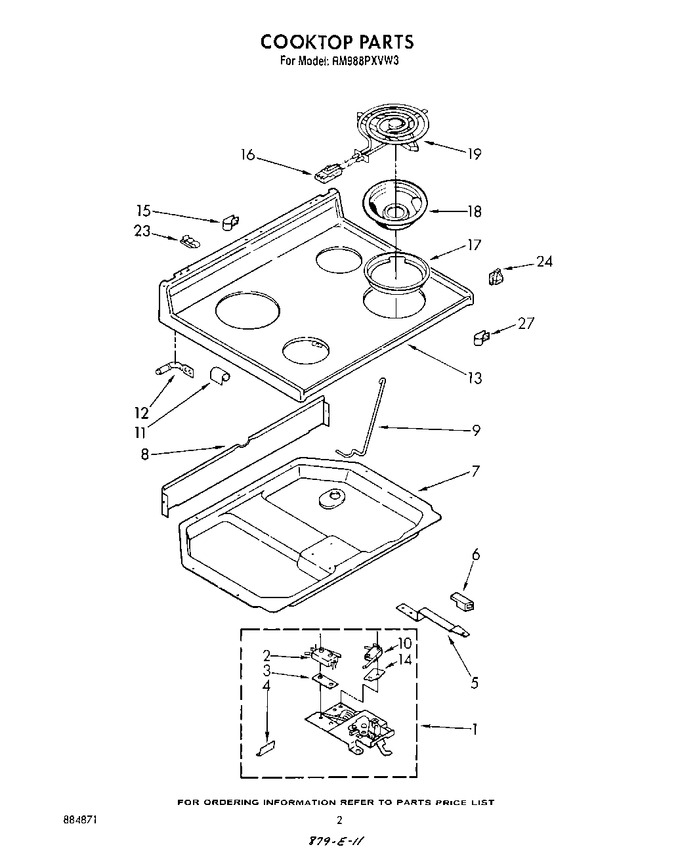

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
1	3171148		Latch Assembly		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Latch Terminal		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
4	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
5	311056		Screw (2)		Appelez-nous	-
5	3147065		Handle, Latch		Appelez-nous	-
5	WP488627		Screw, 8-18 X 1/2   (Replaces: 313349)				$ 6.81
6	155023		Screw,			Immediately	$ 7.91
6	3148684		Knob, Latch		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
7	3150186		Box, Burner		Appelez-nous	-
7	WP681414		Screw (8)   (Replaces: 343641)			Immediately	$ 7.07
8	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
8	307973		Shield, Wiring		Appelez-nous	-
9	3148659		Rod, Cooktop		Appelez-nous	-
9	WP681414		Screw (2)   (Replaces: 690989)			Immediately	$ 7.07
10	3148669		Switch, Lock		Appelez-nous	-
11	307965		Bracket (2)		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	3170981		Cooktop (white)		Appelez-nous	-
13	3170983		Cooktop (toast)		Appelez-nous	-
13	3170982		Cooktop (almond)		Appelez-nous	-
13	3170984		Cooktop (platinum)		Appelez-nous	-
14	3147864		Insulator, Switch		Appelez-nous	-
15	WP308605		Strain Relief   (Replaces: 308604)				$ 10.08
15	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
16	WP313808		Screw, 6-32 X 1/4 (4)   (Replaces: 313808)				$ 6.84
16	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 14.48
17	W10854470		Adapter Ring (6`` (2))   (Replaces: 3150244)				$ 81.37
17	W10858781		Adapter Ring (8`` (2))   (Replaces: 3150245)				$ 85.64
18	3150198		Reflector Pan (6`` (2))		Appelez-nous	-
18	W10291024		Reflector Pan (8`` (2))   (Replaces: 3150199)			Immediately	$ 49.90
19	WP660532		Unit, Surface 6`` (240v) (2)   (Replaces: 660529)			Immediately	$ 36.90
19	WP660533		Unit, Surface 8`` (240v) (2)   (Replaces: 660533)			Immediately	$ 39.47
23	313570		Clamp, Tube		Appelez-nous	-
24	814103		Clip, Hold Down (4)   (Replaces: 3148790)				$ 9.02
27	WP965173		Screw,   (Replaces: 246132)			Immediately	$ 9.65
27	WP308605		Strain Relief   (Replaces: 308603)				$ 10.08
