SELECT A DIAGRAM

02 - Cook Top


03 - Oven


04 - Oven Door And Drawer


05 - Unit


06 - Upper Chassis


07 - Magnetron And Air Flow


08 - Control Panel


09 - Stirrer Drive


10 - Microwave Door And Latch , Lit/optional


12 - Section

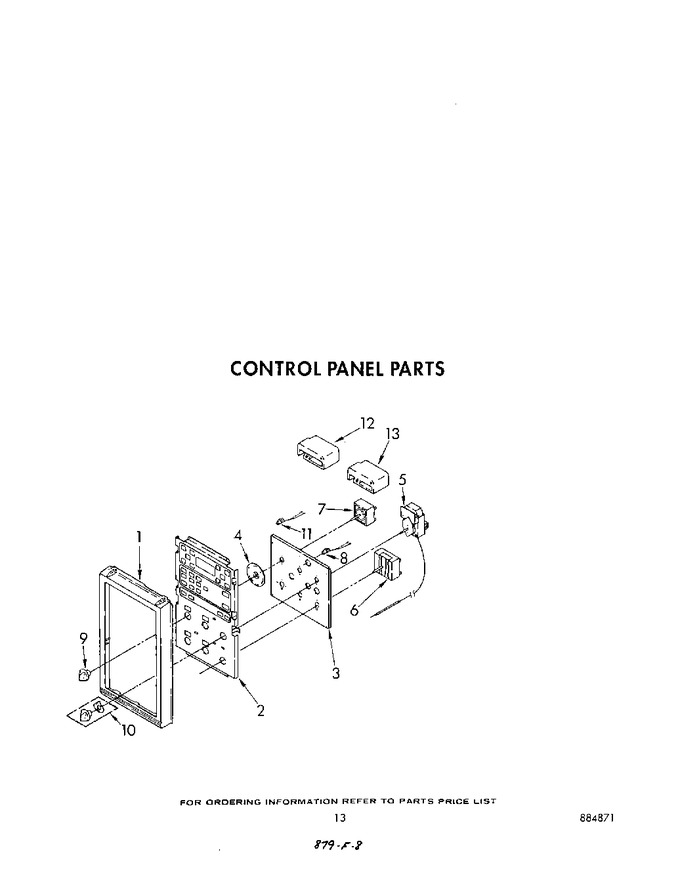

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3150217		Frame, Control Panel		Appelez-nous	-
2	3148270		Module, Control		Appelez-nous	-
2	313818		Screw, 8-32 X 3/16 (6)		Appelez-nous	-
3	3147280		Bracket, Control (mounting)		Appelez-nous	-
3	313818		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
4	3147032		Skirt, Dail (4)		Appelez-nous	-
4	313806		Screw		Appelez-nous	-
5	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
5	3148930		Thermostat		Appelez-nous	-
6	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
6	3147234		Switch, Selector		Appelez-nous	-
7	308119		Screw, 8-32 X 3/16 (8)		Appelez-nous	-
7	308477		Switch, Infinite (4)		Appelez-nous	-
8	3147862		Light, Indicator (3)		Appelez-nous	-
9	3147030		Knob, Control (4)		Appelez-nous	-
10	3147888		Knob, Selector (2)		Appelez-nous	-
11	3149036		Light, Indicator		Appelez-nous	-
12	314125		Relay, Power 24 Volts D.c		Appelez-nous	-
12	246131		Screw (2)		Appelez-nous	-
13	246131		Screw (2)		Appelez-nous	-
13	697811		Relay, Power 120 Volts A.c.   (Replaces: 3147643)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
