Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 238614 Bumper, Cooktop (2) Special Order $ 72.68

3 WPW10058460 Leg, Leveling (4)   (Replaces: 3150150) In-Stock Immediately $ 7.07

4 3172194 Frame, Front Appelez-nous -
4 WP681414 Screw, 10-16 X 1/2 (13)   (Replaces: 343641) In-Stock Immediately $ 7.07

5 307985 Pin, Hinge (2) Special Order $ 29.54

6 309111 Snubber, Door (2) Appelez-nous -
7 308306 Pushnut (2) Appelez-nous -
8 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 7.07

8 327891 Hinge (l.h.) Appelez-nous -
8 327890 Hinge (r.h.) Appelez-nous -
9 311056 Screw (3) Appelez-nous -
9 3172547 Oven Appelez-nous -
10 308043 Screw, 10-12 X 7/8 (2) Appelez-nous -
10 W11594027 Socket, Lamp   (Replaces: 3150505) In-Stock Immediately $ 78.31

11 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 16.80

14 314215 Screw Appelez-nous -
14 314209 Switch, Broil Appelez-nous -
15 314215 Screw Appelez-nous -
15 314210 Switch, Bake Appelez-nous -
16 329710 Channel, Arm (2) Appelez-nous -
18 311220 Bracket, Oven (mounting) Appelez-nous -
18 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 7.07

18 311056 Screw (3) Appelez-nous -
19 307748 Screw, 10a X 1/2 (2) Appelez-nous -
19 307961 Vent, Oven Appelez-nous -
20 98005642 Clip, Therm Bulb (2)   (Replaces: 313382) In-Stock Immediately $ 74.64

21 WP307986 Hinge Pin (2)   (Replaces: 307986) Special Order $ 11.78

22 307594 Ring, Retaining (2) Appelez-nous -
23 WP308126 Spring, Oven Door (2)   (Replaces: 308126) Special Order $ 38.15

24 WP308125 Anchor, Spring (2)   (Replaces: 308125) Special Order $ 10.94

25 310345 Switch, Door Special Order $ 94.86

26 314197 Support, Tubing L.h. Appelez-nous -
26 314195 Support, Tubing R.h. Appelez-nous -
27 WP681414 Main Chassis (screw, 10-16 X 1/2 (2))   (Replaces: 343641) In-Stock Immediately $ 7.07

27 3148284 Seal, Door Appelez-nous -
27 WP313808 Screw (2)   (Replaces: 313808) Special Order $ 6.84

27 330092 Main Chassis (platinum) Appelez-nous -
27 330091 Main Chassis (toast) Appelez-nous -
27 330090 Main Chassis (almond) Appelez-nous -
27 330086 Main Chassis (white) Appelez-nous -
27 WP681414 Main Chassis (screw 10-32 X 1/2 (2))   (Replaces: 690989) In-Stock Immediately $ 7.07

28 8273888A Bracket, Anchor   (Replaces: 3148603) Special Order $ 27.96

28 3148604 Screw (2) Appelez-nous -
33 660001 Ballast Appelez-nous -
33 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

34 3148605 Anchor, Plastic Appelez-nous -
34 310433 Insulation, Wrap Appelez-nous -
34 WPW10208653 Insulation, Oven   (Replaces: 3149287) In-Stock Immediately $ 49.92

LIT3147391 Installation Instructions Appelez-nous -
LIT3150642 Tech Sheet Appelez-nous -
LIT884920 Repair Parts List Appelez-nous -
LIT3147575 Auto Sensor Appelez-nous -
LIT3147571 Defrost Appelez-nous -
LIT313358 Cooking Guide Label, Guide Appelez-nous -
LIT311895 Cookbook (microwave) Appelez-nous -
LIT312913 Use & Care Guide (microwave) Appelez-nous -
LIT3150584 Use & Care Guide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

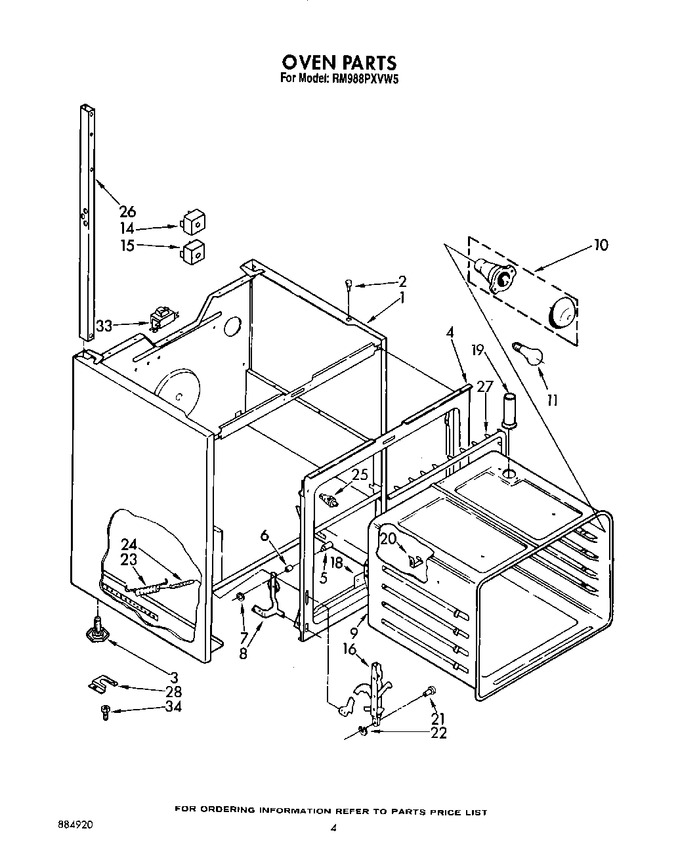

Diagram for RM988PXVN5
