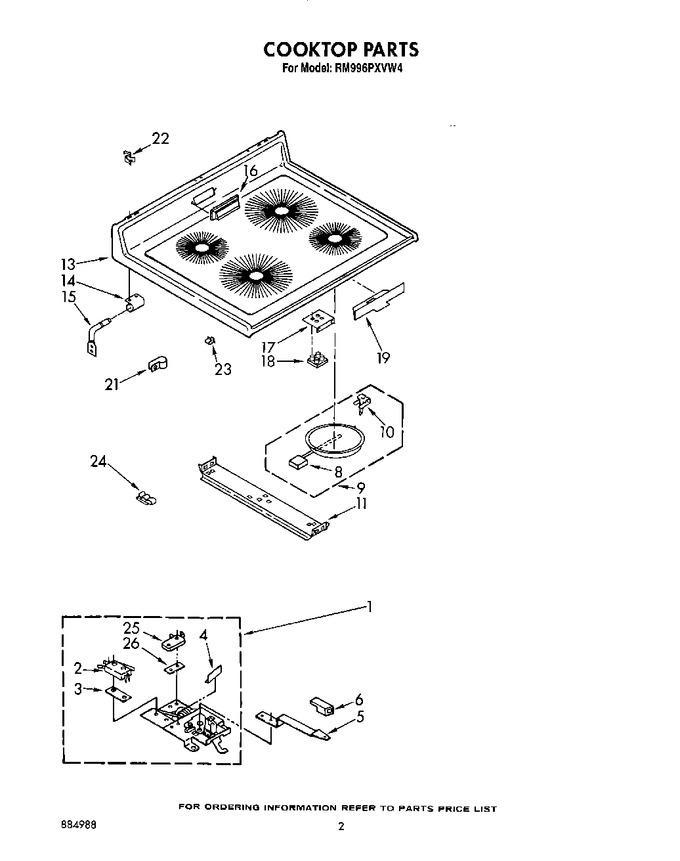

02 - Cooktop


03 - Control Panel


04 - Oven, Lit/optional


05 - Oven Door And Drawer


06 - Unit


07 - Upper Chassis


08 - Magnetron And Air Flow


09 - Stirrer Drive


10 - Microwave Door And Latch, Optional


12 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3171148		Latch Assembly		Appelez-nous	-
1	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 7.07
2	98106		Screw (2)		Appelez-nous	-
2	308185		Switch, Safety		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	309258		Screw (2)		Appelez-nous	-
4	313035		Shield, Terminal		Appelez-nous	-
5	308422		Screw (2)		Appelez-nous	-
5	3169081		Handle, Latch		Appelez-nous	-
6	3148684		Knob, Latch		Appelez-nous	-
6	155023		Screw,			Immediately	$ 7.91
8	3149127		Limiter, Temp. (250 Mm (lf))		Appelez-nous	-
8	3149123		Limiter, Temp. (230 Mm - Rr)		Appelez-nous	-
8	3149126		Limiter, Temp. (200 Mm - Rf)		Appelez-nous	-
8	3149125		Limiter, Temp. (180 Mm - Lr)		Appelez-nous	-
9	3148828		Surface Element (includes No.8, No.10) (250 Mm - Lf)		Appelez-nous	-
9	3148827		Surface Element (includes No.8, No.10) (230 Mm - Rr)		Appelez-nous	-
9	3148826		Surface Element (includes No. 8, No.10) (200 Mm - Rf)		Appelez-nous	-
9	3148825		Surface Element (includes No.8, No.10) (180 Mm - Lr)		Appelez-nous	-
10	3149191		Spring (8)				$ 9.45
10	WP486754		Screw (8)   (Replaces: 246119)				$ 6.75
11	3148809		Bracket, Top		Appelez-nous	-
11	98520		Screw (4)		Appelez-nous	-
13	3176524		Cooktop (almond)		Appelez-nous	-
13	3176523		Cooktop (white)		Appelez-nous	-
14	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.07
14	307965		Bracket, Hinge (2)		Appelez-nous	-
15	307966		Pin, Hinge (2)		Appelez-nous	-
15	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.07
16	3149011		Cover, Vent (white)		Appelez-nous	-
16	3149012		Cover, Vent (almond)		Appelez-nous	-
17	98520		Screw (2)		Appelez-nous	-
17	3149032		Bracket, Light		Appelez-nous	-
18	3149029		Light, Indicator		Appelez-nous	-
19	3149262		Shield, Probe		Appelez-nous	-
21	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
21	98520		Screw		Appelez-nous	-
22	3149190		Mounting Clip		Appelez-nous	-
23	311311		Clip, Wire		Appelez-nous	-
24	313570		Tube Clamp		Appelez-nous	-
25	3148669		Switch, Lock		Appelez-nous	-
26	3147864		Insulator, Switch		Appelez-nous	-
