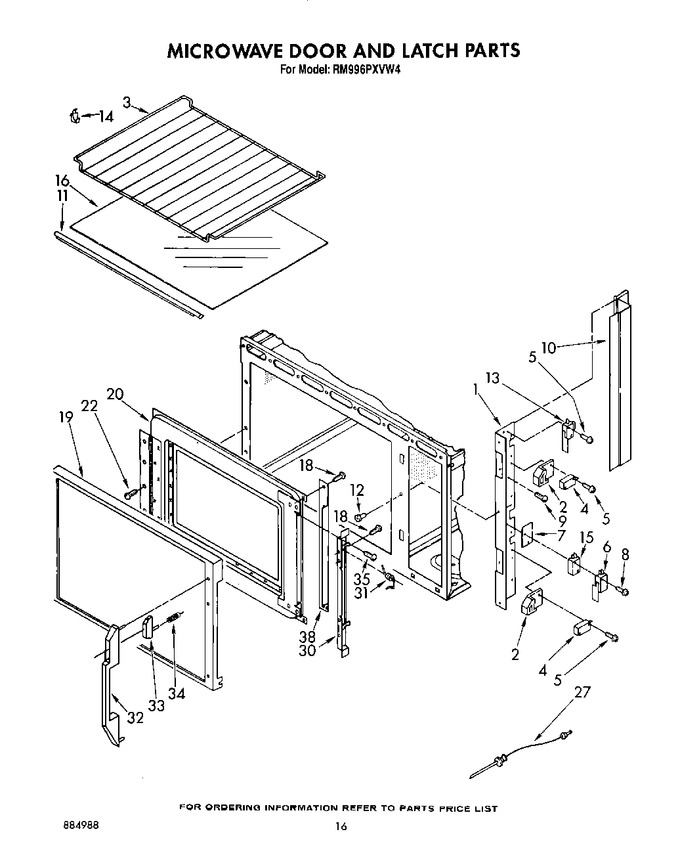

10 - Microwave Door And Latch, Optional


12 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311354		Bracket, Catch		Appelez-nous	-
1	312713		Screw, 8-32 X 3/8		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
3	313663		Rack, Wire		Appelez-nous	-
4	814037		Switch, Primary & Secondary Interlock (2)   (Replaces: 661146)				$ 81.32
5	312717		Screw, 4.40 X 3/4		Appelez-nous	-
6	661145		Switch, Light/ Monitor		Appelez-nous	-
7	313126		Insulator		Appelez-nous	-
8	310211		Screw, 4-40 X 10 (2)		Appelez-nous	-
9	309080		Screw 8-32 X 3/8		Appelez-nous	-
10	311360		Shield		Appelez-nous	-
10	313740		Fastener		Appelez-nous	-
11	313615		Trim, Shelf (rear)		Appelez-nous	-
11	313614		Trim, Shelf (front)		Appelez-nous	-
12	311928		Rivet, Pop (3)				$ 5.33
13	313120		Switch, Miniature		Appelez-nous	-
14	WP3149478		Support, Rack (2)   (Replaces: 313653)				$ 8.64
15	661144		Switch, Monitor/ Oven Light		Appelez-nous	-
16	313639		Shelf, Glass		Appelez-nous	-
18	303776		Screw 8-32 X 5/16   (Replaces: 313811)		Appelez-nous	-
19	3150229		Frame, Door		Appelez-nous	-
20	3171012		Door, Inner		Appelez-nous	-
22	WPW10068250		Screw, 8-32 X 19/32   (Replaces: 311777)				$ 3.66
27	313527		Probe, Temperature		Appelez-nous	-
30	329066		Latch Assembly Includes No.31		Appelez-nous	-
31	311352		Spring, Torsion (2)		Appelez-nous	-
32	314169		Handle, Door		Appelez-nous	-
33	3149637		Button, Door Handle		Appelez-nous	-
34	310197		Spring, Compression		Appelez-nous	-
35	313820		Screw (2)		Appelez-nous	-
38	814023		Non-vent Kit		Appelez-nous	-
38	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
38	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
38	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
38	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
38	CERAMABRYTE		Cleaner, Glass   (Replaces: 814009)			Immediately	$ 9.95
38	261582		Grease		Appelez-nous	-
38	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
38	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
38	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 44.41
38	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
38	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
38	3148297		End Cap		Appelez-nous	-
38	313823		Screw (4)		Appelez-nous	-
38	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
38	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
38	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
38	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
38	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
38	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
38	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
38	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
38	242831		Wire (14 Ga. 200 C Red)				$ 342.23
38	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
38	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
38	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
38	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
38	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
38	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
38	WP261869		Citrine White (microwave)   (Replaces: 261869)				$ 23.85
38	254323		Touch-up, Oven		Appelez-nous	-
38	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
38	350942		Primer (white)   (Replaces: 206922)				$ 80.69
38	206925		Leveler, Enamel		Appelez-nous	-
38	261890		Harvest Gold		Appelez-nous	-
38	285365		Toast		Appelez-nous	-
38	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
38	285006		Enamel, Black   (Replaces: 799339)			Immediately	$ 51.34
38	350930		White   (Replaces: 799343)			Immediately	$ 34.39
38	261900		Citrine White (5 Oz.)				$ 51.34
38	799340		Black (uncut)		Appelez-nous	-
38	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
38	261891		Harvest Gold (uncut)		Appelez-nous	-
38	978883		Almond (uncut)		Appelez-nous	-
38	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
38	285368		Platinum (uncut)		Appelez-nous	-
