View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts

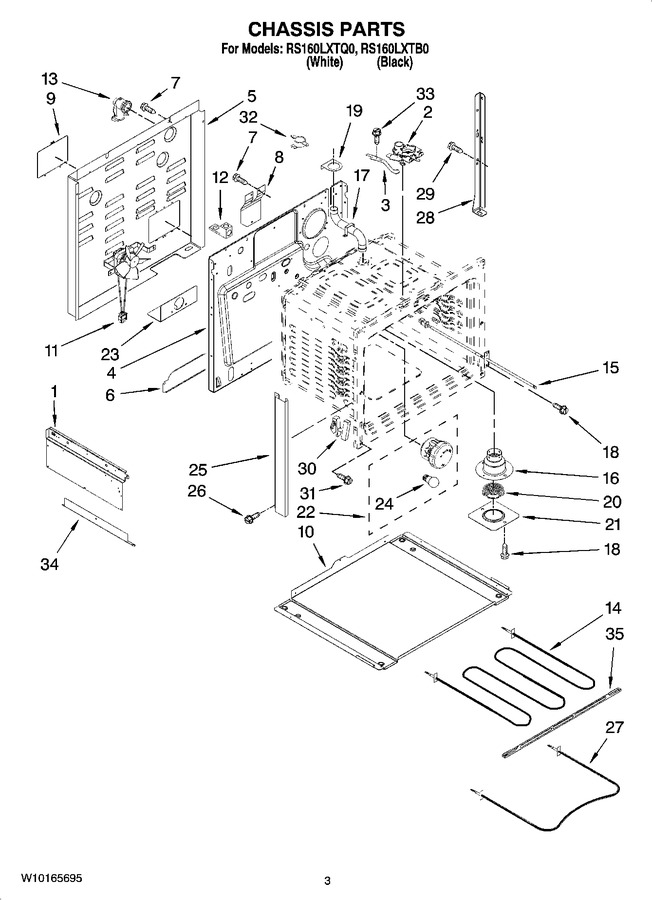

03 - Chassis Parts
04 - Door And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010821 | Panel, Shield (left) |
|
- | |||||
| 1 | 74010822 | Panel, Shield (right) |
|
- | |||||
| 2 | 74010897 | Latch Assembly |
|
- | |||||
| 3 | 74001075 | Lever, Lock (black) |
|
- | |||||
| 3 | 74002974 | Lever, Lock (gray) |
|
$ 45.72 | |||||
| 4 | W10166282 | Main Back |
|
- | |||||
| 5 | 74006096 | Cover, Main Wire |
|
- | |||||
| 6 | 74010815 | Extension, Back |
|
- | |||||
| 7 | WP90767 | Screw (Replaces: Y700502) |
|
Immediately | $ 7.04 | ||||
| 8 | 74006364 | Insulator, Cord |
|
- | |||||
| 9 | 74005264 | Panel, Access |
|
- | |||||
| 10 | 4003F067-51 | Base, Main (Replaces: 74011204) |
|
- | |||||
| 11 | WPW10586440 | Fan, Cooling (Replaces: 74010823) |
|
$ 286.74 | |||||
| 12 | WPW10281322 | Block, Bare Wire (Replaces: 74008298) |
|
$ 7.61 | |||||
| 13 | 74004223 | Connector, Cable |
|
- | |||||
| 14 | WP7406P218-60 | Element, Broil (Replaces: 74003040) |
|
Immediately | $ 152.28 | ||||
| 15 | 12001656 | Sensor, Oven (Replaces: 74004943) |
|
Immediately | $ 39.55 | ||||
| 16 | W10165822 | Tube, Vent Lower |
|
- | |||||
| 17 | 74010886 | Tube, Vent Upper |
|
- | |||||
| 18 | WP7101P434-60 | Screw (4) (Replaces: 71001394) |
|
$ 6.26 | |||||
| 19 | 74010817 | Holder, Vent Tube |
|
- | |||||
| 20 | 74008597 | Smoke Eliminator |
|
- | |||||
| 21 | W10165724 | Plate, Smoke Elm. |
|
- | |||||
| 22 | WP7407P182-60 | Light Assembly (Replaces: 74010885) |
|
Immediately | $ 66.10 | ||||
| 23 | W10190166 | Bracket, Pwr Supply (Replaces: 74004180) |
|
$ 8.32 | |||||
| 24 | 8009 | Bulb-oven (Replaces: 7407P103-60) |
|
Immediately | $ 16.80 | ||||
| 25 | W10165886 | Trim, Side (left White) |
|
- | |||||
| 25 | W10165887 | Trim, Side (left Black) |
|
- | |||||
| 25 | W10165884 | Trim, Side (right White) |
|
- | |||||
| 25 | W10165885 | Trim, Side (right Black) |
|
- | |||||
| 26 | WP74003976 | Screw,shoulder (4) (Replaces: 74003976) |
|
$ 6.47 | |||||
| 27 | WPW10310274 | Element, Bake (Replaces: 74010883) |
|
Immediately | $ 108.59 | ||||
| 28 | 74010884 | Support, Oven Rear |
|
- | |||||
| 29 | WP7101P434-60 | Screw (Replaces: 71001394) |
|
$ 6.26 | |||||
| 30 | 74011042 | Hinge (2) |
|
- | |||||
| 31 | WP4159193 | Screw, Hinge (4) (Replaces: 7101P112-60) |
|
$ 4.29 | |||||
| 32 | WP7450P034-60 | Switch, Hi-limit (Replaces: 74010818) |
|
$ 195.82 | |||||
| 33 | 74003975 | Screw, Lever (2) |
|
$ 12.02 | |||||
| 34 | 74010820 | Extention, Shield |
|
- | |||||
| 35 | 74003386 | Support, Element |
|
- | |||||
| 35 | 7002P456-60 | Insulation, Oven Bottom (Replaces: 74011207) |
|
- | |||||
| 35 | W10165725 | Insulation, Back |
|
$ 74.98 | |||||
| 35 | 74010987 | Insulation, Wrap |
|
$ 60.00 |
