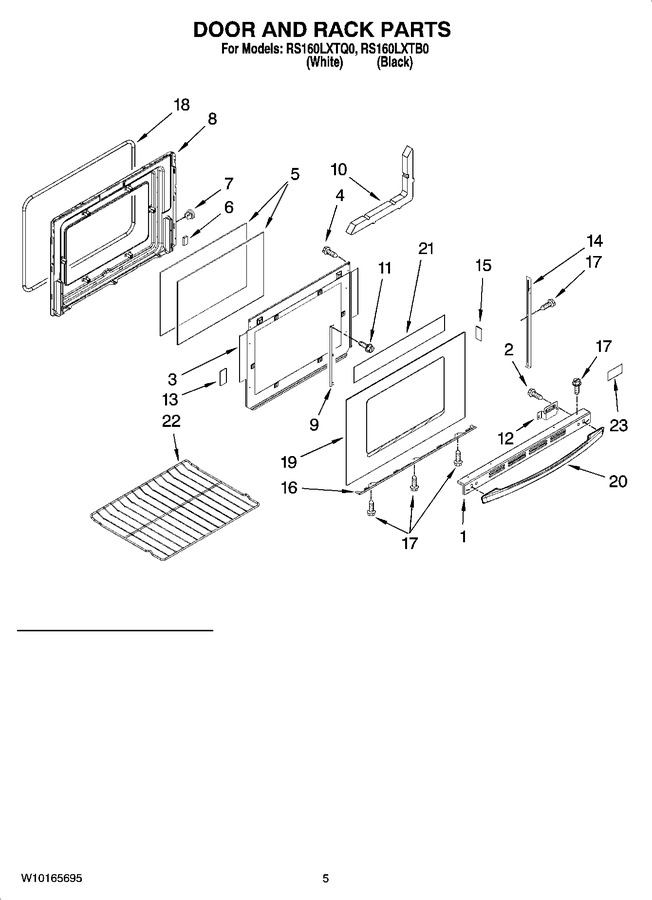

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door And Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10165729		Trim, Door Top (black)		Appelez-nous	-
1	W10165726		Trim, Door Top (white)		Appelez-nous	-
2	WP74006515		Screw, Handle (2)   (Replaces: 74011674)				$ 7.29
3	3601F373-51		Baffle, Retainer   (Replaces: 74011457)				$ 244.22
4	W11233072		Screw, (8ab 1/2)   (Replaces: 74001530)			Immediately	$ 12.62
5	74003645		Glass, Inner (2)			Immediately	$ 162.53
6	WP74005546		Spacer, Rubber   (Replaces: 74005546)				$ 9.48
7	WP74001574		Nut, Snap (4)   (Replaces: 74001574)			Immediately	$ 9.91
8	74011456		Liner, Door		Appelez-nous	-
9	74011458		Bracket, Glass (2)		Appelez-nous	-
10	74003647		Insulation, Door		Appelez-nous	-
11	WP90767		Screw   (Replaces: Y700502)			Immediately	$ 7.04
12	3801F831-45		Bracket, Handle (right)   (Replaces: 74009698)				$ 19.17
12	3801F832-45		Bracket, Handle (left)   (Replaces: 74009699)				$ 19.12
13	WP74004224		Tape, White   (Replaces: 74004224)				$ 10.53
14	74009693		Trim, Door Side (black - Left)		Appelez-nous	-
14	WP3608F117-71		Trim, Door Side (white - Left)   (Replaces: 74009695)				$ 111.43
14	74009692		Trim, Door Side (black - Right)		Appelez-nous	-
14	WP3608F116-71		Trim, Door Side (white - Right)   (Replaces: 74009694)				$ 112.01
15	WP74009014		Tape, Double Sided (white)   (Replaces: 74009014)				$ 6.91
15	74009025		Tape, Double Sided (black)				$ 8.60
16	WP3807F708-71		Trim, Door Bottom (white)   (Replaces: 74009687)				$ 144.83
16	74009686		Trim, Door Bottom (black)		Appelez-nous	-
17	WP98008544		Screw, Trim (white)   (Replaces: 74009540)				$ 11.89
17	W10828565		Screw, Trim (black)   (Replaces: 74009539)				$ 6.70
18	WPW10162384		Seal, Door   (Replaces: 7201P046-60)			Immediately	$ 77.61
19	W10165730		Glass, Door (white)		Appelez-nous	-
19	W10165731		Glass, Door (black (order Items 13 & 21 When Replacing Door Glass))		Appelez-nous	-
20	74008318		Handle, Door (black)		Appelez-nous	-
20	74008322		Handle, Door (white)		Appelez-nous	-
21	74003664		Tape, Foil		Appelez-nous	-
22	WPW10282492		Rack, Oven (2)   (Replaces: 74001757)			Immediately	$ 65.15
23	8303811		Nameplate, Logo				$ 29.09
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	74010893		Coil, Harness (lt)		Appelez-nous	-
	5171P556-60		Coil, Harness (rt)   (Replaces: 74010891)				$ 16.59
	74010890		Harness, Sensor				$ 34.51
	3191048		Cleaner, Glass		Appelez-nous	-
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 80.69
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)			Immediately	$ 51.34
	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 4.29
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 23.81
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
	261582		Grease		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	8019P013-60		Clip, Wire   (Replaces: 74006811)				$ 13.46
	5700P822-60		Cable, Assy.(flex)   (Replaces: 74011206)		Appelez-nous	-
	W10166773		Harness, Main		Appelez-nous	-
