SELECT A DIAGRAM

02 - Lower Oven Cabinet


03 - Ventilation, Literature


04 - Maintop And Oven

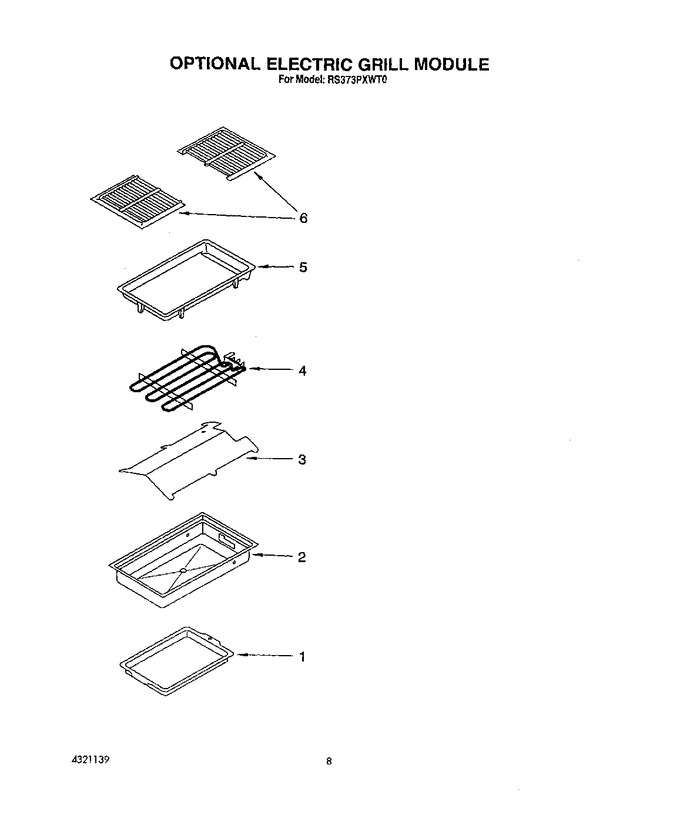

05 - Optional Electric Grill Module


06 - Optional Electric Coil Module


07 - Optional Solid Element Module


08 - Optional Glass Ceramic Module


09 - Control Panel


10 - Oven Door And Drawer


11 - Electrical Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786265		Pan, Grease		Appelez-nous	-
2	4320992		Pan, Module		Appelez-nous	-
3	4179156		Pan, Insert		Appelez-nous	-
4	WP660533		Element   (Replaces: 4315583)			Immediately	$ 39.47
5	4320993		Griddle (optional)		Appelez-nous	-
6	4157920		Grate, Grill		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
