02 - Lower Oven Cabinet


03 - Ventilation, Literature


04 - Maintop And Oven


05 - Optional Electric Grill Module


06 - Optional Electric Coil Module


07 - Optional Solid Element Module


08 - Optional Glass Ceramic Module


09 - Control Panel


10 - Oven Door And Drawer

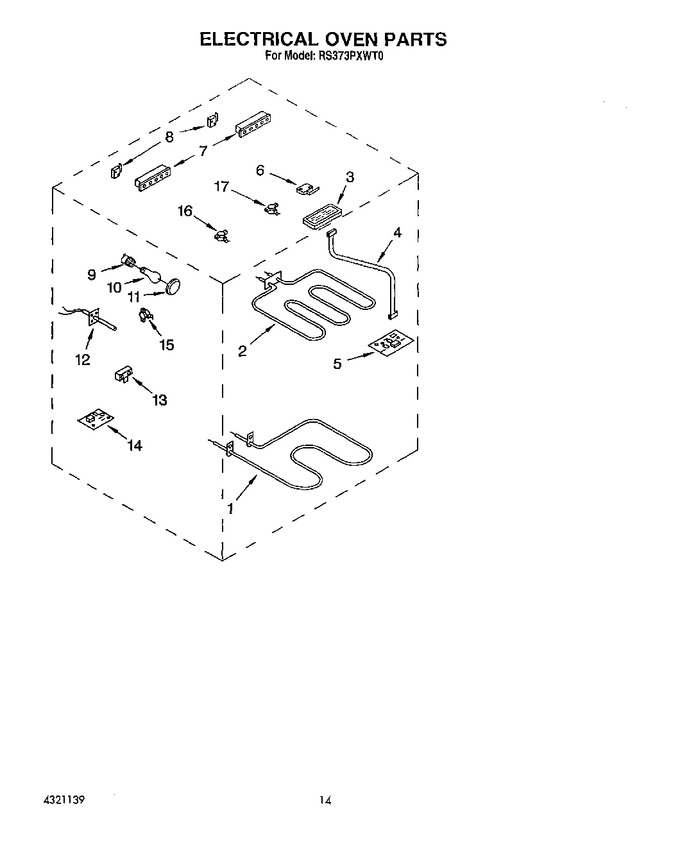

11 - Electrical Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP77001094		Element, Bake   (Replaces: 4315236)			Immediately	$ 39.58
2	4315235		Element, Broil		Appelez-nous	-
3	4321040		Board, Clock		Appelez-nous	-
4	4321065		Cable, Clock		Appelez-nous	-
5	4321066		P.c. Board, Clock		Appelez-nous	-
6	786127		Switch, Latch Upper		Appelez-nous	-
6	786669		Switch, Latch Lower		Appelez-nous	-
7	786196		Plug Block		Appelez-nous	-
8	4179178		Switch, Fan		Appelez-nous	-
9	WP74011278		Socket, Light   (Replaces: 4321075)				$ 101.56
10	8009		Bulb   (Replaces: 786742)			Immediately	$ 16.80
11	WP74011278		Lens, Light   (Replaces: 4320959)				$ 101.56
12	4315255		Sensor, Oven		Appelez-nous	-
13	4315225		Block, Terminal		Appelez-nous	-
14	4315256		P.c. Board, Oven		Appelez-nous	-
15	4321067		Switch, High Limit		Appelez-nous	-
16	786246		Switch, Fan Therminal		Appelez-nous	-
17	4321069		Switch, Self-clean		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
