SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Oven Door


03 - Control Panel, Optional


04 - Oven


05 - Wiring Harness

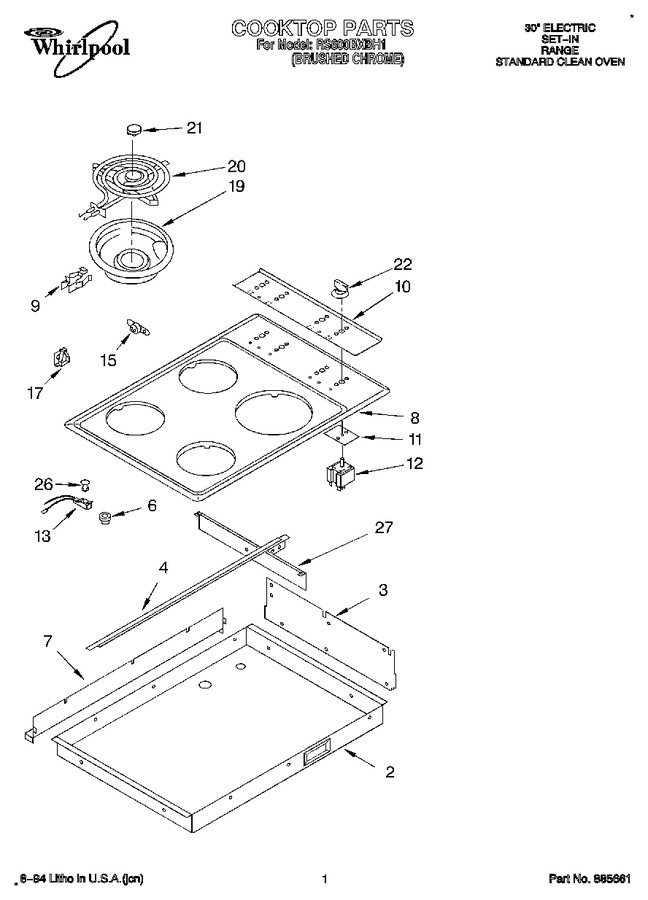

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3188769		Box, Burner		Appelez-nous	-
3	4159456		Screw (2)		Appelez-nous	-
3	3188527		Plate, Mounting		Appelez-nous	-
4	4159456		Screw (4)		Appelez-nous	-
4	3188766		Bracket, Mounting		Appelez-nous	-
6	258109		Bushing		Appelez-nous	-
7	3188528		Cover, Rear		Appelez-nous	-
7	4159456		Screw		Appelez-nous	-
8	3183904		Cooktop (brushed Chrome)		Appelez-nous	-
9	330031		Receptacle (4)   (Replaces: 312606)			Immediately	$ 14.48
10	3185692		Panel, Control		Appelez-nous	-
11	3183956		Seal, Switch				$ 41.81
12	155023		Screw (6)			Immediately	$ 7.91
12	3148968		6`` Unit (2)		Appelez-nous	-
12	WP3148966		Switch, Infinite 8`` Unit (2)   (Replaces: 3148966)				$ 130.35
13	3187778		Indicator Light		Appelez-nous	-
15	WP3188286		Thermostat   (Replaces: 3188286)				$ 66.13
15	WP313808		Screw (3)   (Replaces: 313808)				$ 6.84
17	814103		Clip, Hold Down (4)   (Replaces: 3148790)				$ 9.02
19	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 3150247)			Immediately	$ 18.70
19	WPW10196406		Reflector Pan 6`` (2)   (Replaces: 3150246)			Immediately	$ 12.05
20	WP660533		Unit, Surface 8`` (includes Illus. 21)   (Replaces: 660530)			Immediately	$ 39.47
20	WP660532		Unit, Surface 6``   (Replaces: 660528)			Immediately	$ 36.90
21	309195		Medallion, Unit		Appelez-nous	-
22	3183120		Knob, Control (4)		Appelez-nous	-
26	313602		Lens, Light		Appelez-nous	-
27	4159456		Screw		Appelez-nous	-
27	3187446		Shield, Heat		Appelez-nous	-
	3171507		Mounting Hardware		Appelez-nous	-
	LIT3188577		Tech Sheet		Appelez-nous	-
	LIT3188562		Use & Care Guide		Appelez-nous	-
	LIT3147396		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
