View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop, Literature
02 - Oven Door

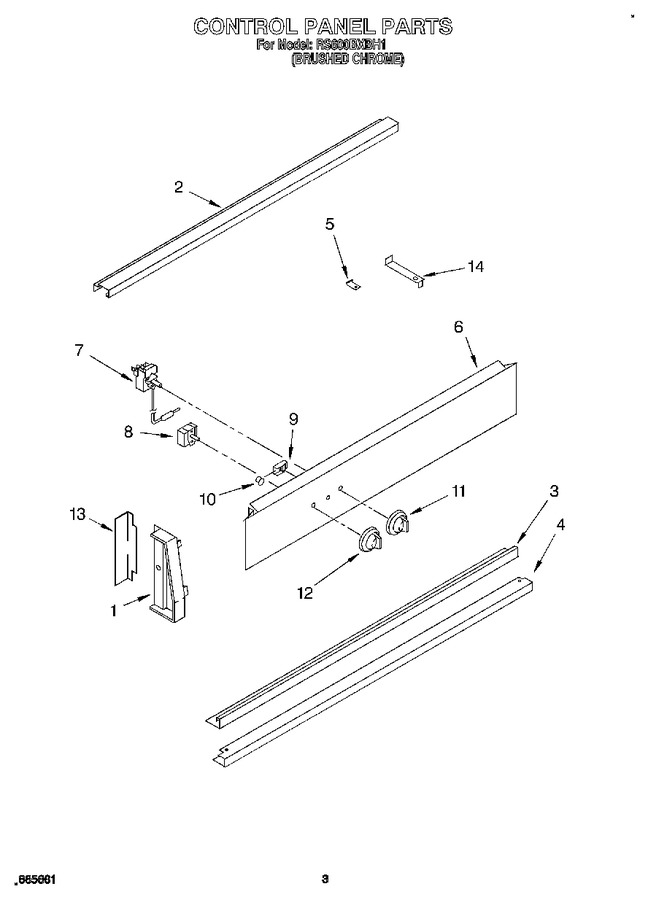

03 - Control Panel, Optional
04 - Oven
05 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148444 | End Cap (r.h.) |
|
- | |||||
| 1 | 3148445 | End Cap (l.h.) |
|
- | |||||
| 2 | 98520 | Screw (2) |
|
- | |||||
| 2 | 3148616 | Trim, Top |
|
- | |||||
| 3 | 3183358 | Trim, Center |
|
- | |||||
| 3 | 98520 | Screw (3) |
|
- | |||||
| 4 | 98520 | Screw (3) |
|
- | |||||
| 4 | 3184045 | Trim, Bottom |
|
- | |||||
| 5 | 342043 | Screw (2) |
|
- | |||||
| 5 | 3184170 | Bracket |
|
- | |||||
| 6 | 3182830 | Panel, Control |
|
- | |||||
| 7 | 3186941 | Screw (2) |
|
- | |||||
| 7 | 3169306 | Thermostat, Oven |
|
- | |||||
| 8 | 3186940 | Screw (2) |
|
- | |||||
| 8 | 3150430 | Switch, Selector |
|
$ 66.71 | |||||
| 9 | 314031 | Light, Indicator (250v) (includes No.10) |
|
$ 62.88 | |||||
| 10 | 313101 | Lens, Light |
|
- | |||||
| 11 | 3183106 | Knob, Thermostat |
|
- | |||||
| 12 | 3183109 | Knob, Selector |
|
- | |||||
| 13 | 3149900 | Trim, End Cap |
|
- | |||||
| 14 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 14 | 261886 | Coffee |
|
- | |||||
| 14 | 261890 | Harvest Gold |
|
- | |||||
| 14 | 285006 | Paint, Spray 13 Oz. (black) |
|
Immediately | $ 51.34 | ||||
| 14 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 14 | 206925 | Leveler (thinner) (2oz.) |
|
- | |||||
| 14 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 14 | 978883 | Almond (uncut) |
|
- | |||||
| 14 | 261889 | New Avocado (uncut) |
|
- | |||||
| 14 | 261887 | Coffee (uncut) |
|
- | |||||
| 14 | 261891 | Harvest Gold (uncut) |
|
- | |||||
| 14 | 799351 | Thinner (1 Gal.) |
|
- | |||||
| 14 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 14 | 261582 | Grease |
|
- | |||||
| 14 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 14 | 312752 | Support, Top Rail |
|
- | |||||
| 14 | WP965173 | Screw, (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 14 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 14 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 14 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 14 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 14 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 14 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 14 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 14 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 14 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 14 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 14 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 14 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 14 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 14 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 14 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 14 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 14 | 261888 | New Avocado |
|
- | |||||
| 14 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 14 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 14 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 |
