01 - Cook Top

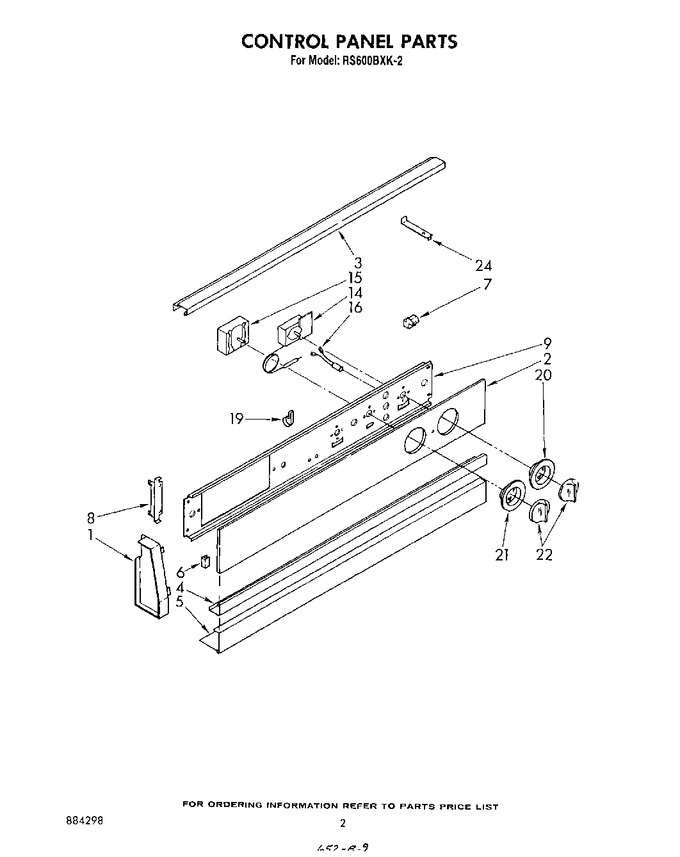

02 - Control Panel , Literature And Optional
03 - Oven
04 - Oven Door
05 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 310827 | End Cap (r.h.) |
|
- | |||||
| 1 | 310826 | End Cap (l.h.) |
|
- | |||||
| 1 | 308504 | End Cap (screw (2)) |
|
- | |||||
| 1 | 342043 | End Cap (screw (2)) |
|
- | |||||
| 2 | 311097 | Control Panel, Glass |
|
- | |||||
| 3 | 310819 | Rail, Top |
|
- | |||||
| 4 | 311195 | Trim, Center |
|
- | |||||
| 5 | 342043 | Screw (4) |
|
- | |||||
| 5 | WP965173 | Screw, 8a X 3/8 (3) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 5 | 312530 | Rail, Bottom |
|
- | |||||
| 6 | 310842 | Channel, Rubber (2) |
|
- | |||||
| 7 | 310823 | Retainer, Glass (4) |
|
- | |||||
| 8 | 98520 | Screw (4) |
|
- | |||||
| 8 | 310720 | Bracket, Control Panel (2) |
|
- | |||||
| 9 | 313381 | Clip |
|
- | |||||
| 9 | 313314 | Bracket, Control |
|
- | |||||
| 14 | 310861 | Thermostat, Oven (alt.) |
|
- | |||||
| 14 | 311495 | Thermostat, Oven (alt.) |
|
- | |||||
| 14 | 660564 | Thermostat, Oven |
|
- | |||||
| 15 | 155023 | Screw, 8-32 X 1/4 (2) |
|
Immediately | $ 7.91 | ||||
| 15 | 310932 | Switch, Selector (4 Position) |
|
- | |||||
| 16 | 308753 | Light, Indicator (250 V) |
|
- | |||||
| 19 | 166681 | Screw, 10-32 X 5/16 |
|
- | |||||
| 19 | 308609 | Strain, Relief |
|
- | |||||
| 20 | 311065 | Escutcheon, Thermostat |
|
- | |||||
| 21 | 254225 | Screw, 8 X 1/4 (2) |
|
- | |||||
| 21 | 311070 | Escutcheon, Selector |
|
- | |||||
| 22 | WP3150371 | Knob, Control (2) (Replaces: 310834) |
|
$ 19.40 | |||||
| 24 | 884298 | List, Parts |
|
- | |||||
| 24 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 24 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 24 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 24 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 24 | 261810 | Touch-up, Oven (1/2 Pt.) |
|
- | |||||
| 24 | 261582 | Grease |
|
- | |||||
| 24 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 24 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 24 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 24 | 261880 | Rotisserie Kit |
|
- | |||||
| 24 | 311433 | Installation Instructions |
|
- | |||||
| 24 | 311408 | Guide, Use & Care |
|
- | |||||
| 24 | 313358 | Book, Cooking Guide |
|
- | |||||
| 24 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 24 | 312752 | Support, Top Rail |
|
- | |||||
| 24 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 24 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 24 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 24 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 24 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 24 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 24 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 24 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 24 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 24 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 24 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 24 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 24 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 24 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 24 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 24 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 24 | 261888 | New Avocado |
|
- | |||||
| 24 | 261886 | Coffee |
|
- | |||||
| 24 | 261890 | Harvest Gold |
|
- | |||||
| 24 | 285006 | Paint, Spray 13 Oz. (black) |
|
Immediately | $ 51.34 | ||||
| 24 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 24 | 206925 | Leveler (thinner) (2oz.) |
|
- | |||||
| 24 | 799351 | Thinner (1 Gal.) |
|
- | |||||
| 487384 | Screw, 6-32 X 1/4 (2) |
|
- | ||||||
| 261891 | Harvest Gold (uncut) |
|
- | ||||||
| 261887 | Xcoffee (uncut) |
|
- | ||||||
| 261889 | Xnew Avocado (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 |
