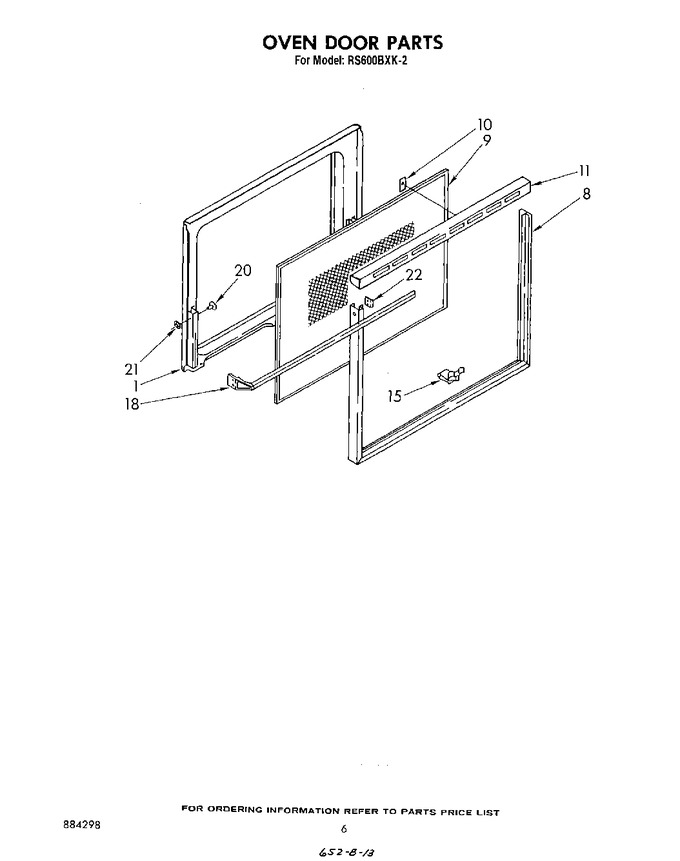

04 - Oven Door


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329688		Liner, Door		Appelez-nous	-
1	WP912618		Screw (4)   (Replaces: 308541)				$ 6.98
1	WP308685		Screw, 10a X 1\2 (3)   (Replaces: 253549)			Immediately	$ 7.08
8	310427		Frame, Door 30``		Appelez-nous	-
9	00573829		Glass, Outer Pano   (Replaces: 310655)			Immediately	$ 27.48
10	310705		Hold-down, Glass		Appelez-nous	-
11	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
11	310784		Top, Door Frame		Appelez-nous	-
15	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
15	310706		Clip, Glass (10)		Appelez-nous	-
18	312722		Handle, Oven Door				$ 118.10
20	312223		Pin, Wedge (2)		Appelez-nous	-
21	311896		Pushnut (2)		Appelez-nous	-
22	WP355515		Screw, 8 X 7/8 (4)   (Replaces: 355515)				$ 6.90
22	314235		Clip (2)		Appelez-nous	-
