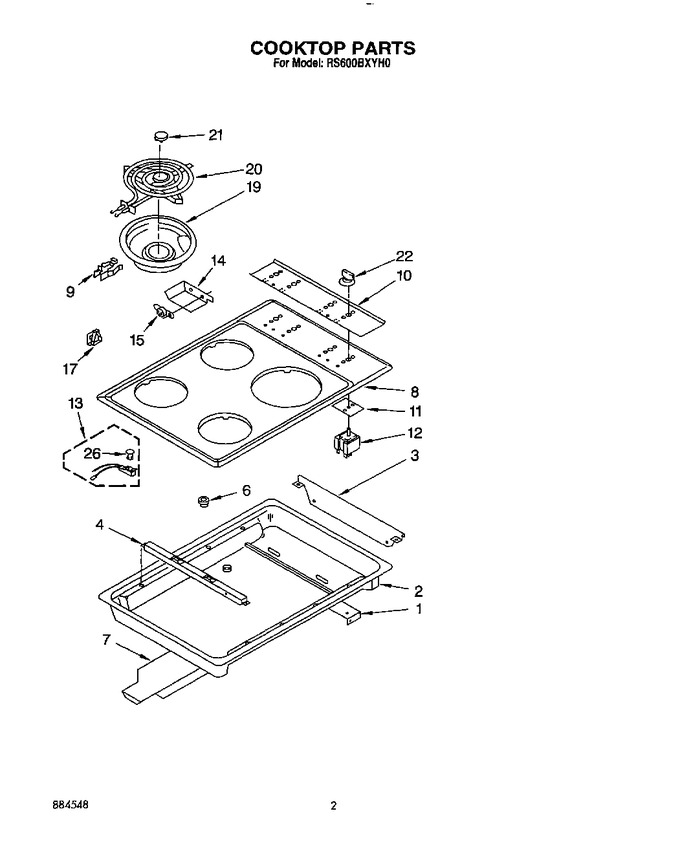

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488729 | Screw (4) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 1 | 310718 | Support, Burner Box (2) |
|
- | |||||
| 2 | 311019 | Box, Burner |
|
- | |||||
| 3 | WP488729 | Screw (2) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 3 | 310716 | Shield, Switch |
|
- | |||||
| 4 | WP488729 | Screw (4) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 4 | 310717 | Support, Cooktop |
|
- | |||||
| 6 | 258109 | Bushing |
|
- | |||||
| 7 | WP488729 | Screw (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 7 | 3147565 | Cover, Top Rear |
|
- | |||||
| 8 | 166681 | Screw |
|
- | |||||
| 8 | 3183904 | Cooktop (brushed Chrome) |
|
- | |||||
| 9 | 330031 | Receptacle (4) (Replaces: 3147829) |
|
Immediately | $ 14.48 | ||||
| 10 | 3183218 | Panel, Control |
|
- | |||||
| 11 | 3183956 | Seal, Switch |
|
$ 41.81 | |||||
| 12 | WP3148966 | Switch, Infinite 8`` Unit (2) (Replaces: 3148966) |
|
$ 130.35 | |||||
| 12 | 3148968 | 6`` Unit (2) |
|
- | |||||
| 12 | 155023 | Screw (6) |
|
Immediately | $ 7.91 | ||||
| 13 | 313462 | Indicator, Light (incudes No. 26) |
|
- | |||||
| 14 | 3147830 | Bracket, Sensor |
|
- | |||||
| 15 | WP313808 | Screw (3) (Replaces: 313808) |
|
$ 6.84 | |||||
| 15 | 3147833 | Thermostat |
|
$ 0.01 | |||||
| 17 | 814103 | Clip, Hold Down (4) (Replaces: 3148790) |
|
$ 9.02 | |||||
| 19 | W10196405RW | Reflector Pan (8`` (2)) (Replaces: 3150247) |
|
Immediately | $ 18.70 | ||||
| 19 | WPW10196406 | Reflector Pan 6`` (2) (Replaces: 3150246) |
|
Immediately | $ 12.05 | ||||
| 20 | WP660532 | Unit, Surface 6`` (Replaces: 660528) |
|
Immediately | $ 36.90 | ||||
| 20 | WP660533 | Unit, Surface 8`` (includes Illus. 21) (Replaces: 660530) |
|
Immediately | $ 39.47 | ||||
| 21 | 309195 | Medallion, Unit |
|
- | |||||
| 22 | 3183120 | Knob, Control (4) |
|
- | |||||
| 26 | 313602 | Lens, Light |
|
- | |||||
| LIT3182749 | Tech Sheet |
|
- | ||||||
| LIT3183764 | Use & Care Guide |
|
- | ||||||
| 3171507 | Mounting Hardware |
|
- | ||||||
| LIT3147396 | Installation Instructions |
|
- | ||||||
| LIT884548 | Repair Parts List |
|
- |
