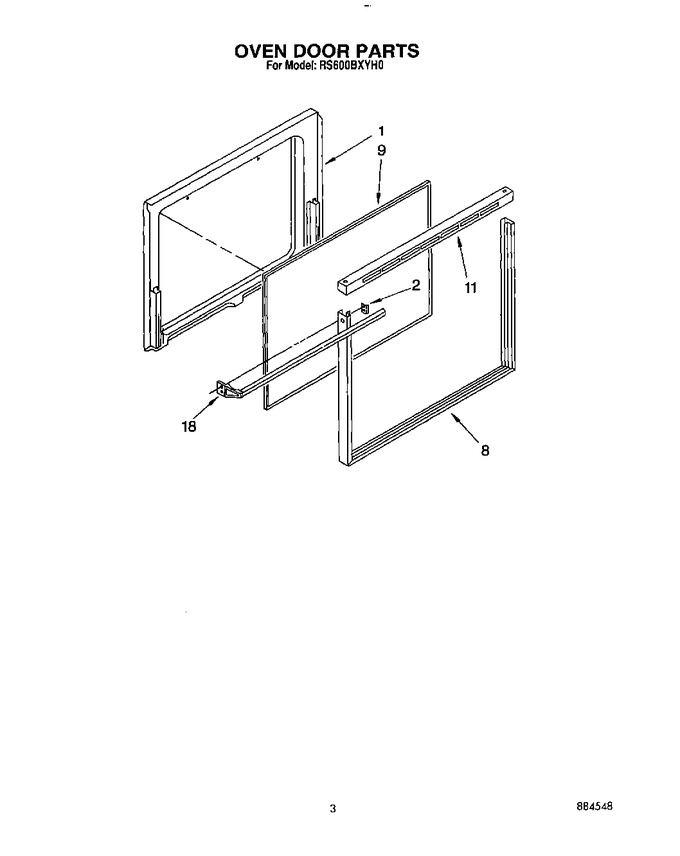

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3172221 | Liner, Door |
|
- | |||||
| 2 | 3148282 | Clip, Handle (2) |
|
$ 8.69 | |||||
| 8 | 3148235 | Frame, Door |
|
- | |||||
| 9 | 3148186 | Glass, Outer |
|
- | |||||
| 11 | 3148223 | Top, Door Frame |
|
- | |||||
| 11 | 3149333 | Screw (5) |
|
$ 5.33 | |||||
| 18 | WP355515 | Screw (4) (Replaces: 355515) |
|
$ 6.90 | |||||
| 18 | 3148228 | Handle, Oven Door |
|
- |
