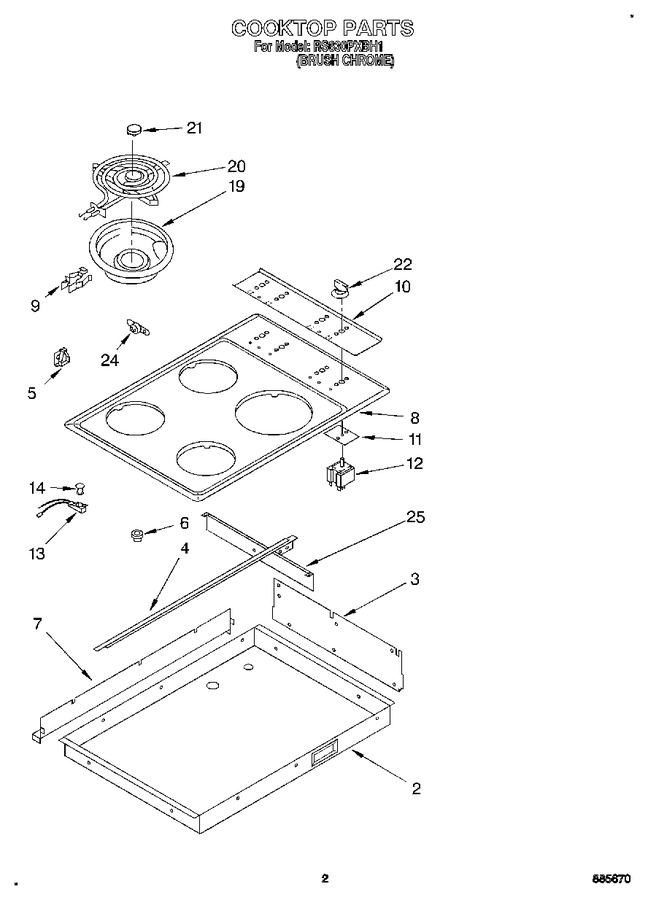

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3188769		Box, Burner		Appelez-nous	-
3	3188527		Plate, Cooktop Mounting		Appelez-nous	-
3	4159456		Screw		Appelez-nous	-
4	WP488729		Screw, 8-18 X 1/2 (4)   (Replaces: 313638)			Immediately	$ 7.01
4	342043		Screw (2)		Appelez-nous	-
4	3188766		Bracket, Mounting		Appelez-nous	-
5	814103		Clip, Hold Down (4)   (Replaces: 3148790)				$ 9.02
6	258109		Bushing		Appelez-nous	-
7	4159456		Screw		Appelez-nous	-
7	3188528		Cover, Top Rear		Appelez-nous	-
8	814103		Clip, Top Hold Down (4)   (Replaces: 3148790)				$ 9.02
8	3183904		Cooktop (brushed Chrome)		Appelez-nous	-
9	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
9	330031		Receptacle (4)   (Replaces: 312606)			Immediately	$ 14.48
10	3185692		Panel, Control		Appelez-nous	-
11	3183956		Seal, Switch				$ 41.81
12	3148968		Switch, Infinite (use W/6`` Surface Unit (2))		Appelez-nous	-
12	155023		Switch, Infinite (screw (8))			Immediately	$ 7.91
12	WP3148966		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 3148966)				$ 130.35
13	3187778		Indicator Light		Appelez-nous	-
14	313602		Lens, Indicator		Appelez-nous	-
19	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 3150247)			Immediately	$ 18.70
19	WPW10196406		Reflector Pan 6`` (2)   (Replaces: 3150246)			Immediately	$ 12.05
20	WP660533		Unit, Surface 8`` (includes Illus. 21)   (Replaces: 660531)			Immediately	$ 39.47
20	WP660532		Unit, Surface 6``   (Replaces: 660529)			Immediately	$ 36.90
21	309195		Medallion, Surface Unit		Appelez-nous	-
22	3183120		Knob, Control (4)		Appelez-nous	-
24	WP313808		Screw, 6-32 (7)   (Replaces: 313808)				$ 6.84
24	WP3188286		Thermostat   (Replaces: 3188286)				$ 66.13
25	4159456		Screw		Appelez-nous	-
25	3187446		Shield, Heat		Appelez-nous	-
