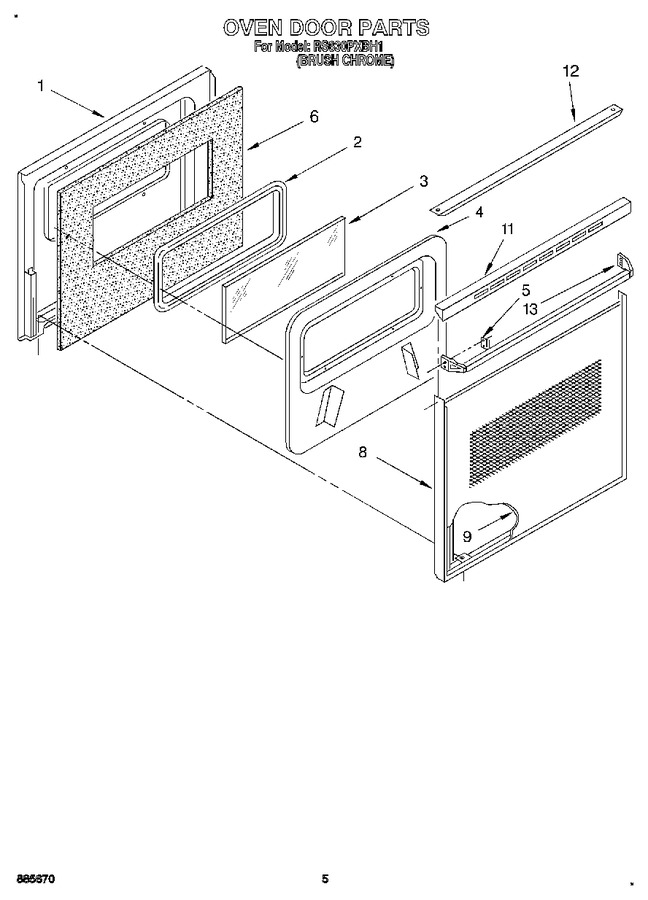

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3170712		Liner, Door		Appelez-nous	-
2	3148183		Seal, Glass				$ 7.41
3	3169202		Glass, Inner		Appelez-nous	-
4	3185647		Screw		Appelez-nous	-
4	3148287		Baffle, Insulation		Appelez-nous	-
5	3148282		Clip, Handle Mtg. (2)				$ 8.69
6	3147954		Insulation		Appelez-nous	-
8	307748		Screw (3)		Appelez-nous	-
8	3148235		Frame, Door		Appelez-nous	-
9	3188054		Glass, Outer Pano		Appelez-nous	-
11	3148223		Top, Door Frame		Appelez-nous	-
11	3149333		Screw (5)				$ 5.33
12	3181366		Cap, Top		Appelez-nous	-
13	WP355515		Screw (4)   (Replaces: 355515)				$ 6.90
13	3187940		Handle, Oven Door				$ 107.32
