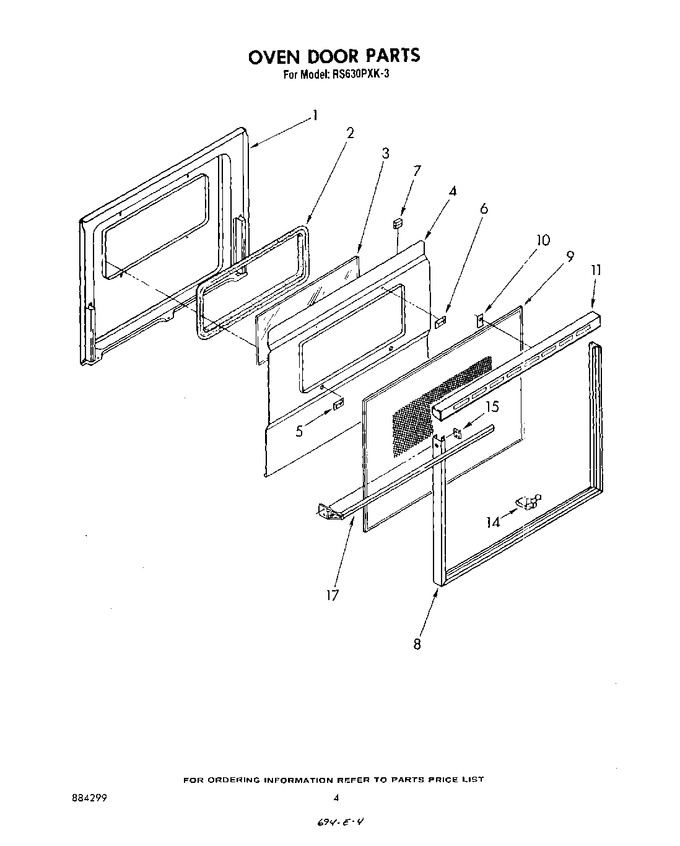

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311896		Pushnut (2)		Appelez-nous	-
1	311056		Screw, (4)		Appelez-nous	-
1	329685		Liner, Door		Appelez-nous	-
1	312223		Pin, Wedge (2)		Appelez-nous	-
2	258711		Seal, Pano Glass		Appelez-nous	-
3	258988		Glass, Inner 30``		Appelez-nous	-
4	307924		Baffle, Insulation		Appelez-nous	-
5	258990		Spacer, Insulation Baffle (2)		Appelez-nous	-
5	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
6	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
6	258990		Spacer, Insulation Baffle (2)		Appelez-nous	-
7	312783		Channel, Rubber (4)		Appelez-nous	-
8	310427		Frame, Door 30``		Appelez-nous	-
9	309069		Glass, Outer		Appelez-nous	-
10	310705		Hold Down, Glass (2)		Appelez-nous	-
11	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
11	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
11	310428		Top, Door Frame		Appelez-nous	-
14	310706		Clip, Glass (10)		Appelez-nous	-
15	314235		Clip (2)		Appelez-nous	-
17	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23
17	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
17	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
17	261810		Touch-up Oven (1 Oz.)		Appelez-nous	-
17	261582		Grease		Appelez-nous	-
17	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
17	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
17	312722		Handle, Oven Door				$ 118.10
17	WP355515		Screw, Handle (4)   (Replaces: 355515)				$ 6.90
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	LIT311410		Guide, Use & Care		Appelez-nous	-
	LIT311433		Instructions, Installation		Appelez-nous	-
	LIT884299		List, Repair Parts		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
