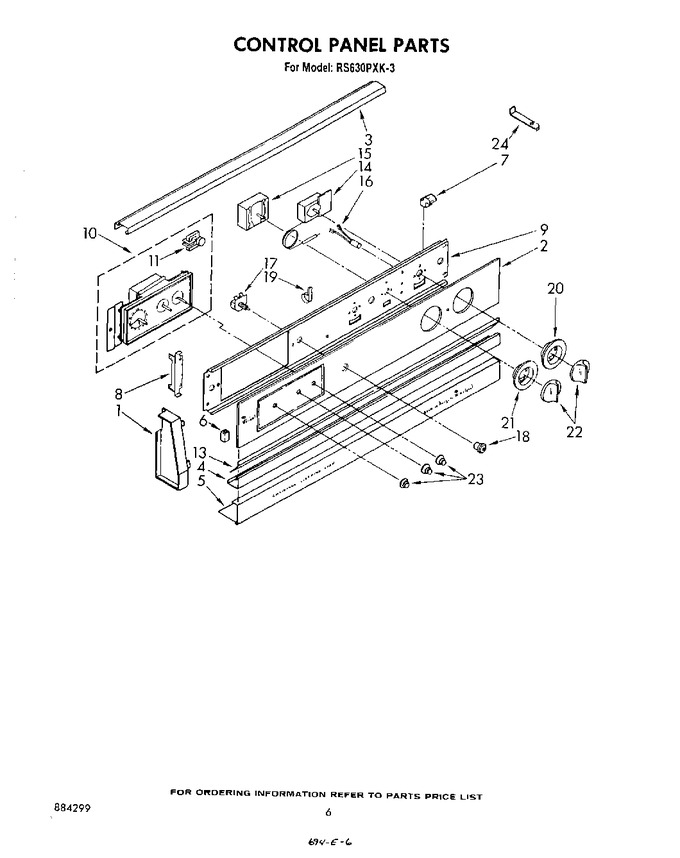

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	342043		End Cap (screw (2))		Appelez-nous	-
1	310826		End Cap (l.h.)		Appelez-nous	-
1	310827		End Cap (r.h.)		Appelez-nous	-
1	308504		End Cap (screw (2))		Appelez-nous	-
2	313882		Control Panel, Glass		Appelez-nous	-
3	310819		Rail, Top		Appelez-nous	-
4	311195		Trim, Center		Appelez-nous	-
5	WP965173		Screw, 8a X 3/8 (3)   (Replaces: 246132)			Immediately	$ 9.65
5	312531		Rail, Bottom		Appelez-nous	-
6	310842		Channel, Rubber (2)		Appelez-nous	-
7	310823		Retainer, Glass (4)		Appelez-nous	-
8	98520		Screw (4)		Appelez-nous	-
8	310720		Bracket, Control Panel (2)		Appelez-nous	-
9	313381		Clip		Appelez-nous	-
9	313314		Bracket, Control		Appelez-nous	-
10	3148051		Timer		Appelez-nous	-
11	309822		Motor, Timer		Appelez-nous	-
13	313316		Seal, Backguard		Appelez-nous	-
14	310861		Thermostat, Oven (alt.)		Appelez-nous	-
14	311495		Thermostat, Oven (alt.)		Appelez-nous	-
14	660564		Thermostat, Oven		Appelez-nous	-
15	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
15	310866		Switch, Selector (4 Position)		Appelez-nous	-
16	308753		Light, Indicator (250 V)		Appelez-nous	-
17	312796		Lockwasher		Appelez-nous	-
17	312581		Switch, Oven Light		Appelez-nous	-
17	WP965173		Screw, 8a X 3/8 (4)   (Replaces: 246132)			Immediately	$ 9.65
18	313030		Bezel Switch		Appelez-nous	-
19	166681		Screw, 10-32 X 5/16		Appelez-nous	-
19	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
19	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
20	311065		Escutcheon, Thermostat		Appelez-nous	-
21	WP311069		Escutcheon, Selector   (Replaces: 311069)				$ 50.22
21	254225		Screw, 8 X 1/4 (2)		Appelez-nous	-
22	WP3150371		Knob, Control (2)   (Replaces: 310834)				$ 19.40
23	313311		Spring		Appelez-nous	-
23	330206		Knob, Timer (3)		Appelez-nous	-
24	312752		Support, Top Rail		Appelez-nous	-
	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
