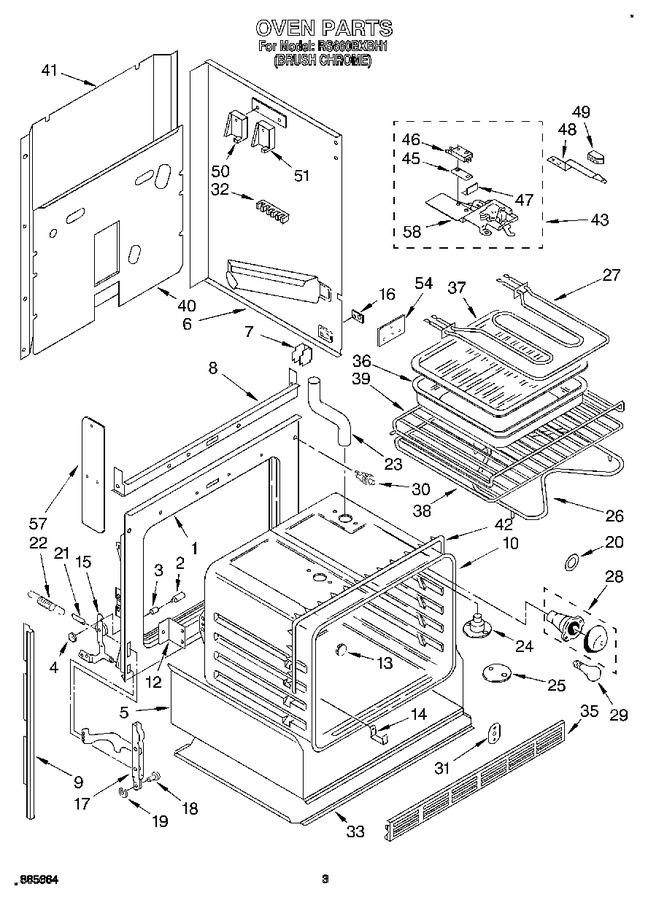

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186975		Frame Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	3185944		Insulation Tray		Appelez-nous	-
6	3185954		Side Wrapper R.h.		Appelez-nous	-
6	3185957		Side Wrapper L.h.		Appelez-nous	-
7	311774		Support, Side Wrapper (4)		Appelez-nous	-
7	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
8	3183796		Baffle, Top Insulation		Appelez-nous	-
9	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
9	310685		Side Trim R.s.		Appelez-nous	-
9	310689		Side Trim L.s.		Appelez-nous	-
10	3182032		Oven 30``		Appelez-nous	-
10	311056		Screw (3)		Appelez-nous	-
12	WP681414		Screw (6)   (Replaces: 343641)			Immediately	$ 7.07
12	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
13	3182814		Button, Plug		Appelez-nous	-
14	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
15	3185663		Hinge, Ear (left Side)		Appelez-nous	-
15	3185662		Hinge, Ear (right Side)		Appelez-nous	-
16	310659		Plate, Side Panel (2)		Appelez-nous	-
16	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
17	3185664		Channel Arm (2)				$ 54.97
18	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
19	307594		Retainer Ring (2)		Appelez-nous	-
20	WP3184533		Gasket, Light   (Replaces: 3184533)			Immediately	$ 7.73
21	WP308125		Anchor, Spring (2)   (Replaces: 311897)				$ 10.94
22	308127		Spring, Oven Door (2)				$ 11.75
23	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
23	310835		Extension, Vent		Appelez-nous	-
24	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
24	310839		Eliminator, Smoke		Appelez-nous	-
25	310662		Plate, Cover		Appelez-nous	-
25	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
26	WP308180		Unit, Bake   (Replaces: 661170)				$ 96.92
26	3150532		Screw (2)		Appelez-nous	-
27	WP660579		Unit, Broil   (Replaces: 660579)				$ 140.80
27	3150532		Screw (2)		Appelez-nous	-
28	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	310345		Switch, Door				$ 94.86
31	3184208		Plate, Cover		Appelez-nous	-
32	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
32	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
33	3185945		Cover, Bottom & Top		Appelez-nous	-
35	309029		Screw, Black 8-15 X 1/2 (3)		Appelez-nous	-
35	310668		Grill, Bottom				$ 556.11
36	4396923		Pan, Broiler   (Replaces: 3147845)			Immediately	$ 52.04
37	4396923		Grill, Broiler Pan   (Replaces: 3147563)			Immediately	$ 52.04
38	3185641		Rack, Oven (straight)				$ 67.33
39	3185640		Rack, Oven Offset		Appelez-nous	-
40	3182052		Panel, Back		Appelez-nous	-
40	WP488729		Screw (6)   (Replaces: 3148107)			Immediately	$ 7.01
41	WP488729		Screw (12)   (Replaces: 3148107)			Immediately	$ 7.01
41	247326		Screw		Appelez-nous	-
41	3185960		Cover, Rear		Appelez-nous	-
42	3185197		Seal, Door		Appelez-nous	-
43	3171148		Latch & Switch Assembly		Appelez-nous	-
45	309245		Insulator, Switch		Appelez-nous	-
46	3186934		Safety Switch		Appelez-nous	-
46	98106		Screw (2)		Appelez-nous	-
47	311056		Screw (2)		Appelez-nous	-
47	313035		Terminal, Shield		Appelez-nous	-
47	309258		Screw (2)		Appelez-nous	-
47	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
48	310825		Latch, Handle		Appelez-nous	-
48	308422		Screw (2)		Appelez-nous	-
49	3183294		Screw		Appelez-nous	-
49	3184039		Knob, Latch Handle		Appelez-nous	-
50	314215		Screw		Appelez-nous	-
50	314209		Switch, Broil		Appelez-nous	-
51	314215		Screw		Appelez-nous	-
51	314210		Switch, Bake		Appelez-nous	-
54	308043		Screw (2)		Appelez-nous	-
54	3183005		Coverplate (2)		Appelez-nous	-
54	WP488729		Screw (2)   (Replaces: 313638)			Immediately	$ 7.01
57	311256		Baffle		Appelez-nous	-
57	3148442		Screw (2)		Appelez-nous	-
58	3149270		Latch, Lock		Appelez-nous	-
58	310435		Insulation, Oven		Appelez-nous	-
58	3149328		Insulation, Top		Appelez-nous	-
58	310433		Insulation, Wrap		Appelez-nous	-
