SELECT A DIAGRAM

01 - Control Panel, Literature


02 - Oven

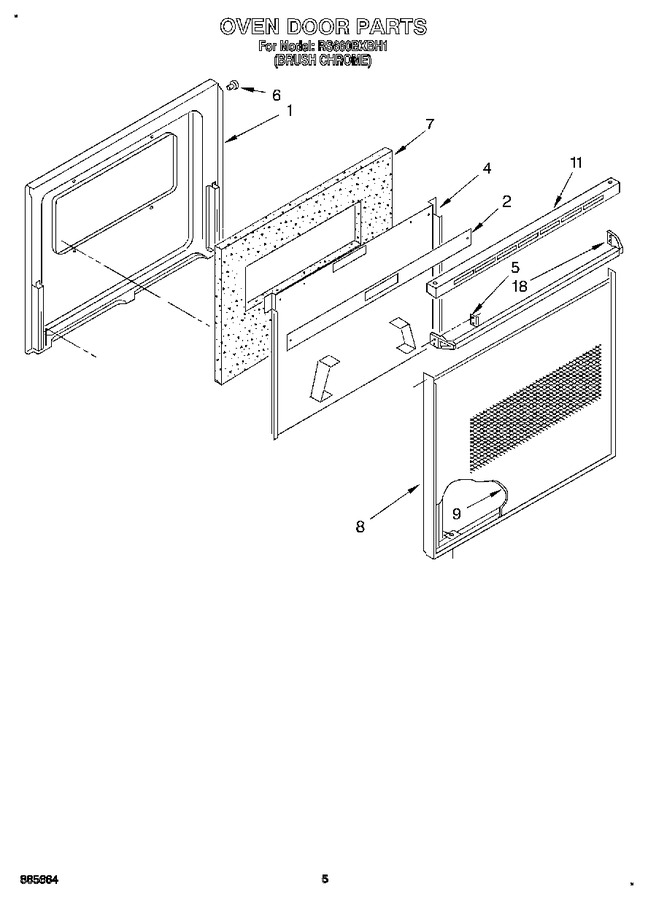

03 - Oven Door


04 - Cooktop


05 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3149333		Screw (5)				$ 5.33
1	WP488729		Screw   (Replaces: 313638)			Immediately	$ 7.01
1	3172219		Liner, Door		Appelez-nous	-
2	3148680		Shield, Door		Appelez-nous	-
4	3185647		Screw (4)		Appelez-nous	-
4	3148160		Retainer, Insulation		Appelez-nous	-
5	3148282		Clip, Handle Mtg. (2)				$ 8.69
6	3148182		Bumper, Door		Appelez-nous	-
7	3147951		Insulation, Door		Appelez-nous	-
8	307748		Screw (3)		Appelez-nous	-
8	3148235		Frame, Door		Appelez-nous	-
9	254225		Screw (2)		Appelez-nous	-
9	3148186		Glass, Outer Pano		Appelez-nous	-
11	3148223		Top, Door Frame		Appelez-nous	-
11	307748		Screw		Appelez-nous	-
18	WP355515		Screw (4)   (Replaces: 355515)				$ 6.90
18	3187940		Handle, Oven Door				$ 107.32

    View Diagram in Separate Window       Print Part List
