02 - Oven
03 - Control Panel
04 - Door
05 - Wiring Harness , Literature And Optional
06 - Cooktop
SELECT A DIAGRAM
New Model Search:

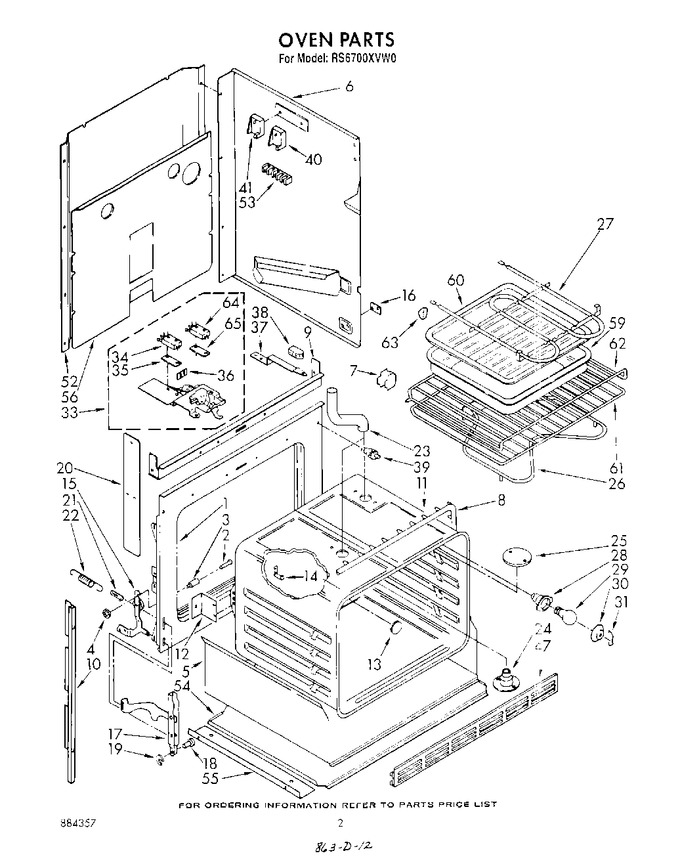

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3170856 | Frame, Front |
|
- | |||||
| 2 | 307985 | Pin, Hinge Ear (2) |
|
$ 29.54 | |||||
| 3 | 309111 | Snubber, Door (2) |
|
- | |||||
| 4 | 308306 | Pushnut (2) |
|
- | |||||
| 5 | 310770 | Insulation Tray |
|
- | |||||
| 6 | 311006 | Side Wrapper (right Side) |
|
- | |||||
| 6 | WP488729 | Screw (14) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 6 | 311009 | Side Wrapper (left Side) |
|
- | |||||
| 6 | WP681414 | Screw, Ground (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 7 | 311774 | Support, Side Wrapper (4) |
|
- | |||||
| 7 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 8 | 3148284 | Gasket, Door |
|
- | |||||
| 9 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 9 | 310693 | Baffle, Top Insulation |
|
- | |||||
| 10 | 310685 | Side Trim L.h. |
|
- | |||||
| 10 | WP313808 | Screw (4) (Replaces: 313808) |
|
$ 6.84 | |||||
| 10 | WP488729 | Screw (8) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 10 | 310689 | Side Trim (r.h.) |
|
- | |||||
| 11 | 311056 | Screw (3) |
|
- | |||||
| 11 | 328756 | Oven (30`` Pyro) |
|
- | |||||
| 12 | 246127 | Screw (2) |
|
- | |||||
| 12 | 310713 | Bracket, Oven Mounting (2) |
|
- | |||||
| 13 | 257314 | Plug Button |
|
- | |||||
| 14 | 98005642 | Clip, Therm Bulb (2) (Replaces: 313382) |
|
Immediately | $ 74.64 | ||||
| 15 | 328801 | Hinge Ear, R.h. |
|
- | |||||
| 15 | 328802 | Hinge Ear, L.h. |
|
- | |||||
| 16 | WP308544 | Screw (4) (Replaces: 308544) |
|
Immediately | $ 6.98 | ||||
| 16 | 310659 | Plate, Side Panel (2) |
|
- | |||||
| 17 | 329713 | Channel Arm (2) |
|
- | |||||
| 18 | WP307986 | Pin, Hinge (2) (Replaces: 307986) |
|
$ 11.78 | |||||
| 19 | 307594 | Ring, Retainer (2) |
|
- | |||||
| 20 | 311256 | Baffle, Insulation |
|
- | |||||
| 20 | 3148442 | Screw (2) |
|
- | |||||
| 21 | WP308125 | Anchor, Spring (2) (Replaces: 308125) |
|
$ 10.94 | |||||
| 22 | WP308126 | Spring, Oven Door (2) (Replaces: 308126) |
|
$ 38.15 | |||||
| 23 | 310835 | Tube, Vent |
|
- | |||||
| 23 | WP681414 | Screw, Ground (6) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 23 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 23 | WP488729 | Screw Extension (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 24 | 98520 | Screw |
|
- | |||||
| 24 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 24 | 310839 | Eliminator, Smoke |
|
- | |||||
| 25 | 310662 | Plate, Cover |
|
- | |||||
| 25 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 26 | WP308180 | Unit, Bake (Replaces: 661170) |
|
$ 96.92 | |||||
| 26 | 312318 | Screw (2) |
|
- | |||||
| 27 | WP660579 | Unit, Broil (Replaces: 660579) |
|
$ 140.80 | |||||
| 28 | 308043 | Screw (2) |
|
- | |||||
| 28 | 660556 | Socket, Oven Light |
|
- | |||||
| 29 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 30 | 308039 | Cover, Light |
|
- | |||||
| 31 | 308038 | Retainer, Light |
|
- | |||||
| 32 | 3149270 | Latch, Lock Oven Light |
|
- | |||||
| 33 | 3171148 | Latch Assembly |
|
- | |||||
| 33 | 311056 | Screw (2) |
|
- | |||||
| 33 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 34 | 98106 | Screw (2) |
|
- | |||||
| 34 | 308185 | Safety Switch |
|
- | |||||
| 35 | 309245 | Insulator, Switch |
|
- | |||||
| 36 | 309258 | Screw |
|
- | |||||
| 36 | 311056 | Screw (2) |
|
- | |||||
| 36 | 313035 | Terminal, Shield |
|
- | |||||
| 37 | 308422 | Screw (2) |
|
- | |||||
| 37 | 310825 | Latch, Handle |
|
- | |||||
| 38 | 311253 | Knob, Latch Handle |
|
- | |||||
| 38 | 246135 | Screw |
|
- | |||||
| 39 | 310345 | Switch, Door |
|
$ 94.86 | |||||
| 40 | 314209 | Switch, Percentage Broil |
|
- | |||||
| 40 | 314215 | Screw |
|
- | |||||
| 41 | 314210 | Switch, Percentage Bake |
|
- | |||||
| 41 | 314215 | Screw |
|
- | |||||
| 41 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 47 | 310668 | Bottom Grill |
|
$ 556.11 | |||||
| 47 | 309029 | Screw (3) |
|
- | |||||
| 52 | 609989 | Screw |
|
- | |||||
| 52 | 311012 | Cover, Rear |
|
- | |||||
| 52 | WP488729 | Screw (12) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 52 | 247326 | Screw (2) |
|
- | |||||
| 53 | 308043 | Screw (2) |
|
- | |||||
| 53 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 7.16 | |||||
| 53 | WP8203546 | Terminal Block (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 54 | 310458 | Cover, Bottom & Top (2) |
|
- | |||||
| 55 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 55 | 311592 | Angle, Support (2) |
|
- | |||||
| 56 | WP488729 | Screw (6) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 56 | 310459 | Panel, Back |
|
- | |||||
| 59 | 4396923 | Pan, Broiler (Replaces: 310976) |
|
Immediately | $ 52.04 | ||||
| 60 | 4396923 | Grid, Broiler Pan (Replaces: 258171) |
|
Immediately | $ 52.04 | ||||
| 61 | 308173 | Rack, Oven |
|
- | |||||
| 62 | 308172 | Rack, Oven (offset) |
|
- | |||||
| 63 | WP488729 | Screw (2) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 63 | 312318 | Screw (2) |
|
- | |||||
| 63 | 311982 | Coverplate (2) |
|
- | |||||
| 64 | 3148669 | Switch, Lock |
|
- | |||||
| 65 | 3149328 | Insulation, Top |
|
- | |||||
| 65 | 3147864 | Insulator, Switch |
|
- | |||||
| 65 | 310433 | Insulation, Wrap |
|
- | |||||
| 65 | 310434 | Insulation, Oven |
|
- |
