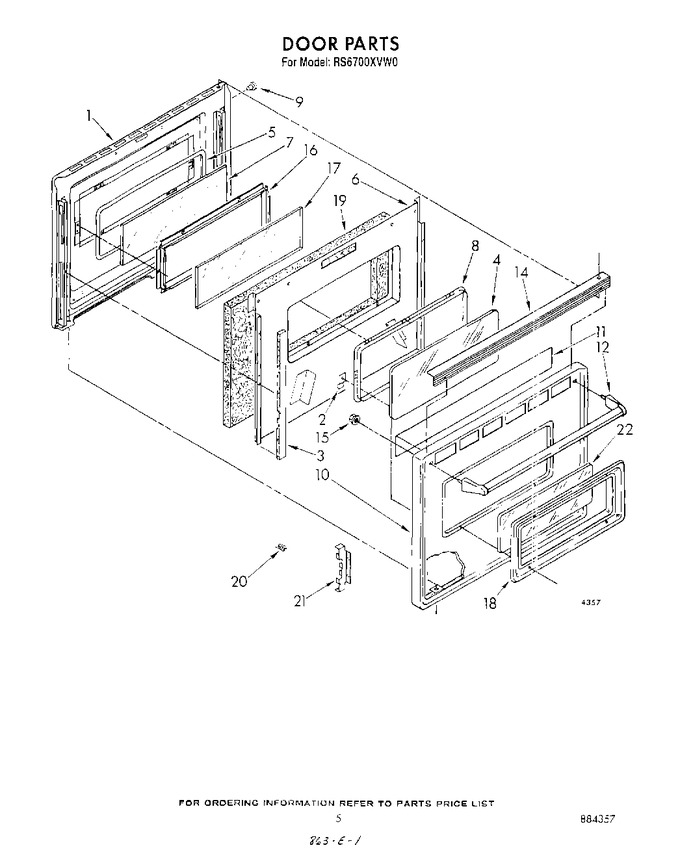

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3149333		Screw (2)				$ 5.33
1	3170706		Liner, Door		Appelez-nous	-
2	307731		Clip (2)		Appelez-nous	-
3	3148441		Seal, Foam		Appelez-nous	-
4	3148178		Glass, Reflective		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148159		Retainer, Insulation		Appelez-nous	-
6	3148443		Screw (4)		Appelez-nous	-
7	WP3169203		Glass, Inside   (Replaces: 313004)				$ 135.71
8	3148443		Screw (4)		Appelez-nous	-
8	307792		Retainer, Glass (2)		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3148201		White		Appelez-nous	-
10	3148205		Almond		Appelez-nous	-
11	3148184		Foil, Door		Appelez-nous	-
12	311563		Handle, Door				$ 103.11
12	WP308499		Nut (2)   (Replaces: 308499)				$ 6.26
14	3148188		Trim, Panel		Appelez-nous	-
14	307748		Screw (3)		Appelez-nous	-
15	WP308499		Clip, Mtg (2)   (Replaces: 308499)				$ 6.26
16	3148443		Screw (6)		Appelez-nous	-
16	3148234		Frame, Glass		Appelez-nous	-
17	WP3169203		Glass, Outer   (Replaces: 313005)				$ 135.71
18	3149277		Frame, Window				$ 93.12
19	3147951		Insulation		Appelez-nous	-
20	3148181		Fastner, Pushnut		Appelez-nous	-
21	3148187		Retainer, Glass		Appelez-nous	-
22	313045		Screw (8)		Appelez-nous	-
22	309133		Screw (2)		Appelez-nous	-
22	307732		Glass, Outer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
