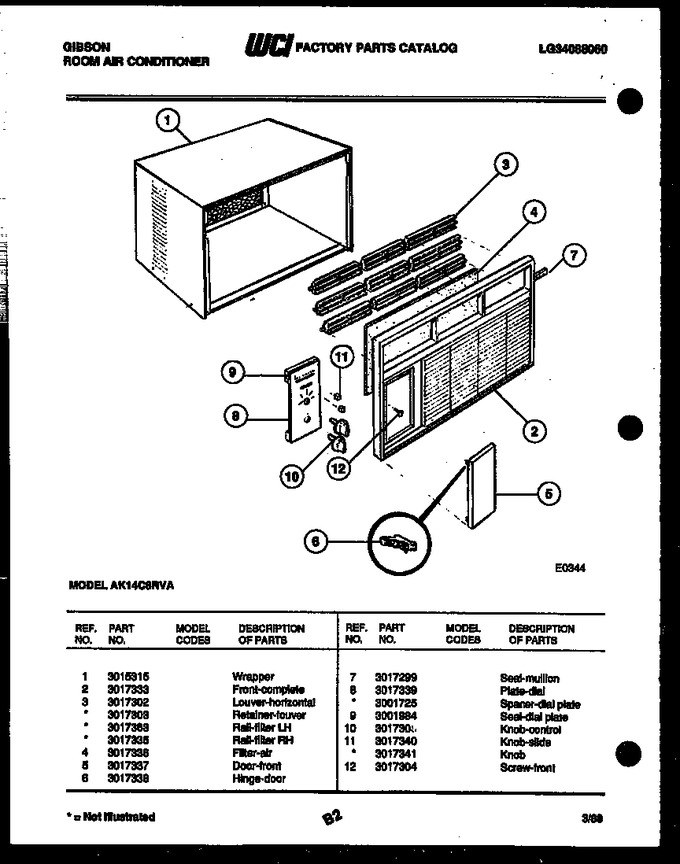

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015315 | Wrapper |
|
- | |||||
| 2 | 3017333 | Front-complete |
|
- | |||||
| 3 | 3017302 | Louver-horizontal |
|
- | |||||
| 4 | 3017336 | Filter-air |
|
- | |||||
| 5 | 3017337 | Door-front |
|
- | |||||
| 6 | 3017338 | Hinge-door |
|
- | |||||
| 7 | 3017299 | Seal Mullion |
|
- | |||||
| 8 | 3017339 | Plate-dial |
|
- | |||||
| 9 | 3001984 | Seal-dial Plate |
|
- | |||||
| 10 | 3017300 | Knob-control |
|
- | |||||
| 11 | 3017340 | Knob-slide |
|
- | |||||
| 12 | 3017304 | Screw-front |
|
- | |||||
| 11A | 3017341 | Knob (non-illustrated) |
|
- | |||||
| 3A | 3017303 | Retainer-louver (non-illustrated) |
|
- | |||||
| 3B | 3017363 | Rail-filter Lh (non-illustrated) |
|
- | |||||
| 3C | 3017335 | Rail-filter Rh (non-illustrated) |
|
- | |||||
| 8A | 3001725 | Spacer-dial Plate (non-illustrated) |
|
- |
