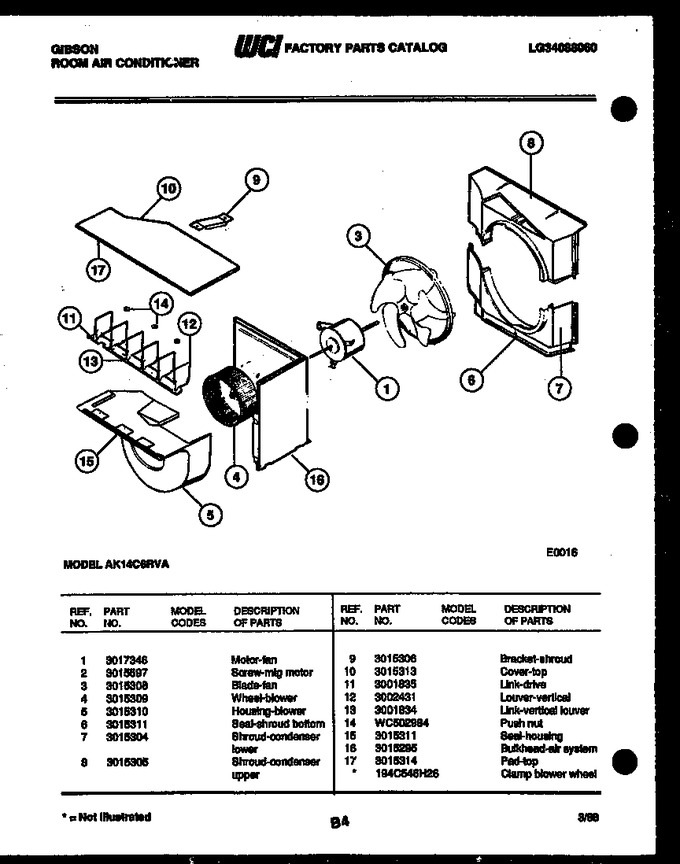

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017346 | Motor - Fan |
|
- | |||||
| 2 | 3015597 | Screw-mtg Motor |
|
- | |||||
| 3 | 3015308 | Blade-fan |
|
- | |||||
| 4 | 3015309 | Wheel-blower |
|
- | |||||
| 5 | 3015310 | Housing-blower |
|
- | |||||
| 6 | 3015311 | Seal Shroud Bottom |
|
- | |||||
| 7 | 3015304 | Shroud-condenser Lower |
|
- | |||||
| 8 | 3015305 | Shroud-condenser Upper |
|
- | |||||
| 9 | 3015306 | Bracket-shroud |
|
- | |||||
| 10 | 3015313 | Cover-top |
|
- | |||||
| 11 | 3001835 | Link-drive |
|
- | |||||
| 12 | 3002431 | Louver-vertical |
|
- | |||||
| 13 | 3001834 | Link-vertical Louver |
|
- | |||||
| 14 | WC502984 | Push Nut |
|
- | |||||
| 15 | 3015311 | Seal-housing |
|
- | |||||
| 16 | 3015295 | Bulkhead - Air System |
|
- | |||||
| 17 | 3015314 | Pad-top |
|
- | |||||
| *77467 | 194C546H26 | Clamp-blower Wheel |
|
- |
